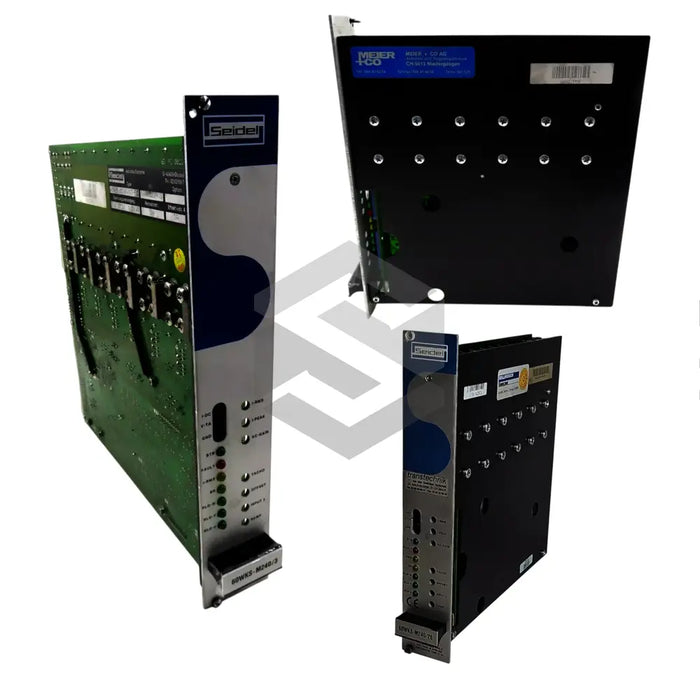

series image of 60WKS-CE240/3PB

60WKS-CE240/3PB

by Kollmorgen
$3,333.98 - $3,333.98
$3,333.98
$3,333.98 - $3,333.98
$3,333.98
In Stock, Ships 3 - 5 Days
Built by Kollmorgen, a leader in industrial automation equipment, the 60WKS-CE240/3PB is a top-of-the-line servo amplifier. Designed to enhance the control of Kollmorgen’s brushless synchronous motors, this device is an essential electrical unit within industrial machinery. Running on a isolated three-phase power supply, it can operate within a switchgear cabinet and handle load up to 0.5 kVA with 3A of rated current output. The servo amplifier can reach peak output current levels of 7.5A, offering pulse power of 5.4kW. Applicable for any area up to an elevation of 1000 meters, this device boasts both natural and forced convection cooling methods. It offers RLG, Tacho monitoring, undervoltage and overvoltage protection, and continuous monitoring of power output transistor temperature. Further protection features include short circuit protection and fuses for DC-link and auxiliary supply. Equipped with LEDs for different operation states, the device also has limit switch inputs, enable input, and rotor position input.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Product Type: Servo Amplifier
  • Model: 60WKS-CE240/3PB
  • Input: Three-phase connection
  • Enclosure: Closed steel switchgear cabinet
  • Load: 0.5 kVA at rated current
  • Output Current: 3 A for 4-Q operation
  • Peak Current: 7.5 A
  • Pulse Power: 5.4 kW
  • Elevation: Up to 1000 meter above sea level
  • Installation: Vertically in a switchgear cabinet
  • Cooling: Natural and forced convection
  • Monitoring: RLG and Tacho
  • M protection: Undervoltage and overvoltage protection
  • Temperature Monitoring: Power output transistors
  • Auxiliary Supply: 15 V, short circuit protected
  • Fuses: DC-link and auxiliary supply
  • Protection: Short circuit/earth fault at motor terminals
  • LEDs: Different Operating states
  • Auxiliary Voltages: Generated from DC link voltage
  • Inputs: Limit switch and enable
  • Rotor Position Input: Yes
