Shop Indramat PPC Collection
-
Original price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a QuoteR911309368
Bosch Rexroth IndramatThe R911309368 (PPC-R22.1N-T-Q2-P2-NN-FW) is a highly efficient CNC module manufactured by the leading industry name, Bosch Rexroth Indramat. It em...
View full detailsOriginal price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a Quote -
Original price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a Quote1070170289
Bosch Rexroth IndramatThe Bosch Rexroth Indramat's 1070170289 (PPC-R22.1N-T-Q1-V2-NN-FW) is an autonomous motion and logic control system that caters to industrial appli...
View full detailsOriginal price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a Quote -
Original price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a QuoteR911170779
Bosch Rexroth IndramatThe R911170779 (PPC-R22.1N-T-Q1-P2-N1-FW), a reputable product by Bosch Rexroth Indramat, is top-tier in the field of industrial power equipment. B...
View full detailsOriginal price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a Quote -
Original price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a QuoteR911310248
Bosch Rexroth IndramatThe Bosch Rexroth R911310248 (PPC-R22.1N-T-Q1-P1-P2-FW) is a standalone, multi-axis motion and logic control system from the Rexroth Indramat serie...
View full detailsOriginal price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a Quote -
Original price $7,864.56 - Original price $7,864.56Original price$7,864.56$7,864.56 - $7,864.56Current price $7,864.561070170296
Bosch Rexroth IndramatAvailable, Shipping VariesThe 1070170296 (PPC-R22.1N-T-Q1-P1-NN-FW) control unit, manufactured by Bosch Rexroth Indramat, boasts assured operational reliability and safety. ...
View full detailsOriginal price $7,864.56 - Original price $7,864.56Original price$7,864.56$7,864.56 - $7,864.56Current price $7,864.56

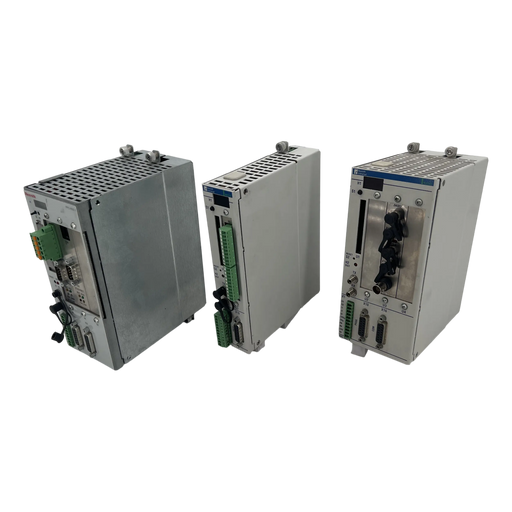

Indramat PPC Controllers
The PPC-R is a stand-alone, multi-axis motion and logic controller with a Reco 02 form factor. It is used with Bosch Rexroth motion controls, PLCs, and I/O modules, all of which share the LocalReco 02 backplane bus for data exchange. The PPC-R is recommended to be used with VisualMotion motion/logic control, and supports Rexroth IndraDrive, Diаx 04, and EcoDrive 03 digital servo drives. Communication between the control and servo drives is through the SERCOS interface, the standard for real-time digital servo drive communication.
Similarly, the PPC-P11.1 is a PC-based stand-alone multi-axis motion and logic control, which also uses the SERCOS interface for communication with the same Rexroth servo drives. The PPC-P11.1 operates with GMP 10 firmware and functions as a complete motion and logic control solution. Additionally, VisualMotion 10, which is presumably a software or firmware solution, supports both the PPC-R22.1 and PPC-P11.1 hardware when they are running their respective firmware versions, GPP 10, and GMP 10.
PPC-R Control System Parts
- Rexroth PPC-R22.1 features three expansion slots and offers an optional onboard EtherNet connection.
- The onboard EtherNet supports both the standard TCP/IP and EtherNet/IP slave fieldbus communication protocols.
- Rexroth Reco 02 I/O modules are available for both local and SERCOS applications.
- Rexroth Inline I/O modules provide integration capabilities for various systems.
- Diаx 04 and EcoDrive 03 I/O modules are also part of the hardware offerings.
- The Rexroth VisualMotion Toolkit (VMT) is software for motion control programming, parameterization, system diagnostics, and motion control management.
- Direct Data Exchange (DDE) and OPC servers communicate with Windows programs and the control system via the SCP protocol, leveraging the SIS model for secure operations.
- A single control unit can connect up to 40 intelligent digital drives over SERCOS interface, enhancing system capacity and performance.
- This includes the Rexroth IndraDrive with MPx02 firmware, which comes with ELS05 support, for drives and motors.
- Rexroth Diаx 04 is compatible with SSE03 or ELS05 firmware for drives and motors.
- Rexroth EcoDrive 03 works with SMT02, SGP01, SGP03, or SGP20 firmware, enhancing the operation of drives and motors.
- Rexroth EcoDrive Cs utilizes the MPG01 firmware for the operation of drives and motors.
- Human-Machine Interface (HMI) options include BТC06, BТV04, BТV05, and BТV06 interfaces, providing versatile user interaction capabilities.
Optional Interfaces:
Fieldbus Slave Interfaces:
- Profibus-DP, DeviceNet, ControlNet, EtherNet/IP (32 words max.)
- Interbus (16 words max.)
Fieldbus Master Interfaces:
- Profibus-DP (32 words max.)
- DeviceNet (32 words max.)
Additional Interfaces:
- Option Card Programmable Limit Switch (16 or 32 outputs)
- Link Ring for master/slave interfacing of VisualMotion controls
PPC-R Type Code
- Product:
- PPC (PPC)
- Housing Design:
- For RECO unit (R)
- Line:
- 22 (22)
- Design:
- 1 (1)
- Memory Expansion Module:
- Not equipped (N)
- Other Design:
- None (N)
- Ethernet (T)
- Configuration:
- Refer to note 1 for possible configuration details
- Firmware:
- Must be ordered as a separate subposition (FW)
PPC-P Parts
Here's a reorganized bullet point list based on the content from the image you provided:
- The VisualMotion PPC-P11.1 control system includes:
- Rexroth PPC-P11.1 control with GMP 10 firmware.
- Optional Rexroth SercosReco 02 I/O modules for expanded functionality.
- Rexroth Inline I/O modules for system integration.
- Diаx 04 and EcoDrive 03 I/O modules for diverse control options.
- Rexroth VisualMotion Toolkit (VMT), which offers software solutions for motion control programming, parameterization, system diagnostics, and management.
- Communication features:
- Direct Data Exchange (DDE) and OPC servers that interface with Windows programs via the SCP protocol, secured by the SIS protocol.
- Drive connectivity:
- Capacity for up to 40 intelligent digital drives to connect to one control over SERCOS.
- Includes Rexroth IndraDrive with MPx02 firmware and ELS05 support.
- Rexroth Diаx 04 compatible with SSE03 or ELS05 firmware.
- Rexroth EcoDrive 03 working with SMT02, SGP01, SGP03, or SGP20 firmware.
- Rexroth EcoDrive Cs operating with MPG01 firmware.
- HMI options available:
- Interfaces BTC06, BTV04, BTV05, and BTV06 for user interaction.
Optional Interfaces:
- A second Serial interface for additional communication capabilities.
- Up to two Option Card Programmable Limit Switches, each with 16 outputs, for enhanced control options.
- A Link Ring for master/slave interfacing of VisualMotion controls, allowing for synchronized operations.
- A Master Encoder Card (MEC) for precise position tracking and feedback.
PPC-P Type Code
- Product:
- PPC (PPC)
- Housing Design:
- For industrial PC (P)
- Line:
- 11 (11)
- Design:
- 1 (1)
- Memory Expansion:
- None (N)
- Other Design:
- None (N)
- Configuration Codes:
- NN-NN-NN
- N1-NN-NN
- N1-N2-NN
- N1-Q1-NN
- Q1-NN-NN
- Firmware:
- Must be ordered as a separate item (FW)
