Indramat CDB

Shop Indramat CDB Collection

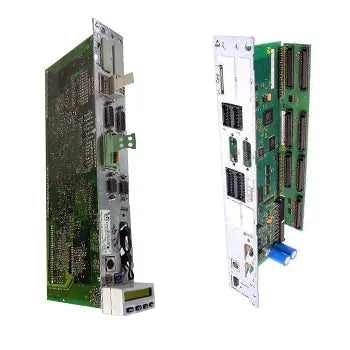

  • series image of CSH01.SE-ENS-NNN-NNN-S2-S-NN-FW
    $2,060.73 - $2,060.73
    $2,060.73
    $2,060.73 - $2,060.73
    $2,060.73

    CSH01.SE-ENS-NNN-NNN-S2-S-NN-FW

    Bosch Rexroth Indramat
    In Stock, Ships Fast

    The CSH01.SE-ENS-NNN-NNN-S2-S-NN-FW control unit features a Sercos II communication interface, 1.1 A max digital I/O current draw, two +/-10 V anal...

    View full details
    $2,060.73 - $2,060.73
    $2,060.73
    $2,060.73 - $2,060.73
    $2,060.73
  • series image of CDB01.1C-PB-ENS-ENS-NNN-S2-S-NN-FW
    $2,997.00 - $2,997.00
    $2,997.00
    $2,997.00 - $2,997.00
    $2,997.00

    CDB01.1C-PB-ENS-ENS-NNN-S2-S-NN-FW

    Bosch Rexroth Indramat
    In Stock, Ships Fast

    The CDB01.1C-PB-ENS-ENS-NNN-S2-S-NN-FW is a control section by Bosch Rexroth Indramat in the CDB Control Units series, designed for motor drive app...

    View full details
    $2,997.00 - $2,997.00
    $2,997.00
    $2,997.00 - $2,997.00
    $2,997.00
  • series image of CDB01.1C-SE-EN1-NNN-MA1-S1-S-NN-FW
    $1,799.97 - $1,799.97
    $1,799.97
    $1,799.97 - $1,799.97
    $1,799.97

    CDB01.1C-SE-EN1-NNN-MA1-S1-S-NN-FW

    Bosch Rexroth Indramat
    In Stock, Ships Fast

    The Bosch Rexroth Indramat CDB01.1C-SE-EN1-NNN-MA1-S1-S-NN-FW from the CDB Control Units delivers efficient performance with a SERCOS Interface for...

    View full details
    $1,799.97 - $1,799.97
    $1,799.97
    $1,799.97 - $1,799.97
    $1,799.97
  • series image of CDB01.1 C-PB-NNN-NNN-NNN-NN-S-NN-FW
    $10,589.66 - $10,589.66
    $10,589.66
    $10,589.66 - $10,589.66
    $10,589.66

    CDB01.1 C-PB-NNN-NNN-NNN-NN-S-NN-FW

    Bosch Rexroth Indramat
    Available, Shipping Varies

    The Bosch Rexroth Indramat CDB01.1 C-PB-NNN-NNN-NNN-NN-S-NN-FW from the CDB Control Units series is a compact control section with a Standard contr...

    View full details
    $10,589.66 - $10,589.66
    $10,589.66
    $10,589.66 - $10,589.66
    $10,589.66
  • series image of R911311869
    $3,599.99 - $3,599.99
    $3,599.99
    $3,599.99 - $3,599.99
    $3,599.99

    R911311869

    Bosch Rexroth Indramat
    In Stock, Ships 1 - 3 Days

    The R911311869 (CDB01.1C-SE-EN2-EN2-ENS-ENS-S1-S-NN-FW) is a double-axis control segment manufactured by Bosch Rexroth Indramat. It requires a 24V ...

    View full details
    $3,599.99 - $3,599.99
    $3,599.99
    $3,599.99 - $3,599.99
    $3,599.99
Shop collection

Indramat CDB Controllers

The CDB series controllers provide various options for master communications and encoders, allowing for versatile integration into different industrial networks and systems. Master communication options include MultiEthernet (ET), PROFIBUS (PB), and two types of SERCOS interfaces, SERCOS III (S3) and a standard SERCOS interface (SE), catering to a wide array of network protocols. On the encoder side, Option 1 (X4.1) presents a choice between an encoder for High-Speed Fiber (HSF) or Resolving Sensor (RSF) marked as EN1, an encoder that supports EnDat 2.1 / 1Vpp / TTL protocols labeled as EN2, and an encoder for IndraDyn / Hyperface® / 1 Vpp / TTL identified as ENS. There's also an option for the controller to come without an encoder, designated as NNN. These configurations allow the controllers to be tailored to specific applications, offering high compatibility and precision for motion control systems.

CDB Type Code Breakdown

CDB01

- Product: CDB = CDB
- Line: 1 = 01
- Design: 1 = 1
- Configuration option: Configurable = C
- Master communication:
- MultiEthernet = ET
- PROFIBUS = PB
- SERCOS III = S3
- SERCOS interface = SE
- Option 1 (X4.1):
- Encoder HSF/RSF = EN1
- Encoder EnDat 2.1 / 1Vpp / TTL = EN2
- Encoder IndraDyn / Hyperface® / 1 Vpp / TTL = ENS
- Not equipped = NNN
- Option 2 (X4.2):
- Encoder HSF/RSF = EN1
- Encoder EnDat 2.1 / 1Vpp / TTL = EN2
- Encoder IndraDyn / Hyperface® / 1 Vpp / TTL = ENS
- Not equipped = NNN
- Option 3 (X8.1):
- Encoder HSF/RSF = EN1
- Encoder EnDat 2.1 / 1Vpp / TTL = EN2
- Encoder IndraDyn / Hyperface® / 1 Vpp / TTL = ENS
- Analog I/O extension = MA1
- Encoder emulator = MEM
- Not equipped = NNN

CDB02

- Product: CDB = Double-axis control section BASIC
- Series: 02 = 02
- Design: 1 = 1
- Interface equipment: B = Extended scope
- Communication: ET = Multi-Ethernet
- Interface 1 (axis 1): EC = Multi-encoder interface
- Interface 2 (axis 2): EC = Multi-encoder interface
- Interface 3:
- NN = Not equipped
- PB = PROFIBUS
- EC = Multi-encoder interface
- EM = Encoder emulation
- Interface 4 (safety technology axis 1):
- NN = Not equipped
- L3 = STO (Safe Torque Off)
- S4 = Safe Motion 2
- S5 = Safe Motion 2
- SB = Safe Motion Bus 2
- Interface 5 (safety technology axis 2):
- NN = Not equipped
- L3 = STO (Safe Torque Off)
- S4 = Safe Motion 4
- S5 = Safe Motion 2
- SB = Safe Motion Bus 2
