Indramat VCH

Indramat VCH

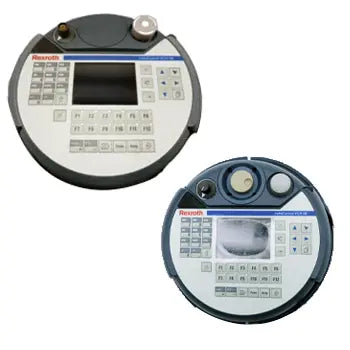

The Indramat VCH Operator Panels are a series of industrial hand control devices designed by Bosch Rexroth Indramat. These panels, which are mobile and equipped with Windows CE electronics, serve as interfaces for the operation and visualization of various systems, such as IndraLogic, Indramotion MLC, and MTX. They are tailored for use with machinery, extended handling systems, and assembly lines.

A significant feature of the VCH Operator Panels is their durability, as they are built to function in tough industrial environments. This is reflected in their use of Ethernet interfaces and FLASH and RAM databases, which are more robust and reliable than traditional floppy disks in such settings.

The VCH series emphasizes flexibility, with optional elements that can be adapted to specific operational requirements. For example, the VCH08.1EKB-064ET-A1D-064-ES-E3-PW model is notable for its controller-based visualization capabilities, compatibility with the VI-composer development tool for efficient visualization, and ergonomic design for user-friendly operation.

Additionally, these panels often come with a set of memory and connectivity features, such as 64 MB of user memory, a standard Ethernet interface, a USB option, and a 24 VDC power supply. The design typically includes a robust hand control device with safety features like a multi-step enabling button and emergency stop functions. They are also portable, which allows for flexible use across different sites within a facility.

Common applications of these panels are in areas like handling and assembly systems, machine tools, and food processing machines, showcasing their versatility across various industrial sectors.

VCH08 Technical Specs

CPU PXA 270/416 MHz
Memory 64 MB
Use / application
Flash size 64 MB
Type STN
Size 9.7 cm (3.8")
Colors/gray scales 5
Gray tones
Resolution 320 x 240
Power Supply 24 V DC
Umin ... Umax 19 V DC ... 30 V DC
Power Consumption 4,8 W
Protection Category IP65
Weight 1,2 kg
Environmental Conditions
Permissible Temperature (operation) +5 °C ... +45 °C
Permissible Humidity (operation) 0% to 95%, EN 61311-2
Visualization VI-Composer
Connecting Cable 0,5 / 8 m
