Indramat VEP

Indramat VEP

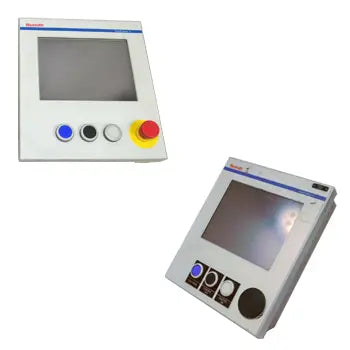

The line of VEP Panels from Indramat are available in different variations, each providing different specifications. The VEP 30.1CC boasts an 8.4" TFT display, providing clear visuals for operational insights, complemented by touch screen functionality for intuitive interaction. Unlike its counterparts, this model foregoes physical keys, streamlining its interface for efficient operation. Moving up the series, the VEP 40.1CE enhances visual experience with a larger 12.1" TFT display, maintaining touch screen capabilities while eliminating physical keys, as showcased in its front panel. Meanwhile, the VEP 50.1CH stands out with its expansive 15" TFT display, ensuring comprehensive visualization of pneumatic processes, also featuring touch screen functionality and foregoing physical keys for a sleek interface. Each model caters to distinct needs, offering varying display sizes while adhering to the absence of physical keys, ensuring seamless integration and operation within industrial settings.

VEP Type Codes

VEP30

- Product: VEP
- Line 30
- Design 1
- Front plate and display options:
- Rexroth design, 8.4", Touch-Screen (suitable for food industry) = CC
- 8.4", Touch-Screen, housing with 5 keys = CG
- Bosch: 8.4", Touch-Screen (suitable for food industry) = CD
- Additional option: none = N
- Memory capacity (RAM) options:
- 64 MB = 064
- 128 MB = 128
- Interface: without special interface = NN
- System configuration: Geode, min. 300 MHz = G3
- Supply voltage: DC 24 V = D
- Compact Flash size options:
- 64 MB = 064
- 128 MB = 128
- Example Configuration: P1-NN

VEP40

- Product VEP
- Line 40
- Design 1
- Front plate and display options:
- Rexroth design, 12.1", Touch-Screen (suitable for industry food) = CE
- Customized design, 12.1", Touch-Screen = CF
- Additional option:
- none = N
- Short time UPS = U
- Memory capacity (RAM):
- 64 MB = 064
- Interface options:
- NN-NN, not equipped = NN
- P1-NN = NA
- System configuration:
- Geode, min. 300 MHz = G3
- Connecting voltage:
- DC 24 V = D
- Compact Flash size options:
- 64 MB = 064
- not equipped = NN

VEP50

- Product VEP
- Line 50
- Design 1
- Front plate and display: Rexroth design, 15", Touch-Screen (suitable for industry food) = CH
- Additional option: Short time UPS = U
- Memory capacity (RAM) options:
- 64 MB = 064
- 128 MB = 128
- Interface options:
- NN-NN, not equipped = NN
- P1-NN = NA
- System configuration: Geode, min. 300 MHz = G3
- Connecting voltage: DC 24 V = D
- Compact Flash size: 64 MB = 064

Ambient Conditions

In operation Storage/Transport
Max. surrounding air temperature +5 ... +45 °C
Under certain conditions it is necessary to use a fan available as accessories. These conditions are still to define.
-20 °C to +60 °C
Max. temperature gradient Temporal temperature changes up to 3 °C per minute Not defined
Relative humidity Climatic class 3K3 according to EN 60721, condensation not allowed. Climatic class 3K3 according to EN 60721, condensation not allowed.
Air pressure Up to 2,000 m above MSL according to DIN 60204
Mechanical strength Max. vibration:
Frequency range: 10...150 Hz
Excursion: 0.075 mm at 10 ... 57 Hz
Acceleration: 1 g at 57...150 Hz
According to EN 60068-2-6
Max. shock:
15 g according to DIN IEC 68-2-27, no disturbance of the function
