HCT Series
-
Original price $15,270.82 - Original price $15,270.82Original price$15,270.82$15,270.82 - $15,270.82Current price $15,270.82R911326231

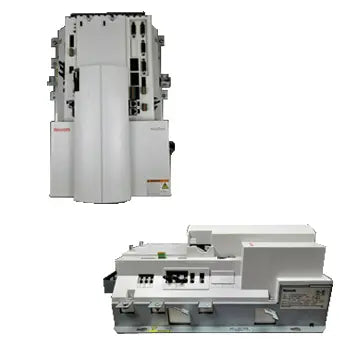

Bosch Rexroth IndramatAvailable, Shipping VariesThe R911326231 (HCT02.1E-W0020-A-03-B-L8-2N-NN-NN-NN-FW), a renowned drive controller from the HCT02 series by Bosch Rexroth Indramat, supports the...
View full detailsOriginal price $15,270.82 - Original price $15,270.82Original price$15,270.82$15,270.82 - $15,270.82Current price $15,270.82 -
Original price $5,656.12 - Original price $5,656.12Original price$5,656.12$5,656.12 - $5,656.12Current price $5,656.12R911329657
Bosch Rexroth IndramatAvailable, Shipping VariesThe R911329657 (HCT02.1E-W0025-A-03-B-L8-2S-NN-NN-NN-FW) is a proficient drive controller developed by Bosch Rexroth Indramat as part of the HCT02 ...
View full detailsOriginal price $5,656.12 - Original price $5,656.12Original price$5,656.12$5,656.12 - $5,656.12Current price $5,656.12 -
Original price $15,270.82 - Original price $15,270.82Original price$15,270.82$15,270.82 - $15,270.82Current price $15,270.82HCT02.1E-W0020-A-03-B-L8-2N-NN-NN-NN-FW
Bosch Rexroth IndramatAvailable, Shipping VariesProduced by Bosch Rexroth Indramat, the HCT02.1E-W0020-A-03-B-L8-2N-NN-NN-NN-FW is a part of their HCT02 series multi-axis converter drive controll...
View full detailsOriginal price $15,270.82 - Original price $15,270.82Original price$15,270.82$15,270.82 - $15,270.82Current price $15,270.82
Indramat HCT
The HCT02 is a type of compact multi-axis converter that falls under the Rexroth IndraDrive C product range. This device is specifically designed to control and operate a single powerful axis along with two additional auxiliary axes. The model HCT02.1E-W0025-A-03--- is tailored for controlling up to three three-phase a.c. motors, which can be either asynchronous or synchronous motors. This functionality makes the HCT02 suitable for complex automation tasks that require precise and variable motor control.
HCT Dimensions
- Mass: 11.70 kg
- Device height (UL¹): 455 mm
- Device depth (UL²): 191 mm
- Device width (UL³): 320 mm
- Insulation resistance at DC 500 V: 8.00 Mohm
HCT Type Code Breakdown
- Product: HCT
- Line: 02
- Design: 1
- Power supply: Feeding = E
- Cooling mode: Air, internal (through integrated blower) = W
- Rated power: e.g., 25 kW = 0025
- Degree of protection: IP 20 = A
- Mains connecting voltage: 3 x AC 200...500 V ±10% = 03
- Control section design: Basic = B
- Master communication: Embedded PC, LX 800 = L8
- Interfaces:
- Encoder: 4
- Probe: 4
- Digital Inputs: 32
- Digital Outputs: 16
- SERCOS III master: X
- Code: 2S
- Option 1: Without = NN, DEA40.1 = D1
- Option 2: Without = NN, DEA40.1 = D1
- Other design: Without = NN
- Firmware: Denotes that firmware must be ordered as a separate subposition = FW
HCT Appropriate Use
HCT drives are versatile components suitable for a variety of industrial applications. These drives are typically employed in systems that require precise handling and mounting, making them an ideal choice for automation in packaging and food machinery, as well as printing and paper processing machines. They are also commonly used in machine tools which demand high levels of accuracy and control. For optimal performance and safety, it is essential that these drive controllers are operated according to the assembly and installation conditions specified in the technical documentation. This includes adhering to the recommended position of use, as well as ensuring that ambient conditions such as temperature, degree of protection, humidity, and electromagnetic compatibility (EMC) are within the parameters outlined for safe and effective operation.
Transport & Storage Conditions Conditions
Transport
| Description | Symbol | Unit | Value for Supply Units and Drive Controllers | Value for Motors |
|---|---|---|---|---|
| Temperature range | Tatran | °C | -25 ... +70 | -20 ... +80 |
| Relative humidity | % | 5 ... 95 | 5 ... 95 | |
| Absolute humidity | g/m³ | 1 ... 60 | 1 ... 60 | |
| Climatic category (IEC 721) | 2K3 | 2K3 | ||
| Moisture condensation | Not allowed | Not allowed | ||
| Icing | Not allowed | Not allowed |
Storage
| Description | Symbol | Unit | Value for Supply Units and Drive Controllers | Value for Motors |
|---|---|---|---|---|
| Temperature range | Ta_store | °C | -25 ... +55 | -20 ... +60 |
| Relative humidity | % | 5 ... 95 | 5 ... 95 | |
| Absolute humidity | g/m³ | 1 ... 29 | 1 ... 29 | |
| Climatic category (IEC 721) | 1K3 | 1K3 | ||
| Moisture condensation | Not allowed | Not allowed | ||
| Icing | Not allowed | Not allowed |
Installation
| Description | Symbol | Unit | Value |
|---|---|---|---|
| Conductive dirt contamination | Not allowed | ||
| Protection degree of the device (IEC 60529) | IP20 | ||
| Use within the scope of CSA / UL | For use in NFPA 79 applications only. | ||
| Temperature during storage | See index entry "Storage → Of the components" | ||
| Temperature during transport | See index entry "Transport → Of the components" | ||
| Allowed mounting position | G1 | ||
| Definition of mounting positions: See index entry "Mounting positions" | |||
| Installation altitude | henn | m | 1000 |
| Ambient temperature range | Ta_work | °C | 0 ... 40 |
