IndraDrive FEC Frequency Converters

Request A Quote

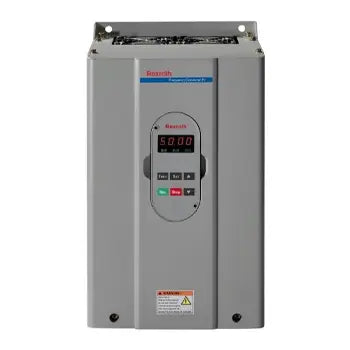

Indradrive FEC

The Indramat FEC, also known as the Rexroth Frequency Converter Fe, is presented as a cost-effective solution designed for U/f operation within harsh environments. It caters to a wide range of applications with an output range from 0.75 kW to 160 kW. This converter stands out for its integrated brake chopper for units under 15 kW, high overcurrent carrying capacity, and a broad performance spectrum. It also features multiple self-protection measures, enhancing its reliability, and it is backed by global availability and service, ensuring support and distribution worldwide. Technical specifications include a variety of continuous rated current options, starting as low as 2.5 A for the 0.75 kW capacity model and going up to 17 A for the 7.5 kW model, demonstrating the range's adaptability to different power requirements.

Technical Data

The FEC Frequency Converters come in various models. Please refer to official documentation for the in-depth specifications for each model.

Performance data FECG02.1-0K75---SP FECG02.1-1K50---SP FECG02.1-2K20---SP FECG02.1-4K00---SP FEC(G/P)02.1-5K50---SP FEC(G/P)02.1-7K50---SP
Rated capacity [kW] 0.75 1.5 2.2 4 5.5 7.5
Continuous rated current [A] 2.5 4 6 10 13 17
Motor rated voltage Three phase, 0 V ... mains voltage
Output voltage 0 V to mains voltage
Output frequency 0 ... 599 Hz
Mains connection voltage 3 AC 380 ... 480 V (-15% / +10%)
Frequency 50 ... 60 Hz (±5%)
Overload capacity G-type: 200% \(\text{In}\) for 1 s or 150% \(\text{In}\) for 60 s P-type: 120% \(\text{In}\) for 60 s or 105% \(\text{In}\) for 60 min

Ambient Conditions

Environmental conditions
Permissible temperature (operation) -10 ... +40 °C
Permissible humidity (operation) < 90% (no condensation)
Max. operating height 1000 m (> 1000 m Derating 1% of the output power pro 100 m)
Protection category IP20
