CSB Series
-
Original price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a QuoteCSB01.1N-ENS-NNN-NN-S-NN-FW
Bosch Rexroth IndramatThe CSB01.1N-ENS-NNN-NN-S-NN-FW control section supports switching frequencies of 2, 4, and 8 kHz and offers configurable axis setup with encoder o...
View full detailsOriginal price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a Quote -

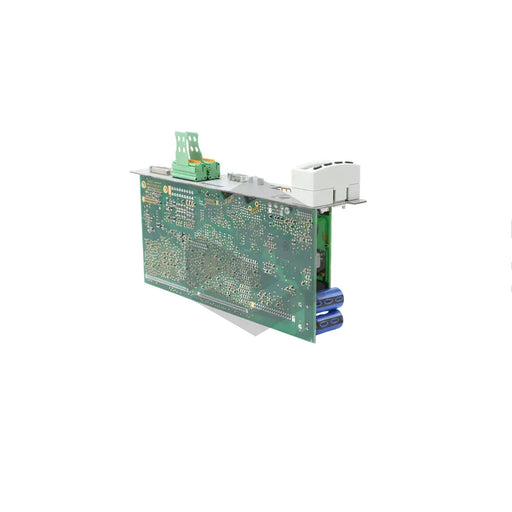

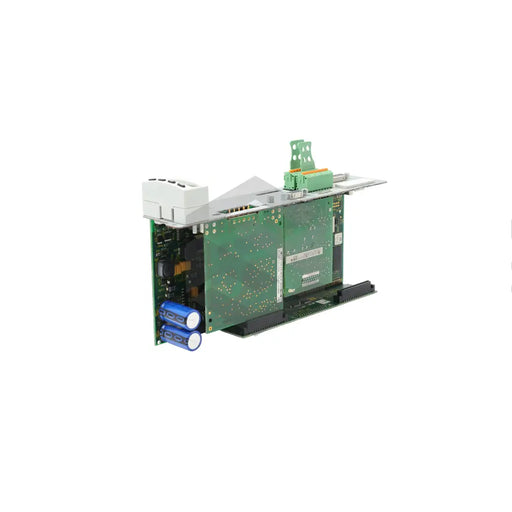

Original price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a QuoteCSB01.1C-C0-ENS-NNN-L1-S-NN-FW
Bosch Rexroth IndramatThe CSB01.1C-C0-ENS-NNN-L1-S-NN-FW control section is configurable with safety technology and supports CANopen/DeviceNet master communication. Part...
View full detailsOriginal price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a Quote -
Original price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a QuoteCSB01.1N-PN-ENS-NNN-NN-S-NN-FW
Bosch Rexroth IndramatThe CSB01.1N-PN-ENS-NNN-NN-S-NN-FW from Bosch Rexroth Indramat has an encoder and integrated power. Part of the CSB Drive Controllers, it offers fi...
View full detailsOriginal price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a Quote -

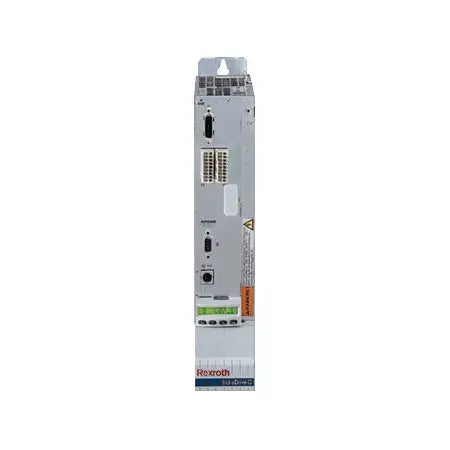

Original price $4,899.85 - Original price $7,968.74Original price$4,899.85 - $7,968.74$4,899.85 - $7,968.74Current price $4,899.85CSB01.1C-SE-ENS-MA1-NN-NN-FW
Bosch Rexroth IndramatIn Stock, Ships FastThe Bosch Rexroth Indramat CSB01.1C-SE-ENS-MA1-NN-NN-FW control section from the CSB Drive Controllers series is an advanced single axis solution d...
View full detailsOriginal price $4,899.85 - Original price $7,968.74Original price$4,899.85 - $7,968.74$4,899.85 - $7,968.74Current price $4,899.85 -

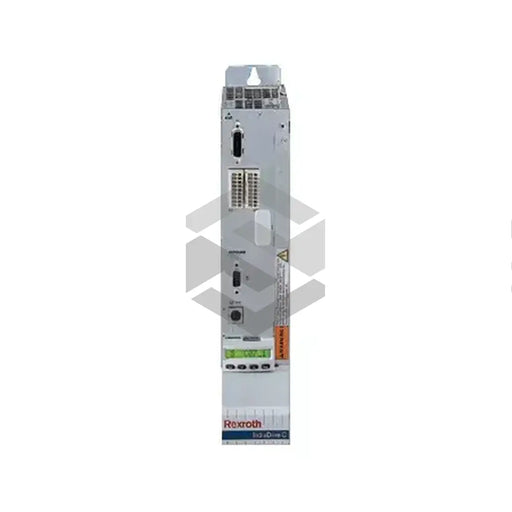

Original price $1,924.62 - Original price $3,402.95Original price$1,924.62 - $3,402.95$1,924.62 - $3,402.95Current price $1,924.62CSB01.1C-S3-ENS-NN-NN-S-NN-FW
Bosch Rexroth IndramatIn Stock, Ships FastThe CSB01.1C-S3-ENS-NN-NN-S-NN-FW control section from Bosch Rexroth Indramat is a precise single axis controller within the CSB Drive Controllers ...
View full detailsOriginal price $1,924.62 - Original price $3,402.95Original price$1,924.62 - $3,402.95$1,924.62 - $3,402.95Current price $1,924.62
Indramat CSB
The CSB Drive Controller from Indramat is a part of the Control Section in a Drive System. These controllers fall under the "BASIC" category in the Control Section Range. Options include Single-Axis control; basic scope (CSB02.1A), Single-Axis Control; extended scope (CSB02.1B), Single-Axis Control for universal inverter HMU05; extended scope (CSB02.5B).
Power sections that are compatible for use with CSB02.1: HCS02, HCS03, HCS04, HMS01, and HMS02; CSB02.5 is compatible with HMU05.
CSB Type Code Breakdown
Below is a breakdown of the various options available for the CSB drive controllers, and their respective codes.
| Specification Category | Details |
|---|---|
| Product | CSB = Single-axis control section BASIC |
| Series | 02 = 02 |
| Design | 1 = 1 |
| Interface Equipment | A = Basic scope B = Extended scope |
| Communication | ET = Multi-Ethernet |
| Interface 1 | EC = Multi-encoder interface |
| Interface 2 | NN = Not equipped PB = PROFIBUS CN = CANopen EC = Multi-encoder interface EM = Encoder emulation |
| Interface 3 (safety technology) | NN = Not equipped L3 = STO (Safe Torque Off) S4 = Safe Motion 2 S5 = Safe Motion 2 SB = Safe Motion Bus |
| Interface 4 | NN = Not equipped EC = Multi-encoder interface EM = Encoder emulation DA = Digital/analog I/O extension |
CSB Specs
CSB Control Section Types
- CSB01.1N-FC (BASIC OPEN LOOP): This type is a non-configurable single-axis control designed for basic open-loop applications.
- CSB01.1N-SE (BASIC SERCOS): This variant is a non-configurable single-axis control for applications using the SERCOS interface.
- CSB01.1N-PB (BASIC PROFIBUS): A non-configurable single-axis control tailored for integration with PROFIBUS communication systems.
- CSB01.1N-AN (BASIC Analog): This type is a non-configurable single-axis control designed for basic analog applications.
Each of these types is catered to specific communication protocols and control requirements, offering a variety of options for system integration while maintaining a focus on single-axis control. The non-configurable nature indicates that they are specialized for their respective communication interfaces without the need for additional configuration.
CSB Type Specs
| Feature/Specification | CSB01.1N-FC | CSB01.1N-SE | CSB01.1N-PB | CSB01.1N-AN | CSB01.1C |
|---|---|---|---|---|---|
| configurable | no | no | no | no | yes |
| configuration slots safety technology | 0 | 1 | 1 | 1 | 1 |
| operation with comfort control panel VCP01.2 | yes | no | no | no | no |
| serial interface RS232 | 1 | 1 | 1 | 1 | 1 |
| number of dig. inputs, thereof probe type 2 | 8 | 8 | 8 | 9 | 8 |
| probe type 3 | 0 | 1 | 1 | 0 | 1 |
| number of dig. outputs | 0 | 3 | 3 | 4 | 3 |
| number of analog inputs | 2 voltage; 2 current | 0 | 0 | 2 voltage | 0 |
| number of analog outputs | 2 | 0 | 0 | 0 | 0 |
| number of relay contacts | 1 N/O; 2 changeover switches | 1 N/O | 1 N/O | 1 N/O | 1 N/O |
Precautions
The provided text warns of the dangers associated with high housing voltage and high leakage current, emphasizing the risk of electric shock which can lead to injury or death. To mitigate these risks, it is crucial to ground or connect the electric drive and control system components to the equipment grounding conductor before powering on and before commissioning. Additionally, a permanent connection of the equipment grounding conductor to the main power supply must be maintained at all times, particularly because the leakage current may exceed 3.5 mA. For the grounding connection, it is required to use a conductor with at least the minimum cross-section specified in an accompanying table. If the outer conductor's cross-section is less than 10 mm² (8 AWG), there's an allowance to use two equipment grounding conductors instead, provided they each have the same cross-section as the outer conductors. This ensures that the system has a safe and adequate grounding connection to prevent electric shock.
