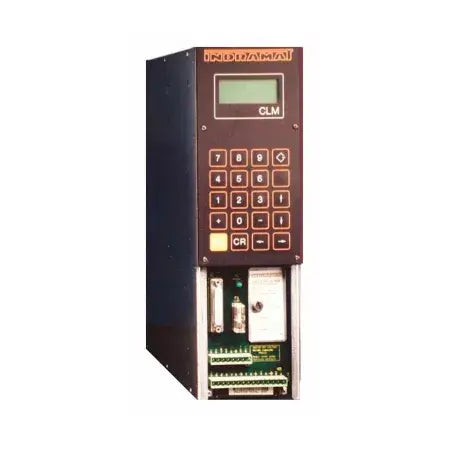

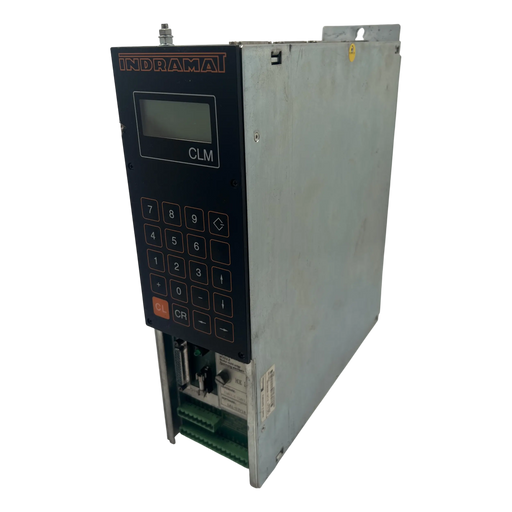

Indramat CLM

Indramat CLM

A few key specs of the Indramat CLM Controllers include:

- A 32-bit microprocessor for advanced computing capability.
- Includes 256KB of EPROM, which stores the main program designed solely for positioning control, without the need for complex programming by the user.
- Contains 128KB of RAM for storing user-defined settings, with a lithium backup battery to preserve data when powered off.
- Features 32 inputs and 32 outputs specifically for interfacing with the CLM/machine setup.

Type Code Breakdown

Below is a breakdown of the CLM Type Code Format, as well as the available options for the controller.

- Hardware Version Number:
- 1.0 and 1.1: Original Version
- 1.2: Two-Line Display
- 01.2: Includes ARK11 Memory Module and additional drive connectors
- 01.3: Four-Line Display

- Corresponding Software Type:
- A: Standard Two Axis
- M: Flying Cutoff
- R: Feed to Length (Single Axis CFS emulation)
- S: Sidecut Extrusion Cutoff
- Z: Rollfeed Dual Axis Feed to Length

- Hardware Options:
- 0: No Option
- E: Expansion I/O Board

- Number of Axes:
- 1: 1 Axis Flying Shear and Standard I/O
- 2: 2 Axis
- 4: 4 Axis

- Display:
- 0: Standard LCD Display
- 1: Backlit LCD Display

Technical Data

Dimensions Value Units
Height 15.35 in. (390 mm)
Width 4.13 in. (105 mm)
Depth 12.80 in. (325 mm)
Weight 14 lbs. (6 kg)
Feature Specification Details
Number of Axes Four use one, two, three or four
Position Feedback One Incremental or Absolute Encoder per Axis
Measuring Wheel Feedback Incremental Encoder only
Feed Length Resolution 0.001 inches (0.01 mm)

Ambient Conditions

The equipment operates with convection cooling and can function within an ambient temperature range of 41 to 113°F (5 to 45°C). It's designed for storage and transport in temperatures ranging from -22 to 185°F (-30 to 85°C). The maximum operating altitude without requiring additional cooling is 3,280 feet (1,000 meters), but it can operate at higher altitudes with proper cooling. The protection system is rated at IP 10, indicating an open frame module that's suitable for mounting in a control cabinet like NEMA 12.
