Shop Indramat TVR
-
Original price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a QuoteTVR3.1-W015
Bosch Rexroth IndramatThe TVR3.1-W015 is an AC Supply Module produced by Bosch Rexroth Indramat. Recognized as a key innovator in motion control systems, Bosch Rexroth's...
View full detailsOriginal price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a Quote -
Original price $11,755.05 - Original price $11,755.05Original price$11,755.05$11,755.05 - $11,755.05Current price $11,755.05R911264619
Bosch Rexroth IndramatAvailable, Shipping VariesThe R911264619 (TVR2.2-F030-03) is an advanced piece of motion-control equipment that originates from Bosch Rexroth Indramat. It's an essential com...
View full detailsOriginal price $11,755.05 - Original price $11,755.05Original price$11,755.05$11,755.05 - $11,755.05Current price $11,755.05 -

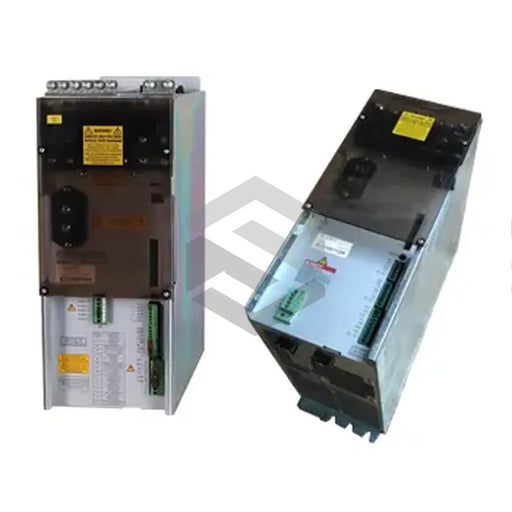

Original price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a QuoteR911257140
Bosch Rexroth IndramatThe R911257140 (TVR3.1-W015-03) is a notable product from Bosch Rexroth Indramat, a pioneer in the evolving field of motion control. This industry ...
View full detailsOriginal price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a Quote -
Original price $11,755.05 - Original price $11,755.05Original price$11,755.05$11,755.05 - $11,755.05Current price $11,755.05TVR2.2-F030-03
Bosch Rexroth IndramatAvailable, Shipping VariesThe product in focus is the TVR2.2-F030-03 AC Supply Module, expertly manufactured by Bosch Rexroth Indramat, a leader in the motion-control indust...
View full detailsOriginal price $11,755.05 - Original price $11,755.05Original price$11,755.05$11,755.05 - $11,755.05Current price $11,755.05 -
Original price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a QuoteTVR3.1-W015-03
Bosch Rexroth IndramatThe TVR 3.1-W015-03 represents a state-of-the-art servo drive system engineered by Indramat, a pioneer in motion control and automation solutions. ...
View full detailsOriginal price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a Quote
Indramat TVR
The TVR drives by Indramat function by rectifying three-phase mains AC into regulated DC bus voltage for motor power output. When operating as a generator, the TVR 3.1 acts as an inverter, returning energy to the mains. In case of power failure, or when power is switched off, energy generated by motor braking is dissipated by the TVR 3.1's bleeder resistor. The TVR includes an internal power contactor for disconnecting from the mains. It supplies low voltages to drive modules via wire ribbon cable, and during mains power failure, electronic voltages are provided from the DC bus circuit, ensuring functionality of drive electronics when operating as a generator.
Notable Features
1. Regenerative energy recovery allows the drive system to feed braking motor energy back into the power supply with minimal loss.
2. Direct mains connection is possible, allowing the TVR 3.1 to link directly to 380...480V, 50...60 Hz three-phase power supplies without a transformer.
3. An internal contactor provides the capability for automatic power shutdown for the drives, serving as an integrated power-off feature.
4. DC bus short-circuiting is a safety mechanism that halts servo drives by internally short-circuiting the DC bus in the event of an electronic fault.
5. Designed for high overload situations, this system can handle peak power up to 45 kW to accelerate motors.
6. Overcurrent protection is achievable through circuit breakers, avoiding the need for costly semiconductors and removing the requirement for specialized fuses in export models.
Configurations
The TVR power supply module is compatible with various configurations and accessories. The main configuration includes the power supply module TVR 3.1-W015-03. Additionally, electrical accessories such as E1-TVR, E2-TVR, and E3-TVR are available. For inductors, options include the DC bus smoothing choke and GLD 17, as well as the commutation choke KD 23. Alternatively, it can be paired with the mains supply module and NM 1.2-15, along with wire-ribbon cable IN ... / ... (as detailed in section 8.4). Furthermore, compatibility extends to auxiliary bleeder module TBM 1.2-040-W1/024 for enhanced functionality.
