Indramat DMD

Indramat DMD

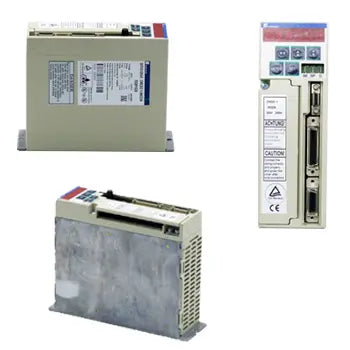

Indramat's DMD drive series includes four distinct models, each designed to pair with corresponding motors. The entry-level model, DMD01.1-W0 12, works with the MMD012A1* motor and is capable of delivering an output of 100W at a voltage specification of 230V. This model, like all in the series, operates at a speed of 3000 rpm and provides a pulse rate of 2500 Pulse/R.

The next model in the series, DMD01.1-W0 22, pairs with the MMD022A1* motor, offering a higher output of 200W while maintaining the same voltage specification and operational speed. The pulse rate remains constant across the series.

For applications requiring more power, the DMD01.1-W0 42 model is suitable, driving the MMD042A1* motor with a 400W output. Despite the increased power, it operates at the same voltage, speed, and pulse rate as its lower-powered counterparts.

The most powerful model in this lineup is the DMD01.1-W0 82, which operates with the MMD082A1* motor, delivering a robust output of 750W. As with the other models, it functions at 230V, with a speed of 3000 rpm and a pulse rate of 2500 Pulse/R.

Each model in the DMD01.1-W0 series exemplifies Indramat's commitment to providing a range of options to cater to various power needs while ensuring consistency in voltage, speed, and control across the board.

DMD Technical Data

Model-Nr. (Driver) Model-Nr. (Motor) Output Voltage Specification Speed (rpm) Pulse
DMD01.1-W0 12 MMD012A1* 100W 230V 3000 rpm 2500 Pulse/R
DMD01.1-W0 22 MMD022A1* 200W 230V 3000 rpm 2500 Pulse/R
DMD01.1-W0 42 MMD042A1* 400W 230V 3000 rpm 2500 Pulse/R
DMD01.1-W0 82 MMD082A1* 750W 230V 3000 rpm 2500 Pulse/R

DMD Technical Data Cont.

Indramat Model Name DMD01.1 DMD-W012 DMD-W022 DMD-W042 DMD-W082
Output W 100 200 400 750
Cont. input current (3-phase) A 0.7 1.1 1.8 4.0
Continuous Output Current Arms 1.0 1.6 2.5 4.3
Momentary Max. Output Current Ao-p 4.3 6.9 10.5 18.3
Rotary Encoder Feedback Signal P/r 2500 2500 2500 2500
Overcurrent Protection Level A (20) (20) (20) (40)
Overvoltage Protection Level VDC (400) (400) (400) (400)
Undervoltage Protection Level VDC (190) (190) (190) (190)
Overspeed Protection Level r/min 6000 6000 6000 6000
External power supply 24V / 0.5A 24V / 0.5A 24V / 0.5A 24V / 0.5A

DMD and MMD Motors

DMD Drive controllers are used in conjunction with MMD motors. Below is the compatibility for each subseries.

Motor Type Drive Controller
MMD012A DMD01.1-W0 12
MMD022A DMD01.1-W0 22
MMD042A DMD01.1-W0 42
MMD082A DMD01.1-W0 82
