Indramat VEH

Indramat VEH Panels

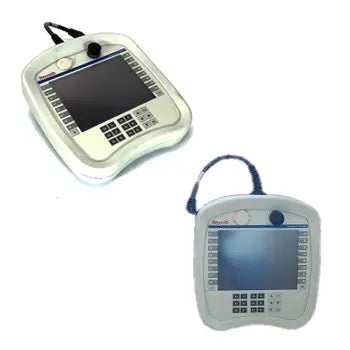

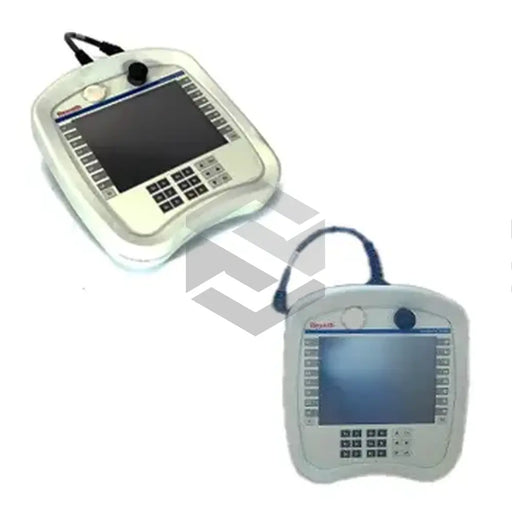

The IndraControl VEH 30.2 Hand-Held Terminal is a portable device that serves as a PC-based operator and visualization tool. It ensures safe operation of IndraLogic and IndraMotion controls through a 2-circuit, 3-stage enabling device and a 2-circuit stop pushbutton. This terminal simplifies the configuration of machines and installations located at various connection points. All versions of the device feature an 8.4-inch TFT display with eight function keys on both sides of the screen, along with jog keys for controlling up to six axes, providing comfortable system operation.

Type Code Breakdown

Line: 30 = 30

Design: 2 = 2

Front Panel and Display:
8.4" Touch Screen, 36 keys = BN

Additional Option: Without = N

Memory Capacity:
512 MB = 512

Interface: Standard Ethernet = ET

System Configuration: Intel Atom, min 1.1 GHz = A2

Nominal Connecting Voltage: Supply Voltage DC 24 V = D

Compact Flash Size:
Compact Flash Size = 4 GB

Function Design:
STOP button & Enabling Device, 3-stage, 2-circuit = BS

Override, handwheel, STOP button and enabling device, 3-stage, 2-Circuit = DS

Override, Handwheel, EMERGENCY STOP button & enabling Device, 3-stage, 2-circuit = GS

EMERGENCY STOP button & enabling device, 3-stage, 2-circuit = HS

Other Design:
Ethernet Control Cable, 8m, bayonet lock = B1

Ethernet Control Cable, 0.5m, bayonet lock = B2

Ethernet control cable, 0.5m = E2

Ethernet control cable, 8m Straight connector with bending-resistant contacts = E4
None = NN


Firmware must be ordered as separate subposition = FW

Technical Specifications

Parameter Details
Processor Intel Atom processor Z510 (1.1 GHz)
RAM 512 MB
Flash onboard 4 GB
Interfaces 1 × Ethernet connection (RJ 45, 10/100 base-T)
Service interface USB interface on the front
Further connections
  • Stop button
  • Enabling device
Housing material Polyamide PA6, glass-fiber reinforced
Degree of protection IP 65, type 1 according to NEMA (UL)
Degree of pollution 3
Voltage supply DC 24 V
Input voltage range DC 24 V (+19 V to +30 V)
Emitted interference and surge immunity Umax = 35 V (for t < 100 ms)
Max. input current 0.7 A for nominal voltage 24 V
Max. inrush current 3 A for nominal voltage 24 V
Prescribed external protection Fusible cut-out, 2 A time-lag
Max. power consumption for maximum configuration 14 W

Ambient Conditions

Temperature Operation Storage Transport
Max. ambient temperature +5 ℃ to 40 ℃ according to EN 50178, class 3K3 -20 ℃ to +70 ℃ according to EN 50178, class 3K3 -20 ℃ to +70 ℃ according to EN 50178, class 3K3
Temporal temperature changes up to 3 K per minute
