Shop Indramat MAD Collection
-
Original price $4,478.24 - Original price $4,478.24Original price$4,478.24$4,478.24 - $4,478.24Current price $4,478.24

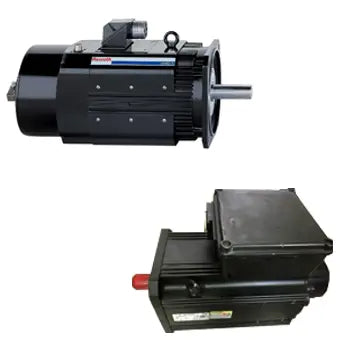

MAD100-0150-SA-S2-BG0-05-N1
Bosch Rexroth IndramatAvailable, Shipping VariesThe MAD100-0150-SA-S2-BG0-05-N1 servo motor from Bosch Rexroth Indramat is part of the MAD IndraDyn A Motors series. It features surface cooling wi...
View full detailsOriginal price $4,478.24 - Original price $4,478.24Original price$4,478.24$4,478.24 - $4,478.24Current price $4,478.24 -
Original price $10,605.13 - Original price $10,605.13Original price$10,605.13$10,605.13 - $10,605.13Current price $10,605.13
MAD130B-0100-SA-M2-BH0-05-N2
Bosch Rexroth IndramatAvailable, Shipping VariesThe MAD130B-0100-SA-M2-BH0-05-N2 spindle motor has an Axail Fan, Blowing cooling mode, a Singleturn Absolute encoder with 2048 increments, and a st...
View full detailsOriginal price $10,605.13 - Original price $10,605.13Original price$10,605.13$10,605.13 - $10,605.13Current price $10,605.13 -
Original price $10,100.12 - Original price $10,100.12Original price$10,100.12$10,100.12 - $10,100.12Current price $10,100.12
MAD130B-0100-SA-M2-BH0-05-N3
Bosch Rexroth IndramatAvailable, Shipping VariesThe MAD130B-0100-SA-M2-BH0-05-N3 motor by Bosch Rexroth Indramat from the MAD IndraDyn A Motors series offers robust design. It features a blower f...
View full detailsOriginal price $10,100.12 - Original price $10,100.12Original price$10,100.12$10,100.12 - $10,100.12Current price $10,100.12 -
Original price $10,605.13 - Original price $10,605.13Original price$10,605.13$10,605.13 - $10,605.13Current price $10,605.13
MAD130B-0100-SA-M2-AH0-05-N1
Bosch Rexroth IndramatAvailable, Shipping VariesThe Bosch Rexroth Indramat MAD130B-0100-SA-M2-AH0-05-N1 motor from the MAD IndraDyn A Motors series is rated at 100 Nm torque. It delivers a rated ...
View full detailsOriginal price $10,605.13 - Original price $10,605.13Original price$10,605.13$10,605.13 - $10,605.13Current price $10,605.13 -
Original price $10,605.13 - Original price $10,605.13Original price$10,605.13$10,605.13 - $10,605.13Current price $10,605.13
MAD130B-0100-SA-M2-HH0-05-N1
Bosch Rexroth IndramatAvailable, Shipping VariesThe MAD130B-0100-SA-M2-HH0-05-N1 motor uses an Axail Fan cooling mode, a Singleturn Absolute 2048 encoder, and Flange mounting. Belonging to the MA...
View full detailsOriginal price $10,605.13 - Original price $10,605.13Original price$10,605.13$10,605.13 - $10,605.13Current price $10,605.13
Indramat MAD Motors
Indramat MAD motors are part of a line of highly dynamic servo motors known for their precision and reliability. They are typically used in industrial automation applications, including CNC machining, robotic arms, packaging machinery, and other applications requiring precise motion control. The MAD series offers a range of power outputs and sizes, allowing for customization according to the specific needs of the application. The numerical designation (e.g., MAD100, MAD130, etc.) corresponds to different Winding Options, which can be found in the Indramat Documentation, or down below.With their robust design, these motors are built to provide high performance in demanding industrial environments.
MAD Type Code Breakdown
The MAD Motor Series contains various subseries (MAD100, MAD130, MAD160, etc.). Below are a few examples of the type code format for each subseries. Please refer to the Indramat documentation for a more in-depth breakdown.
MAD100:
- Product series: MAD
- Size: 100
- Length options: B, C, D
- Winding codes for:
- MAD100B: 0050, 0100, 0150, 0200, 0250
- MAD100C: 0050, 0100, 0150, 0200, 0250
- MAD100D: 0050, 0100, 0150, 0200, 0250
- Cooling mode:
- Axial fan, blowing: SA
- Fan top with fan cowl: SL
- Encoder options:
- Singleturn absolute encoder, EnDat2.1, 2048 increments: S2
- Singleturn absolute encoder, EnDat2.1, 2048 increments, for Ex areas: S6
- Multiturn absolute encoder, EnDat2.1, 2048 increments: M2
- Multiturn absolute encoder, EnDat2.1, 2048 increments for Ex areas: M6
- Incremental encoder, 2048 increments: C0
- Without motor encoder: N0
MAD130:
- Product series: MAD
- Size: 130
- Length options: B, C, D
- Winding codes for:
- MAD130B: 0050, 0100, 0150, 0200, 0250
- MAD130C: 0050, 0100, 0150, 0200, 0250
- MAD130D: 0050, 0100, 0150, 0200, 0250
- Cooling mode:
- Axial fan, blowing: SA
- Fan top with fan cowl: SL
- Encoder options:
- Singleturn absolute encoder, EnDat2.1, 2048 increments: S2
- Singleturn absolute encoder, EnDat2.1, 2048 increments, for Ex areas: S6
- Multiturn absolute encoder, EnDat2.1, 2048 increments: M2
- Multiturn absolute encoder, EnDat2.1, 2048 increments for Ex areas: M6
- Incremental encoder, 2048 increments: C0
- Without motor encoder: NO
MAD160:
- Product series: MAD
- Size: 160
- Length options: B, C, D
- Winding codes for:
- MAD160B: 0050, 0100, 0150, 0200
- MAD160C: 0050, 0100, 0150, 0200
- MAD160D: 0050, 0100, 0150, 0200
- Cooling mode:
- Axial fan, blowing: SA
- Fan top with fan cowl: SL
- Encoder options:
- Singleturn absolute encoder, EnDat2.1, 2048 increments: S2
- Singleturn absolute encoder, EnDat2.1, 2048 increments, for Ex areas: S6
- Multiturn absolute encoder, EnDat2.1, 2048 increments: M2
- Multiturn absolute encoder, EnDat2.1, 2048 increments for Ex areas: M6
- Incremental encoder, 2048 increments: C0
- Without motor encoder: NO
MAD100 Technical Data
Parameter | Symbol | Unit | 0050 | 0100 | 0150 | 0200 | 0250 |
---|---|---|---|---|---|---|---|
Rated torque 1) | MN | Nm | 70.0 | 64.0 | 59.0 | 54.0 | 50.0 |
Rated power | PN | kW | 3.70 | 6.70 | 9.27 | 11.30 | 13.10 |
Rated current | IN | A | 10.1 | 19.3 | 24.7 | 27.2 | 32.4 |
Rated speed | nN | 1/min | 500 | 1,000 | 1,500 | 2,000 | 2,500 |
Ambient Conditions
The MAD motors are designed to operate within specific ambient conditions to maintain optimal performance. The specified performance data is valid for motors running in ambient air temperatures from 0°C to +40°C and at installation altitudes from 0 meters to 1000 meters above sea level. Additionally, they are rated for environmental class 3K4, which includes lower air temperature limits of +5°C, a high air temperature threshold of +40°C, relative humidity ranging from 5% to 95%, and absolute humidity levels between 1 g/m³ and 29 g/m³. They can also handle a temperature change rate of 0.5°C/min, ensuring stability and reliability across varying climates and operational conditions.
The components of the machinery are safeguarded to varying degrees as per their Ingress Protection (IP) ratings. The output shaft without a shaft sealing ring has a protection degree of IP54, indicating that it is protected against limited dust ingress and splashing of water. Meanwhile, the output shaft with a shaft sealing ring, the output shaft with labyrinth seal, the power connection, fan connection, motor encoder connector, and the motor fan all boast a higher degree of protection with an IP65 rating. This rating signifies that these components are dust-tight and protected against low-pressure jets of water from any direction, ensuring a high level of protection against environmental elements.
