Indramat DKR

Indramat DKR

  • product Main (Front Left) image of R911275200
    $12,617.81 - $12,617.81
    $12,617.81
    $12,617.81 - $12,617.81
    $12,617.81

    R911275200

    Bosch Rexroth Indramat
    In Stock, Ships Today

    Bosch Rexroth Indramat's R911275200 (DKR02.1-W300N-BA01-01-FW) is a cutting-edge industrial controller, designed to precisely regulate a variety of...

    View full details
    $12,617.81 - $12,617.81
    $12,617.81
    $12,617.81 - $12,617.81
    $12,617.81
  • product Main (Front Left) image of R911280369
    $9,975.44 - $9,975.44
    $9,975.44
    $9,975.44 - $9,975.44
    $9,975.44

    R911280369

    Bosch Rexroth Indramat
    In Stock, Ships Today

    The R911280369 (DKR02.1-W200B-BE23-01-FW) is a drive controller designed and manufactured by Bosch Rexroth Indramat, a globally renowned engineerin...

    View full details
    $9,975.44 - $9,975.44
    $9,975.44
    $9,975.44 - $9,975.44
    $9,975.44
  • product Main (Front Left) image of R911287698
    $26,543.78 - $26,543.78
    $26,543.78
    $26,543.78 - $26,543.78
    $26,543.78

    R911287698

    Bosch Rexroth Indramat
    In Stock, Ships Today

    The R911287698 (DKR02.1-W300B-B) is a uniquely designed drive controller, by Bosch Rexroth Indramat, engineered to monitor and regulate the company...

    View full details
    $26,543.78 - $26,543.78
    $26,543.78
    $26,543.78 - $26,543.78
    $26,543.78
  • product Main (Front Left) image of R911278870
    $10,358.58 - $10,358.58
    $10,358.58
    $10,358.58 - $10,358.58
    $10,358.58

    R911278870

    Bosch Rexroth Indramat
    In Stock, Ships Today

    The R911278870 (DKR02.1-W200B-BE43-02-FW), produced by Bosch Rexroth Indramat, is an effective drive controller with an IP 20 protection category, ...

    View full details
    $10,358.58 - $10,358.58
    $10,358.58
    $10,358.58 - $10,358.58
    $10,358.58
  • product Main (Front Left) image of R911280927
    $11,991.00 - $11,991.00
    $11,991.00
    $11,991.00 - $11,991.00
    $11,991.00

    R911280927

    Bosch Rexroth Indramat
    In Stock, Ships Today

    The R911280927 (DKR02.1-W200B-BE11-02-FW) is a high-performance drive controller produced by globally recognized engineering company, Bosch Rexroth...

    View full details
    $11,991.00 - $11,991.00
    $11,991.00
    $11,991.00 - $11,991.00
    $11,991.00
Shop collection

Indramat DKR

The DKR series of drive controllers are engineered for digital intelligent control of Rexroth Indramat motors, including AC main spindle motors (2AD or ADF), frameless spindle motors (1MB), and linear motors (LSF or LAF). These motors offer a significant continuous power range at the output shaft, spanning from 10 to 93 kW. DKR drive controllers are available in various power ratings to provide precise control and regulation of these motors. Characterized by their high level of control and an extensive speed range with consistent power, DKR drive controllers are particularly fitting for applications in NC-controlled machine tools and printing machinery, where such features are critical for optimal operation.

The DKR drive controllers are designed to connect directly to grounded AC mains with a voltage range of 400 V to 480 V and come equipped with an integrated mains contactor and an emergency stop shutdown device. In addition, the regenerated braking energy is fed back into the mains supply, which is a feature that remains active even during an emergency stop.

The DKR02 and DKR03 models have the option to include an integrated brake resistor, whereas the DKR04 can be fitted with an external brake resistor. This feature is critical as it allows for the deceleration of the drive in the event of mains failure.

Regarding cooling, the DKR drive controllers have a heatsink and blower integrated into their housing. The cooling air can be directed through the machine via an air duct. This design is flexible and can be quickly adapted to meet different demands and requirements. There are three cooling variants available:

1. With air from inside the control enclosure.
2. With air from outside the control enclosure.
3. Using a duct for cooling.

This flexibility ensures that the drive controllers can be configured to suit a variety of operating environments and setups.

Configuring a Complete Drive Controller

The DKR drive is a modular system designed for customization through the insertion of various components into its basic unit. This modular approach allows the DKR drive to be tailored specifically to different applications, such as those requiring a mounted measuring encoder. To adapt the basic unit to a particular application, individual plug-in cards are inserted into designated slots labeled U1 through U5.

Once fully assembled, a configured DKR drive comprises the basic unit, a software module, one or more command interface cards, and auxiliary plug-in module(s).

Ordering a DKR drive requires selecting the necessary firmware, referenced as FWA-DIAX03-.... Each firmware is considered a subitem and has to be ordered separately. The firmware functions as the operating system of the DKR drive, installed on EPROMs within the DSM software modules and any auxiliary plug-in modules as needed.

DKR02 Technical Data

Designation Symbol Unit DKR02.1-W200-... DKR02.1-W300-...
System frequency fN1 Hz 50 ... 60 50 ... 60
Control voltage UN2 V AC 230 V, ± 10% AC 230 V, ± 10%
Continuous current of the drive (4 kHz/8 kHz) Icont A 4 kHz: 120
8 kHz: 95		 4 kHz: 141
8 kHz: 110
Continuous regenerated power Pcont kW ca. 37 ca. 43
Peak regenerated power (max. 10 s) Prcmax kW ca. 55 ca. 93
Drive controller power voltage Ueff V 0 ... 380 0 ... 380
Continuous power of the brake resistor PBD kW 1,5 1,5
Peak power of the brake resistor PBS kW 90 90
Cooling method build-in blower / coolant build-in blower / coolant

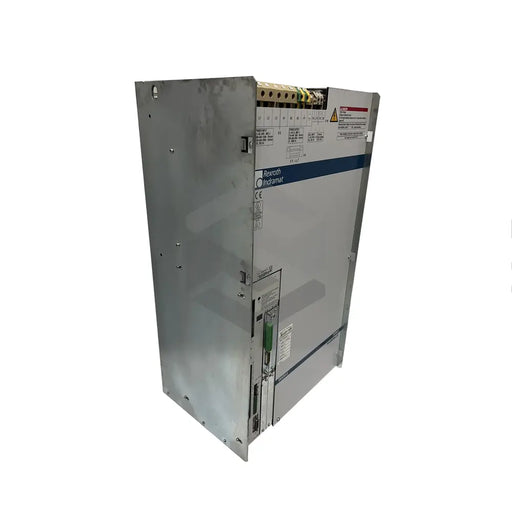

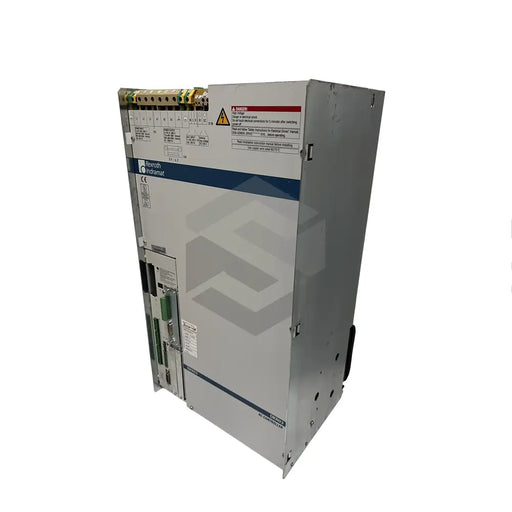

DKR03 Technical Data

Designation Symbol Unit DKR03.1-W100-... DKR03.1-W200-...
Rated power voltage UN1 V 3xAC 400 3xAC 400 ... 480, ±10%
System frequency fN1 Hz 50 ... 60 50 ... 60
Control voltage UN2 V AC 230 V, ±10% AC 230 V, ±10%
Control voltage frequency fN2 Hz 50 ... 60 50 ... 60
Control voltage power PN2 VA 200 200
Peak current of the drive Imaxeff A 71 141
Continuous regenerated power Prück kW ca. 22 ca. 30
Drive controller power voltage Ueff V 0 ... 380 0 ... 380
max. frequency of the power voltage (4 kHz/8 kHz) fmax Hz 4 kHz: 800
8 kHz: 1600		 4 kHz: 800
8 kHz: 1600

DKR04 Technical Data

Designation Symbol Unit DKR04.1-W300-... DKR04.1-W400-...
Rated power voltage UN1 V 3xAC 400 ... 480, ± 10% 3xAC 400 ... 480, ± 10%
System frequency fN1 Hz 50 ... 60 50 ... 60
Control voltage UN2 V AC 230 V, ± 10% AC 230 V, ± 10%
Control voltage frequency fN2 Hz 50 ... 60, ± 2 Hz 50 ... 60, ± 2 Hz
Control voltage power PN2 VA 300 300
Peak current of the drive Imaxeff A 212 282
Continuous regenerated power Prück kW ca. 58 ca. 66

Appropriate Use

DKR drive controllers are designed for specific applications, featuring customizable drive power and various interfaces, making them suitable for use in printing machines and NC (numerically controlled) machine tools. For optimal performance, these controllers should be operated within designated parameters including correct assembly, installation, and specified ambient conditions such as temperature range, protection system, humidity, and adherence to EMC (Electromagnetic Compatibility) requirements. It is also crucial that these controllers are used in their specified position to ensure proper functionality.

DKR02 Ambient Specs

Specification Parameter Unit Value
Perm. ambient temp. range with rated data TA1 °C +5 ... +45
Max. perm. ambient temp. with derating of nominal data to 80% TA2 °C +55
Storage and shipping temperature TL °C -30 ... +80
Max. installation elevation without nominal data derating m/sea lev. 0 ... 1000
Protection category IP 20 per EN60529 / IEC529

DKR03 Ambient Specs

Ambient conditions
Perm. ambient temp. range with rated data TA1 °C +5 ... +45
Max. perm. ambient temp. with derating of nominal data to 80% TA2 °C +55
Storage and shipping temperature TL °C -30 ... +80
Max. installation elevation without nominal data derating m/sea lev. 0 ... 1000
Protection category IP 20 per EN60529 / IEC529

DKR04 Ambient Specs

Condition Parameter Unit Value
Perm. ambient temp. range with rated data TA1 °C +5 ... +45
Max. perm. ambient temp. with derating of nominal data to 80% TA2 °C +55
Storage and shipping temperature TL °C -30 ... +80
Max. installation elevation without nominal data derating m/sea level 0 ... 1000
Protection category IP 20 per EN60529 / IEC529
