Shop Indramat TDA Collection
-
Original price $3,828.38 - Original price $3,828.38Original price$3,828.38$3,828.38 - $3,828.38Current price $3,828.38TDA 1.1-100-3-A00
Bosch Rexroth IndramatThe Bosch Rexroth Indramat TDA 1.1-100-3-A00 is a main spindle controller engineered for seamless integration with Indramat 2AD and frameless 1MB s...
View full detailsOriginal price $3,828.38 - Original price $3,828.38Original price$3,828.38$3,828.38 - $3,828.38Current price $3,828.38 -
Original price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a QuoteTDA 1.3-050-3-L00
Bosch Rexroth IndramatThe TDA 1.3-050-3-L00 is a main spindle controller, manufactured by Bosch Rexroth Indramat, designed for high precision control in numerically cont...
View full detailsOriginal price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a Quote -
Original price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a QuoteTDA 1.1-050-3-L00
Bosch Rexroth IndramatThe TDA 1.1-050-3-L00, crafted by Bosch Rexroth Indramat, is a superior primary spindle controller, implemented for precise operation control in in...
View full detailsOriginal price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a Quote -
Original price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a QuoteTDA 1.3-050-3-A0S
Bosch Rexroth IndramatBosch Rexroth Indramat manufactures the TDA 1.3-050-3-A0S, a 50-Amp Spindle Control unit primarily used for controlling spindle motors (2AD/1MB), w...
View full detailsOriginal price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a Quote -
Original price $6,563.44 - Original price $6,563.44Original price$6,563.44$6,563.44 - $6,563.44Current price $6,563.44TDA1.3-100-3-A0I
Bosch Rexroth IndramatIn Stock, Ships 3 - 5 DaysThe TDA1.3-100-3-A0I, a top-tier main spindle drive system, is a product of renowned motion control technology manufacturer, Bosch Rexroth Indramat...
View full detailsOriginal price $6,563.44 - Original price $6,563.44Original price$6,563.44$6,563.44 - $6,563.44Current price $6,563.44

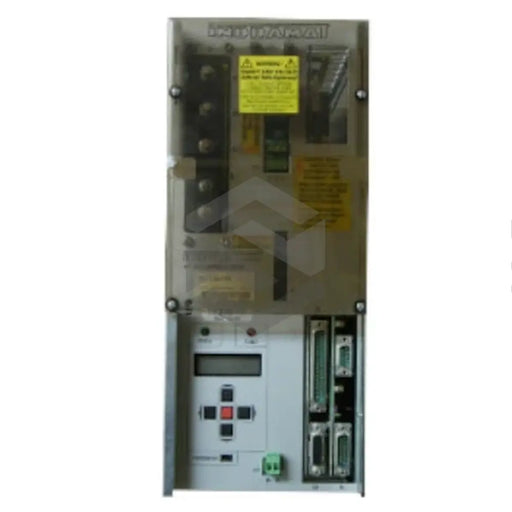

Indramat TDA
The TDA 1 controller is designed for integration with CNC machinery, working alongside controllers for feed axes to enhance machine functionality. It is tailored for precise control of the machine’s drive through its combination of a power supply module, modular main spindle, and servo drive controllers, allowing for the customized setup necessary for specific CNC tasks. The controller facilitates the spindle’s operation as a servo axis with a C-axis mode, leveraging a high-accuracy position control loop and a high-resolution feedback device for maintaining low-speed accuracy.
Additionally, the TDA 1 is equipped with several interfaces: an incremental encoder output for precise position control in C-axis mode or thread cutting, a serial interface for parameter management, and a digital position command input supporting 16-bit parallel commands for a wide range of selectable positions through a PLC. This array of features positions the TDA 1 as a highly adaptable component for CNC machine tool applications, offering both flexibility and precision.
TDA Type Code
- Designation:
- TDA
- Series:
- 1
- Version:
- 1
- Rated Current Options:
- 50 A (050)
- 100 A (100)
- DC Link Circuit Rated Voltage:
- DC 300V (3)
- Command Value Options:
- Analog +/- 10V (A)
- Digital (16-bit parallel) (D)
- SERCOS interface (L)
- Additional Encoder Input Options:
- Without additional encoder input (O)
- With additional encoder for spindle feedback or 2nd motor feedback signal (P)
- With additional encoder and synch. input (exclusively with AS 35 and speed command value = A) (Y)
- Additional Interface Options:
- Without additional interface (O)
- Position command, digital (16 bit parallel) (D)
- Serial interface (RS 232 C) (S)
- Incremental encoder output (I)
Technical Data
| Designation | Symbol | Unit | TDA 4050-3 | TDA 4100-3 |
|---|---|---|---|---|
| Cooling principle | with air inside control cabinet | |||
| Link circuit rated voltage | U(DC) | V | 300 | 300 |
| Current rating | I(typ.) | A | 50 | 100 |
| Continuous effective current | I(cont) | A | 35 | 70 |
| Power consumption (bus for control voltage) | ||||
| +24V load voltage | I(+UL) | A | 1.2 | 1.4 |
| ±15V test voltage | I(±UM) | mA | 160 | 160 |
| Weights | ||||
| Weight of controller | m | kg | 10.5 | 10.5 |
Ambient Operating Data
| Operating conditions | Unit | Values |
|---|---|---|
| Permissible ambient temperature range at nominal ratings | ° Celsius | +5 to +45 |
| Max. permissible ambient temperature at reduced ratings | ° Celsius | +55 |
| Storage and transportation temperature | ° Celsius | -30 to +85 |
| Max. altitude without limitation of nominal ratings | 1000 meters above sea level | |
| Permissible humidity of air as per humidity class | F as per DIN 40 040 | |
| Protection type | IP 10 as per DIN 40 050 |
