Indramat KNK

Indramat KNK Controllers

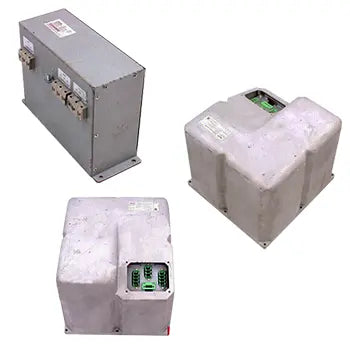

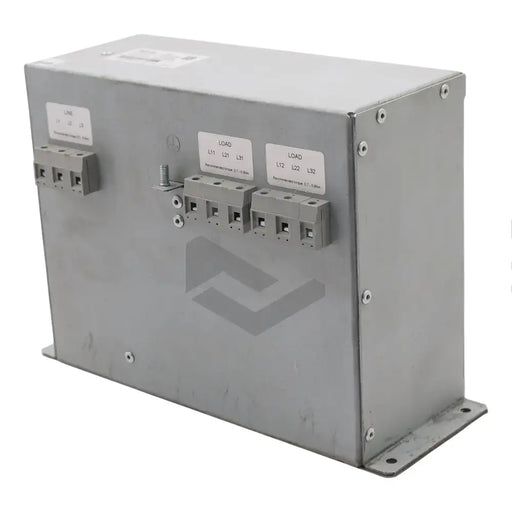

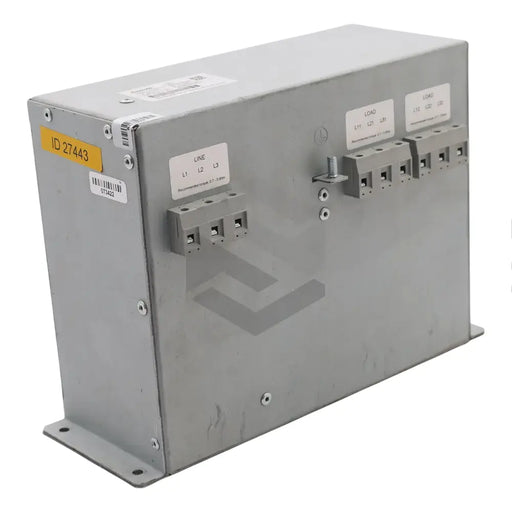

The KNK03 is a mains filter specifically designed for use with KMV03 supply units. It boasts a high degree of protection at IP65, ensuring it's well-protected against dust and water. The filter features an integrated mains choke and contactor, which enhance its functionality and reliability. Additionally, the KNK03 includes a thermal interface for cold plate mounting, facilitating its integration into systems where maintaining optimal operating temperatures is crucial.

KNK03 Type Code Breakdown

- Product: KNK = Mains filter with integrated mains choke
- Series: 03 = 3
- Design: 1 = 1
- EMC area: A = Category C3 in accordance with DIN 61800-3
- Application: N = Standard
- Supply system: R = For regenerative devices only
- Cooling type:
- B = Thermal interface (cold plate mounting)
- I = Thermal interface (insulated mounting)
- Nominal current:
- 0002 = 2.3 A
- 0012 = 12 A
- Degree of protection: P = IP65
- Leakage capacitance: U226 = 226 nF
- Mains connection voltage: A4 = 3 x AC 380 V -10% ... 3 x AC 500 V +10%
- Other design: NNNN = None

KNK03.1A Specifications

Description Symbol Unit Value
Degree of protection according to IEC 60529 IP - IP65
Listing in accordance with UL standard - - UL 61800-5-1
Listing in accordance with CSA standard - - CSA C22.2 No. 274-13
Mass m kg 20.00
Three-phase mains voltage at TN-S, TN-C, TT mains ULN V AC 380...500
Tolerance rated input voltage ULN - % ±10
Continuous current IL_cont - Continuous
Typical inductance per winding at Icont Ltyp µH 2
Power dissipation at continuous current and continuous DC bus power respectively PDiss_cont W 160
