Shop Indramat SOT Panels
-
Original price $1,177.14 - Original price $1,177.14Original price$1,177.14$1,177.14 - $1,177.14Current price $1,177.14R911257859
Bosch Rexroth IndramatIn Stock, Ships 1 - 2 DaysThe R911257859 (SOT02-E2A-AS) made by Bosch Rexroth Indramat is a highly sophisticated operator control device optimized for the DLC. This top-tier...
View full detailsOriginal price $1,177.14 - Original price $1,177.14Original price$1,177.14$1,177.14 - $1,177.14Current price $1,177.14 -
Original price $4,397.11 - Original price $4,397.11Original price$4,397.11$4,397.11 - $4,397.11Current price $4,397.11R911126823
Bosch Rexroth IndramatIn Stock, Ships 3 - 5 DaysThe Bosch Rexroth Indramat R911126823 (SOT02-E1A-CA) is a sophisticated operator terminal specifically designed to streamline the control of CLM co...
View full detailsOriginal price $4,397.11 - Original price $4,397.11Original price$4,397.11$4,397.11 - $4,397.11Current price $4,397.11 -

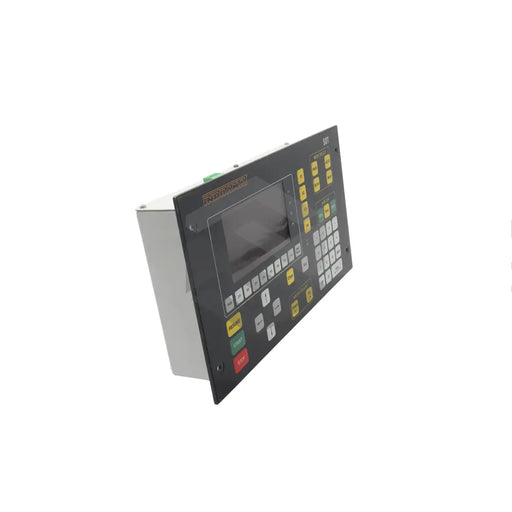

Original price $7,000.00 - Original price $7,000.00Original price$7,000.00$7,000.00 - $7,000.00Current price $7,000.00R911265232
Bosch Rexroth IndramatIn Stock, Ships 3 - 5 DaysThe R911265232 (SOT02-E2R-FW), produced by Bosch Rexroth Indramat, is a renowned operator control panel. It is uniquely designed for operating the ...
View full detailsOriginal price $7,000.00 - Original price $7,000.00Original price$7,000.00$7,000.00 - $7,000.00Current price $7,000.00 -
Original price $5,094.22 - Original price $5,094.22Original price$5,094.22$5,094.22 - $5,094.22Current price $5,094.22R911244973
Bosch Rexroth IndramatIn Stock, Ships 3 - 5 DaysThe R911244973 (SOT02-E1A-CU) is a superior operator panel crafted by Bosch Rexroth Indramat that enhances the control and automation applications ...
View full detailsOriginal price $5,094.22 - Original price $5,094.22Original price$5,094.22$5,094.22 - $5,094.22Current price $5,094.22 -
Original price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a QuoteR911244972
Bosch Rexroth IndramatThe R911244972 (SOT02-E1R-CR) is a state-of-the-art operator terminal, developed by Bosch Rexroth Indramat. Renowned for their superior designs in ...
View full detailsOriginal price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a Quote
Indramat SOT Panels

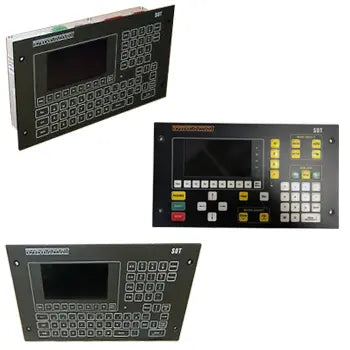

The Indramat Station Operator Terminal (SOT) is a supplementary control device designed to enhance the functionality of the DLC. It is mounted remotely and offers advanced features beyond those available on the standard DLC control panel. With its 4-7/8" by 2-3/4" display, the SOT can exhibit up to 16 lines of 40 characters, providing a more comprehensive view than the DLC's four-line display. The screen is built with a non-glare LCD and utilizes a cold cathode fluorescent lamp for backlighting, which ensures high contrast for both black and white displays. Additionally, the contrast level can be adjusted to suit user preferences for optimal visibility. The SOT is also equipped with software that includes helpful instructional screens, facilitating the user's interaction with the device and aiding in accurate information input.
The Station Operator Terminal (SOT) is capable of interfacing with the DLC's serial communications port and can be conveniently situated as far as a kilometer away using an RS-485 cable, highlighting its suitability for various setups. Detailed guidance for using the SOT is available in the form of a user's manual at the end of the provided documentation. Pre-configured with screens suitable for DLC-R applications, the SOT also offers customization options through Indramat's ScreenManager™ software, allowing for additional personalized screen setups. This software, tailored for command line operations, is compatible with DOS-based computing systems, adding a layer of versatility for users in configuring the device to meet their specific requirements.
Use with other products
The DLC system necessitates the integration of a DEA 4 card into its U2 slot for optimal functionality. This card is vital as it equips the system with 15 inputs and 16 outputs for managing various tasks. Moreover, the DLC system is designed to support bidirectional communication, enabling it to send and receive essential data such as batch programs, parameters, and system statuses with a host device. Such devices could include computers or Indramat's Station Operator Terminals (SOT), which connect through a versatile multi-format serial communications port. This feature is crucial for ensuring that the SOT panels can work seamlessly with other components within the broader system.
BTV04 Technical Data
| Category | Specification |
|---|---|
| Front Panel | Aluminum with 38 keys |
| Display | 128 x 64 pixel high-contrast graphical LC display with LED backlighting and dark mode |
| Enclosure | Impact-resistant ergonomic IP65-rated enclosure |
| Cable | Plug-in connecting cable |
| Control Keys | 9 machine control keys with LEDs |
| Customizable Keys | 7 machine control keys with LEDs, insert strips for customized labeling |
| Microcontroller | Series 68000 microcontroller |
| Memory | 1 MByte flash memory |
| RAM | 512 KByte RAM |
| Interfaces | RS232 and RS485 Indramat standard interfaces |
| Inputs | 10 x 24 V inputs |
| Outputs | 11 x 24 V outputs for external wiring |
