Indramat BTA20

Shop Indramat BTA20 Collection

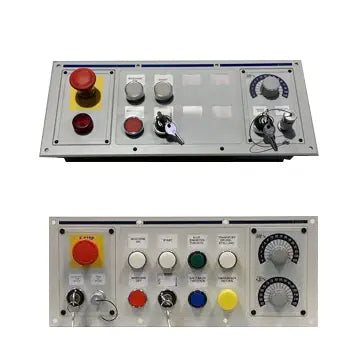

  • series image of BTA20.4-NE-WB-VB-BS
    $1,872.57 - $1,872.57
    $1,872.57
    $1,872.57 - $1,872.57
    $1,872.57

    BTA20.4-NE-WB-VB-BS

    Bosch Rexroth Indramat
    Available, Shipping Varies

    The Bosch Rexroth Indramat BTA20.4-NE-WB-VB-BS is a versatile machine control board from the BTA20 Machine Control Boards series designed for robus...

    View full details
    $1,872.57 - $1,872.57
    $1,872.57
    $1,872.57 - $1,872.57
    $1,872.57
  • series image of BTA20.4-NE-DC-VD-BS
    $1,703.19 - $1,703.19
    $1,703.19
    $1,703.19 - $1,703.19
    $1,703.19

    BTA20.4-NE-DC-VD-BS

    Bosch Rexroth Indramat
    Available, Shipping Varies

    The Bosch Rexroth Indramat BTA20.4-NE-DC-VD-BS is a machine control board from the BTA20 Machine Control Boards series. It features a NE-DC-VD conf...

    View full details
    $1,703.19 - $1,703.19
    $1,703.19
    $1,703.19 - $1,703.19
    $1,703.19
  • series image of BTA20.3-NE-DC-BA-BS
    $1,699.23 - $1,699.23
    $1,699.23
    $1,699.23 - $1,699.23
    $1,699.23

    BTA20.3-NE-DC-BA-BS

    Bosch Rexroth Indramat
    Available, Shipping Varies

    The Bosch Rexroth Indramat BTA20.3-NE-DC-BA-BS Machine Control Board is part of the BTA20 Machine Control Boards series and uses a NE-DC-BA configu...

    View full details
    $1,699.23 - $1,699.23
    $1,699.23
    $1,699.23 - $1,699.23
    $1,699.23
  • series image of BTA20.3-NC-DP-VD-BS
    $1,187.89 - $1,187.89
    $1,187.89
    $1,187.89 - $1,187.89
    $1,187.89

    BTA20.3-NC-DP-VD-BS

    Bosch Rexroth Indramat
    Available, Shipping Varies

    The BTA20.3-NC-DP-VD-BS is a Machine Control Board from Bosch Rexroth Indramat and part of the BTA20 Machine Control Boards. It features a NC-DP-VD...

    View full details
    $1,187.89 - $1,187.89
    $1,187.89
    $1,187.89 - $1,187.89
    $1,187.89
  • series image of BTA20.3-NA-WH-BA-BS
    $3,806.78 - $3,806.78
    $3,806.78
    $3,806.78 - $3,806.78
    $3,806.78

    BTA20.3-NA-WH-BA-BS

    Bosch Rexroth Indramat
    Available, Shipping Varies

    The BTA20.3-NA-WH-BA-BS board by Bosch Rexroth Indramat in the BTA20 Machine Control Boards series is engineered for reliable performance. It suppo...

    View full details
    $3,806.78 - $3,806.78
    $3,806.78
    $3,806.78 - $3,806.78
    $3,806.78
Shop collection

Indramat BTA20

The BTA20 is a machine control panel specifically tailored for integration with the BTV20, providing a user-friendly interface with three distinct components. It's customizable and can support up to eight standard switching elements from the Telemecanique ZB2-B... series, offering flexibility in configuration. Each switch element within the BTA20 base module can include up to two contacts and one indicator lamp, enhancing functionality. The design also features pre-milled knockouts on the front panel, facilitating installation and maintenance with a precision of 0.5 mm.

Technical Data

Specification Detail
Weight Approx. 2.1 kg
Protection Front plate, basic module IP65
Housing IP20 DIN40 050, IEC 529
Maximum ambient temperature Operation: +5°C to +45°C
Transportation: -20°C to +60°C
Air pressure (Operation) 860 to 1060 hPa, 1500 m
Max. heat dissipation Approx. 10 W
Front plate surface Varnished aluminum and holohedrally let in polyester foil resistant against chemicals
Color RAL 7035 light gray
24V inputs UIN = typ. 18-30V potential free
IIN = min. 7mA
24V outputs UOUT = typ. 18-30V potential free
IOUT = typ. 200mA

Key Features

The BTA20 is designed to streamline wiring by utilizing slots that fit standard 22.5mm components from the ZB2 series by Telemecanique. It allows subsequent mounting of circuit elements and offers the flexibility of potential-free wiring adjustments through jumpers. The necessary connections for a hard-wired setup are provided by a 30-pin socket (X1-X3), which supports essential functions like the emergency stop, acknowledge circuit, and potential-free contact for each component.

For manual operation, two emergency stop and three acknowledge circuits are provided, and they can be configured on either side of the module. The BTA20 also integrates an INTERBUS connection within its circuit board, with an I/O width of three words and eight potential-free 24V inputs and outputs for additional devices like signal lamps.

Moreover, the device features a potential-free interface converter that facilitates seamless connectivity between the MTS-P’s RS232 interface and RS422 interfaces of user interfaces or manual control units without the necessity for extra interface boards. This integration endows the BTA20 with a high degree of flexibility and minimizes the need for additional wiring and components.
