Indramat KDA

Shop Indramat KDA Collection

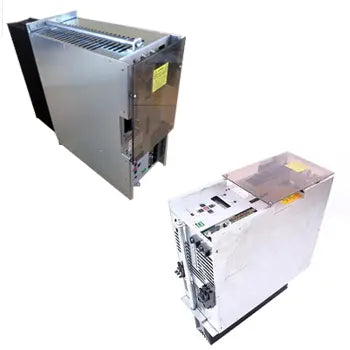

  • series image of KDA2.1-150-300-AP0-U1/115
    $3,341.25 - $3,341.25
    $3,341.25
    $3,341.25 - $3,341.25
    $3,341.25

    KDA2.1-150-300-AP0-U1/115

    Bosch Rexroth Indramat
    In Stock, Ships Today

    The KDA2.1-150-300-AP0-U1/115 from Bosch Rexroth Indramat is part of the KDA Spindle Drives. It features a programming module and is designed with ...

    View full details
    $3,341.25 - $3,341.25
    $3,341.25
    $3,341.25 - $3,341.25
    $3,341.25
  • series image of KDA 3.2-100-300-A00-U1-220
    $11,352.72 - $11,352.72
    $11,352.72
    $11,352.72 - $11,352.72
    $11,352.72

    KDA 3.2-100-300-A00-U1-220

    Bosch Rexroth Indramat
    Available, Shipping Varies

    The KDA 3.2-100-300-A00-U1-220 drive has a rated current of 100 A, a DC bus voltage of 300 V, uses forced heatsink blower cooling, and operates at ...

    View full details
    $11,352.72 - $11,352.72
    $11,352.72
    $11,352.72 - $11,352.72
    $11,352.72
  • series image of KDA 1.1-100-300-W1-220
    $10,069.83 - $10,069.83
    $10,069.83
    $10,069.83 - $10,069.83
    $10,069.83

    KDA 1.1-100-300-W1-220

    Bosch Rexroth Indramat
    Available, Shipping Varies

    The Bosch Rexroth Indramat KDA 1.1-100-300-W1-220 is an advanced spindle drive from the KDA Spindle Drives series. Engineered for high stiffness an...

    View full details
    $10,069.83 - $10,069.83
    $10,069.83
    $10,069.83 - $10,069.83
    $10,069.83
  • series image of KDA 3.2-150-3-A00-W1-220V
    $0.00 - $0.00
    Request a Quote
    $0.00 - $0.00
    Request a Quote

    KDA 3.2-150-3-A00-W1-220V

    Bosch Rexroth Indramat

    The KDA 3.2-150-3-A00-W1-220V drive controller from Bosch Rexroth Indramat belongs to the KDA Spindle Drives series. It supports a current rated of...

    View full details
    $0.00 - $0.00
    Request a Quote
    $0.00 - $0.00
    Request a Quote
  • series image of KDA 3.3-100-3-APD-U1
    $3,000.00 - $3,000.00
    $3,000.00
    $3,000.00 - $3,000.00
    $3,000.00

    KDA 3.3-100-3-APD-U1

    Bosch Rexroth Indramat
    In Stock, Ships 1 - 2 Days

    KDA 3.3-100-3-APD-U1 is a drive controller by Bosch Rexroth Indramat. It belongs to the KDA Spindle Drives series and has a 100 A current rating. I...

    View full details
    $3,000.00 - $3,000.00
    $3,000.00
    $3,000.00 - $3,000.00
    $3,000.00
Shop collection

Indramat KDA

The KDA 3.2 series is integral to the intelligent digital control systems of Indramat's 2AD asynchronous motors and 1MB frameless spindle motors, offering a consistent power output ranging from 3 to 22 kW at the motor shaft. These drives excel due to their exceptional rigidity, advanced positioning capabilities, and a broad speed range that does not compromise on power delivery. Their robust features make them particularly suitable for spindle drive applications, which include precise spindle positioning and C-axis operations within computer numerical control (CNC) machinery, underscoring their versatility and critical role in sophisticated machining processes.

KDA Type Code

- Name: KDA
- Series: 3
- Design: 3
- Rated current in Ampere: Options are 050, 100, 150
- DC bus voltage in V: 300
- Speed command value:
- analog +/- 10V (A)
- digital 16-bit parallel (D)
- SERCOS - Interface (L)
- Aux. encoder input:
- without (O)
- with for spindle or second motor feedback (P)
- with auxiliary and synchronous inputs (due to AS 35 and speed command value = A) (Y)
- with aux. encoder input for 1V sinusoidal enc. (Q)
- Aux. interface:
- without (O)
- Position command value digital 16-bit parallel (D)
- Serial interface RS 232 C (S)
- incremental encoder output (I)
- AC supply source for heatsink blower:
- 220V/50-60Hz (W)
- 115V/50-60Hz (U)
- Cooling: forced cooling by heatsink blower (1)

Technical Data

Designation Symbol Einheit KDA3.3-050-3-W1 KDA3.3-100-3-W1 KDA3.3-150-3-W1
Cooling mode forced cooling
DC bus voltage U(DC) (V) 300 300 300
Rated current I(typ) (A) 50 100 150
Continous current I(cont) (A) 35 70 90
Current consumption (bus for control voltage)
+ 24V load voltage I(+UL) (A) 1.2 1.4 1.6
± 15V measuring voltage I(±UM) (mA) 160 160 160
Weights
drive weight m (kg) 16.6 17.1 17.4
mech. mounting kit (M1-KD) m (kg) 1.7 1.7 1.7
blower unit (LE4) m (kg) 4.2 4.2 4.2

Ambient Conditions

Ambient Conditions Specification
perm. ambient temp. range with nominal data +5°C ... +45°C
perm. max. ambient temperature with reduced nominal data 55°C
Storage and transport temp. -30°C ... +85°C
Install. elev. without reduction of nominal data max. 1000m above sea level
perm. humidity F per DIN 40 040
Protection category IP 10 per DIN 40 050
