Indramat's BTV panels come in various models, each designed to offer specific interface solutions for machine control. While they all maintain a core focus on user-friendly interfaces and streamlined machine interaction, the variations typically include differences in keypad layouts, the number of programmable keys, and connectivity options to suit a range of industrial environments. Some models like the BTV04, feature a miniature control panel with a graphical interface and customizable keys, along with standard RS485 and RS232 interfaces for broad compatibility with INDRAMAT systems. Others, such as the BTV05, emphasize ease of use with a clearly structured keypad and a reduced key count for simplifying operation. Across the variations, software support like ScreenManager allows for the creation of custom applications, providing users with versatile control over INDRAMAT control family variables. Each model is tailored to meet different operational demands while adhering to the industry's standards for control panels.

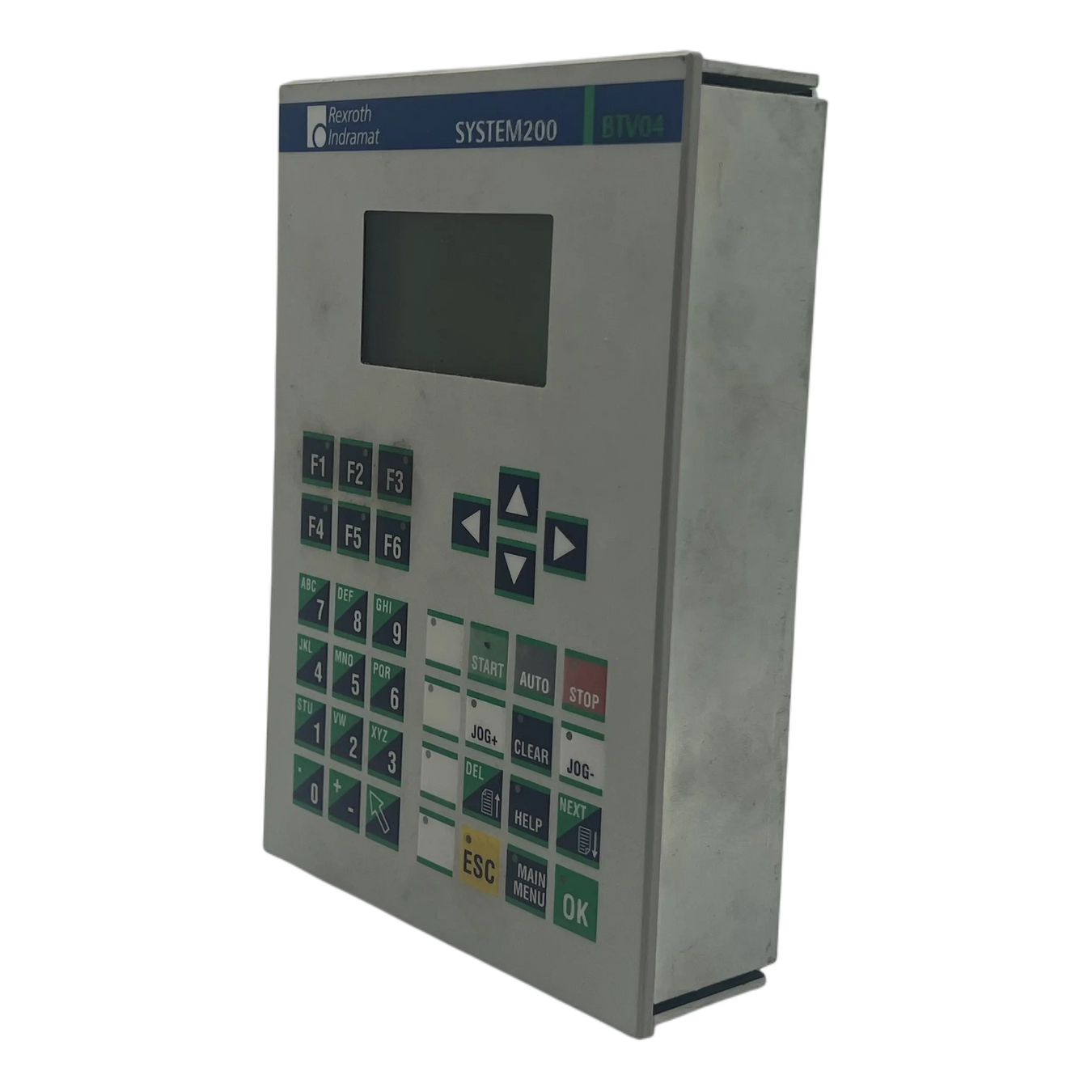

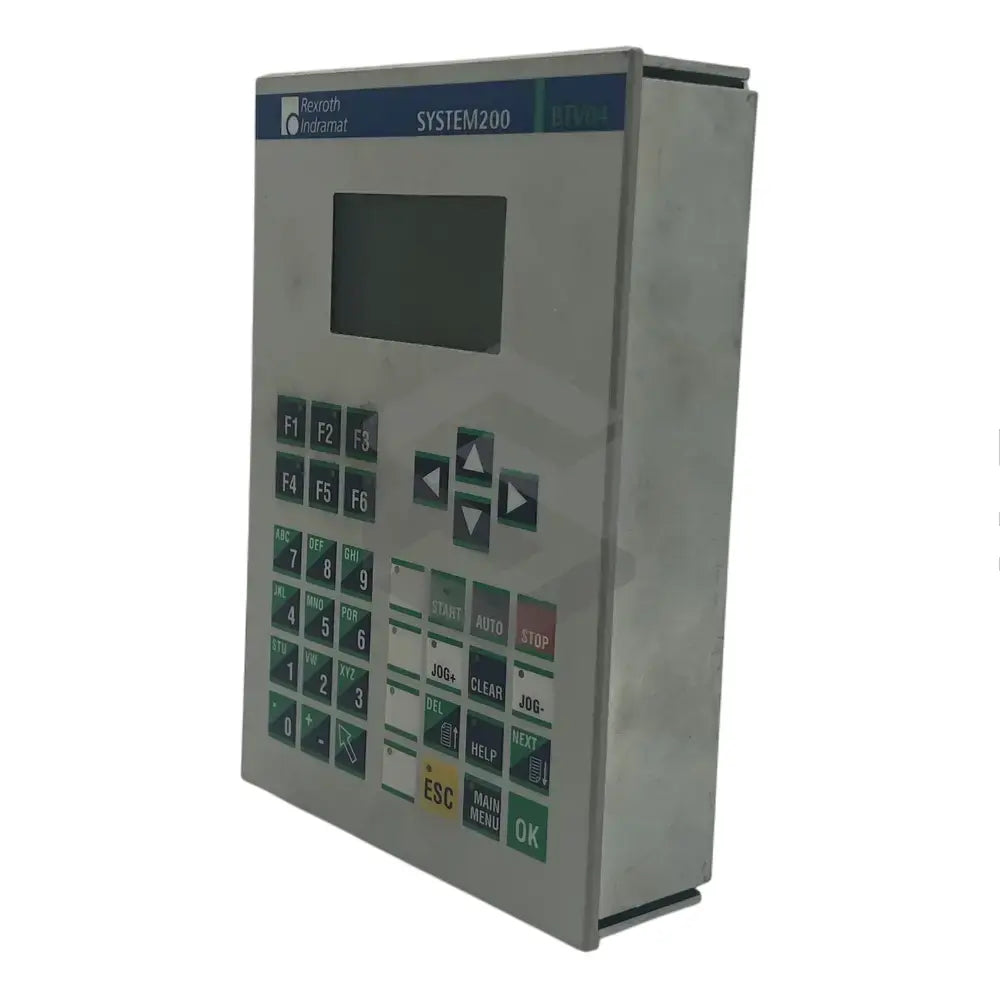

The BTV04 panel from Indramat is designed with two serial communication interfaces to facilitate integration and coordination with various industrial control systems. Specifically, it includes a COM 1 port that supports the RS485 interface with bus capability, aligning with the Indramat standard for industrial communication. Additionally, it offers a COM 2 port featuring an RS232 interface. These interfaces, however, are noted to be non-isolated. The inclusion of these serial ports underscores the BTV04's capability to interface with both INDRAMAT controls and personal computers, ensuring a versatile and broad applicability in complex industrial environments.

Type Code

- Product group: BTV
- Line: 04
- Design: 2
- Display: Graphics capability, 128 x 64 Pixel - G
- Keyboard: Standard - N
- Firmware: Denotes that firmware must be ordered as separate subposition - FW

The BTV05 unit is designed with dual serial interfaces that include a 15-way DSUB connector, fully compatible with the Indramat standard. It provides the flexibility to program seven keys on its keypad according to user needs, with the added convenience of insert strips for custom labeling. Moreover, its integrated RS485/422 interface significantly enhances its suitability for connecting with any INDRAMAT controller, streamlining its integration into existing control systems. This combination of customization and compatibility features makes the BTV05 a versatile option for users looking to tailor their control interfaces specifically to their operational requirements.

Type Code

- Product group: BTV
- Line: 05
- Design: 2
- Display: Graphics capability, 256 x 64 Pixel - H
- Keyboard: Customized - B
- Keyboard: Standard - N
- Communication Bus: Serial, RS485 - RS
- Firmware: Requires separate subposition order - FW

The BTV06 unit features robust connectivity with two serial interfaces that include a 15-way DSUB connector, adhering to the Indramat standard. Flexibility is a key aspect, as it allows users to program seven keys on the keypad to their specific needs and provides insert strips for easy labeling. The unit is equipped with a combined RS485/422 interface, enhancing its compatibility for seamless integration with any INDRAMAT controller. Additionally, the BTV06 is supported by the universal ScreenManager software, which grants users the ability to create custom applications capable of interfacing with the variables across all INDRAMAT control families, further extending its utility and adaptability.

Type Code

- Product group: BTV
- Line: 06
- Design: 1
- Display: Graphics capability, 240 x 128 Pixel - H
- Keyboard: Customized - B
- Keyboard: Standard - N
- Interface: 2 x SIS (RS232 / RS422 / RS485) - RS
- Firmware: Requires separate subposition order - FW

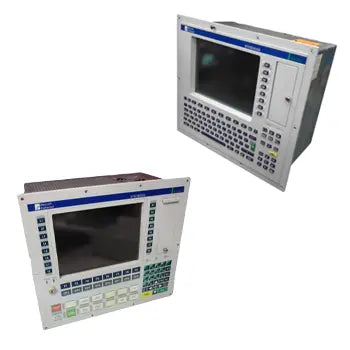

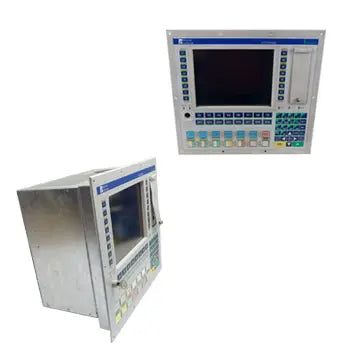

The BTV30.2 is a comprehensive control unit that essentially integrates the capabilities of an industrial PC. It is equipped with a 10.4-inch color display and a full ASCII keyboard that is MFII compatible. This keyboard includes a cursor block, a keyboard mouse, and dedicated Windows keys. Additionally, it features a standard floppy disk drive and a port for connecting an external keyboard, which is protectively housed behind a lockable flap. Underneath the display, there are 10 PC function keys, and adjacent to the display, it sports 8 machine function keys. These keys can be connected either to an external socket or directly to the SPS if it comes with an integrated SPS module, further enhancing the unit's versatility and functional reach within industrial settings.

Type Code:

- Product group: BTV
- Series: 30
- Version: 2
- Function type: CNC (with export restriction) - C, CNC (without export restriction) - E, PC - P, SPS - S, Terminal - T
- Keyboard, design: American (US) for MUI - A
- Main memory size (RAM): Not installed with "Terminal" function type - 0, 64 MB - 64
- Machine function keys: 8 machine function keys, right-hand side - R
- Computer specification: Not installed with "Terminal" function type - 0, minimum 1 GB, minimum 200 MHz - 10
- Nominal mains voltage: AC 115..230V, 50..60Hz - F
- Drive: 3.5" drive, 1.44 MB installed - D, Not installed with "Terminal" function type - N
- Firmware: Must be ordered as a separate subitem - FW, Without firmware with "Terminal" function type - NW
