Shop Indramat VAM Collection
-
Original price $2,691.48 - Original price $2,691.48Original price$2,691.48$2,691.48 - $2,691.48Current price $2,691.48VAM42.1-PB-NF-NN-TB-VD-NN-1608-NN
Bosch Rexroth IndramatAvailable, Shipping VariesVAM42.1-PB-NF-NN-TB-VD-NN-1608-NN is an operator panel manufactured by Bosch Rexroth Indramat. Belonging to the VAM Machine Operator Panels series,...
View full detailsOriginal price $2,691.48 - Original price $2,691.48Original price$2,691.48$2,691.48 - $2,691.48Current price $2,691.48 -

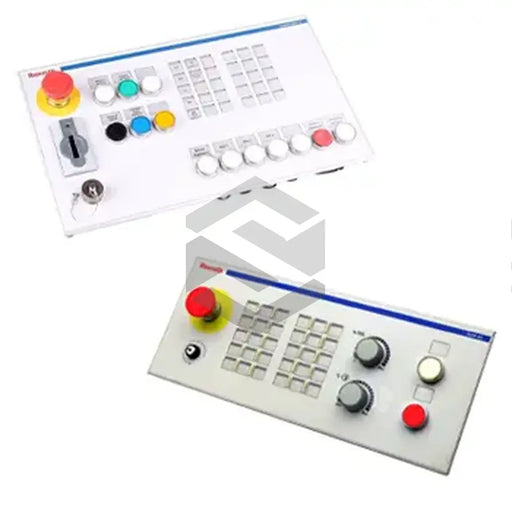

Original price $1,671.99 - Original price $1,671.99Original price$1,671.99$1,671.99 - $1,671.99Current price $1,671.99VAM42.1-PB-NF-AB-TB-VD-EK-1608-D1
Bosch Rexroth IndramatAvailable, Shipping VariesThe Bosch Rexroth Indramat VAM42.1-PB-NF-AB-TB-VD-EK-1608-D1 from the VAM Machine Operator Panels series features a PROFIBUS-DP encoder and a maste...
View full detailsOriginal price $1,671.99 - Original price $1,671.99Original price$1,671.99$1,671.99 - $1,671.99Current price $1,671.99 -
Original price $1,358.70 - Original price $1,358.70Original price$1,358.70$1,358.70 - $1,358.70Current price $1,358.70VAM11.1-PB-NA-AB-TA-VB-1608-NN
Bosch Rexroth IndramatAvailable, Shipping VariesThe VAM11.1-PB-NA-AB-TA-VB-1608-NN from Bosch Rexroth Indramat features a masterboard with 16 inputs, 8 outputs and a PROFIBUS-DP encoder. Part of ...
View full detailsOriginal price $1,358.70 - Original price $1,358.70Original price$1,358.70$1,358.70 - $1,358.70Current price $1,358.70 -
Original price $950.07 - Original price $950.07Original price$950.07$950.07 - $950.07Current price $950.07VAM41.1-PB-NA-AA-TA-VB-BA-1608-NN
Bosch Rexroth IndramatThe VAM41.1-PB-NA-AA-TA-VB-BA-1608-NN, produced by Bosch Rexroth Indramat, is a machine operator terminal used with visualization and operator inte...
View full detailsOriginal price $950.07 - Original price $950.07Original price$950.07$950.07 - $950.07Current price $950.07 -
Original price $9,198.90 - Original price $9,198.90Original price$9,198.90$9,198.90 - $9,198.90Current price $9,198.90VAM81.1-USB-NF-TA-TA-VE-MA-NNNN
Bosch Rexroth IndramatAvailable, Shipping VariesThe Bosch Rexroth Indramat VAM81.1-USB-NF-TA-TA-VE-MA-NNNN is a versatile machine operating panel from the VAM80 series. Offered in both vertical a...
View full detailsOriginal price $9,198.90 - Original price $9,198.90Original price$9,198.90$9,198.90 - $9,198.90Current price $9,198.90

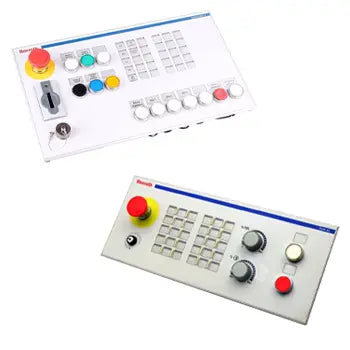

Indramat VAM Panels
VAM10.2 & VAM40.2
The VAM series includes machine control panels designed for standard machine tools. The VAM 10.2 and VAM 40.2 panels are equipped with 30 short-stroke keys. VAM 10.2 features a key-operated authorization switch, an emergency-off button, and rotary controls for feed and spindle override. Unlike the VAM 10.2, the VAM 40.2 does not include a key-operated authorization switch but has an on/off button. For fieldbus communication, VAM 10.2 utilizes a PROFIBUS DP-Slave interface, while VAM 10.3 and VAM 40.3, which are not detailed in function keys, use a Sercos III standard interface. VAM 40.3 also lacks the key-operated authorization switch and instead includes an on/off button, similar to VAM 40.2. These panels are optimized to provide necessary control functions and ensure safety and authorization measures within industrial settings.
VAM11.1
The VAM 11.1 panel is a more streamlined version of the VAM series, designed for controlling machinery. It features an emergency stop button, a four-stage key switch, and a keypad with 15 illuminated keys that can be customized and labeled as needed. Additionally, it has two rotary switches for adjusting feed and spindle speeds. For integration with various control and indicator units, it has seven cut-outs compatible with 22.5 mm components. On its back, the panel boasts a variety of connectivity options, including a 25-pin connector for a portable terminal, a 6-pin connector for a handwheel, and a total of 24 digital inputs and outputs, each operating at 24 volts, facilitating versatile machine interfacing and control.
VAM Technical Data
| Feature | VAM 10.2 | VAM 40.2 | VAM 10.3 | VAM 40.3 |
|---|---|---|---|---|
| Type | Machine control panel for standard machine tools | Machine control panel for standard machine tools | Machine control panel for standard machine tools | Machine control panel for standard machine tools |
| Function keys | 30 Short-stroke keys, 1 Key-operated authorization switch, 1 Emergency-off button, 1 Feed override rotary control, 1 Spindle override rotary control | 30 Short-stroke keys, 1 On/off button | 30 Short-stroke keys, 1 On/off button | 30 Short-stroke keys, 1 On/off button |
| Fieldbus | 1 x PROFIBUS DP-Slave (Standard) | 1 x PROFIBUS DP-Slave (Standard) | 1 x Sercos III (Standard) | 1 x Sercos III (Standard) |
| Logic supply UL | 24 V DC | 24 V DC | 24 V DC | 24 V DC |
| Supply U0 | Max. 0.5 A | Max. 0.5 A | 19 V DC ... 30 V DC | Max. 1.7 A |
| Degree of protection front | IP54 | IP54 | IP54 | IP54 |
