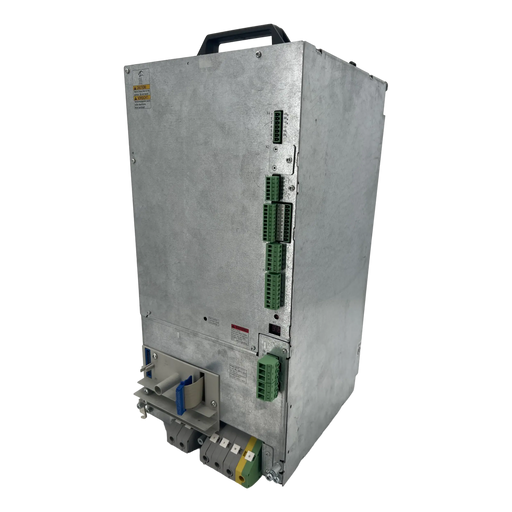

Bosch Rexroth IndramatThe R911190262 (HVE04.2-W075N/S202) is a 75-kilowatt power supply from the HVE series made by Bosch Rexroth Indramat. Built for unregulated DC bus ...
View full detailsOriginal price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a Quote -
Original price $13,445.53 - Original price $13,445.53Original price$13,445.53$13,445.53 - $13,445.53Current price $13,445.53
R911271018

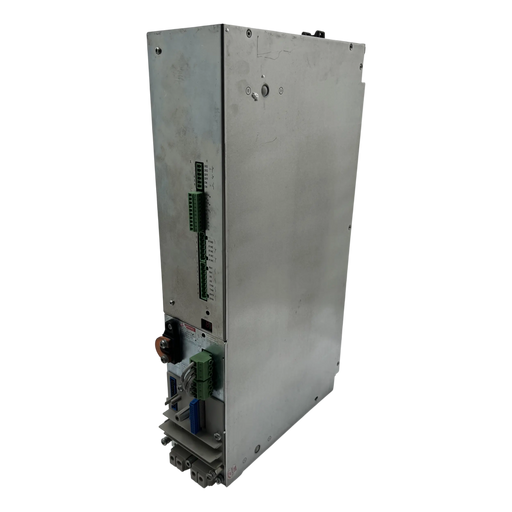

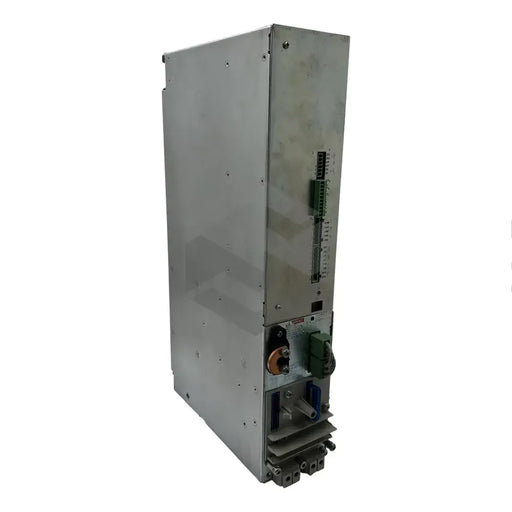

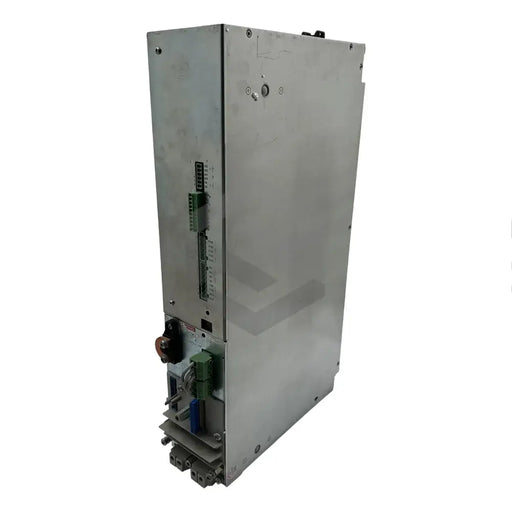

Bosch Rexroth IndramatIn Stock, Ships 1 - 2 DaysManufactured by Bosch Rexroth Indramat, the R911271018 (HVE02.1-W018N) is a 2nd generation power supply unit integrated into the drive system to su...
View full detailsOriginal price $13,445.53 - Original price $13,445.53Original price$13,445.53$13,445.53 - $13,445.53Current price $13,445.53 -
Original price $6,024.24 - Original price $6,024.24Original price$6,024.24$6,024.24 - $6,024.24Current price $6,024.24
R911190002

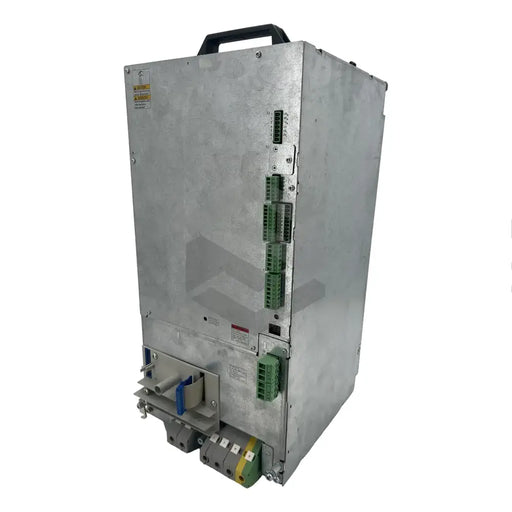

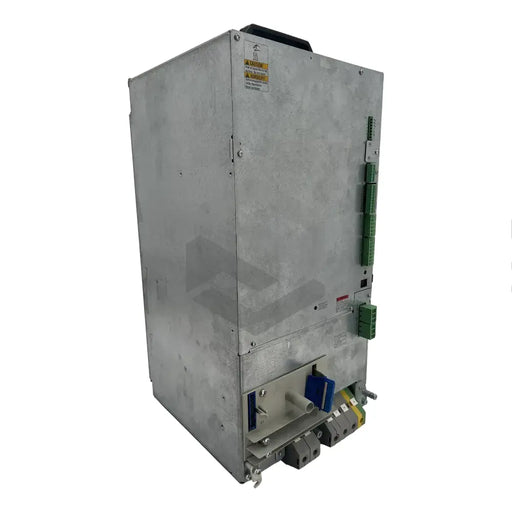

Bosch Rexroth IndramatIn Stock, Ships TodayThe R911190002 (HVE04.2-W075N) Power Supply Unit, created by Bosch Rexroth Indramat, is purpose-built to provide unregulated DC bus voltage to driv...
View full detailsOriginal price $6,024.24 - Original price $6,024.24Original price$6,024.24$6,024.24 - $6,024.24Current price $6,024.24 -
Original price $13,418.85 - Original price $13,418.85Original price$13,418.85$13,418.85 - $13,418.85Current price $13,418.85
R911190001

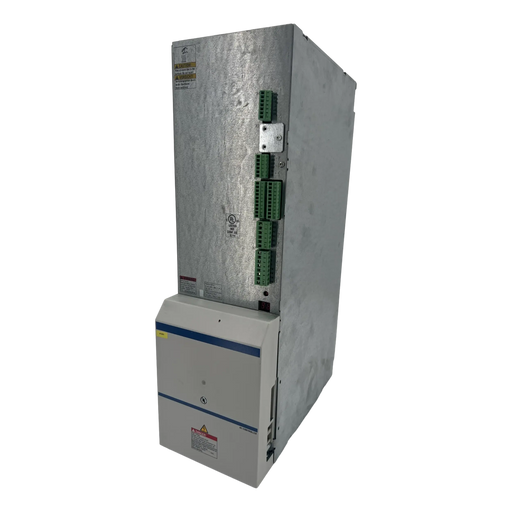

Bosch Rexroth IndramatIn Stock, Ships TodayThe R911190001 (HVE03.2-W030N), a second-generation power supply unit, is made by Bosch Rexroth Indramat for connecting to HDD and HDS drive contro...
View full detailsOriginal price $13,418.85 - Original price $13,418.85Original price$13,418.85$13,418.85 - $13,418.85Current price $13,418.85

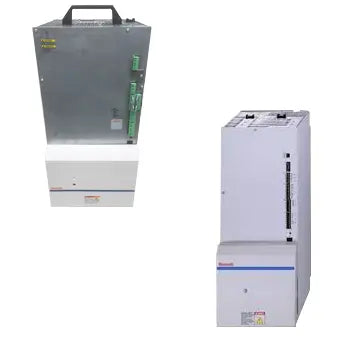

Indramat HVE
The power supply units HVE and HVR rectify 3-phase AC voltage. While HVR units offer regulated DC bus voltage, HVE units provide unregulated DC bus voltage for drive controllers. In generator mode, HVE units dissipate regenerated energy as heat through a bleeder resistor, whereas HVR units feed regenerated energy back into the mains.
HVE and HVR power supply units serve as crucial components within Rexroth Indramat drive and control systems, specifically HDD and HDS types, by facilitating power and control voltage supply. These units are compatible with mains voltages ranging from 3 x AC 380 to 480 V, making them versatile across various power systems without necessitating transformers. The HVR units support motors with a maximum continuous mechanical power of 36 kW, while the HVE units can accommodate motors up to 60 kW. Their high DC bus voltage enables compact unit dimensions without compromising performance. Additionally, each power supply unit integrates a contactor for swiftly shutting down power supply when necessary, ensuring operational safety and efficiency.
Type Code
- Product: HVE
- Line:
- 02
- 03
- 04
- Design: 2
- Cooling mode: Air, internal (with built-in blower) - W
- Nominal power:
- 18 kW - O18
- 30 kW - O30
- 75 kW - O75
- Other design:
- none - N
- increased loading capacity for external DC bus capacitors: - L
- HVE03.x: up to 100 mF
- HVE04.x: up to 200 mF
HVE Technical Data
Designation | Symbol | Unit | Designation of the power supply unit | ||
---|---|---|---|---|---|
Power supply | HVE02.2-W018N | HVE03.2-W030N | HVE04.2-W075N | ||
Input voltage | UN1 | V | 3 x 380 ... 480 (± 10 %) | ||
Frequency | fN1 | Hz | 50 ... 60 (± 2 Hz) | ||
DC bus voltage | UZW | V | 530 ... 670 (± 10 %) | ||
Regenerated power (Bleeder power) | |||||
Continuous bleeder power | PBD | kW | 1 | 1,5 | 2,5 |
Peak bleeder power | PBS | kW | 100 | 100 | 270 |
Maximum regenerated energy | WMAX | kWs | 70 | 100 | 250 |
Power loss | |||||
Power loss at max. continuous output (without bleeder losses) | PV | W | 250 | 355 | 625 |
Basic losses | PVG | W | 125 | 175 | 175 |
Power losses per kW DC bus continuous power | PV/KW | W/kW | 7 | 6 | 6 |
Ambient Conditions
Conditions of use | Symbol | Unit | Specification |
---|---|---|---|
Permissible ambient temperature with rated data | TA1 | °C | +5 ... +45 |
Maximum permissible ambient temperature with derated data | TA2 | °C | +55 |
Storage and transport temperature | TL | °C | -30 ... +85 |
Installation elevation without power reduction | 1000 m above sea level | ||
Maximum permissible relative humidity | 95 % | ||
Permissible absolute humidity | 25 g water/m3 air | ||
Protection category | IP 10 per EN60529 / IEC529 | ||
Degree of dirt contamination | no dirt contamination, no condensation |
