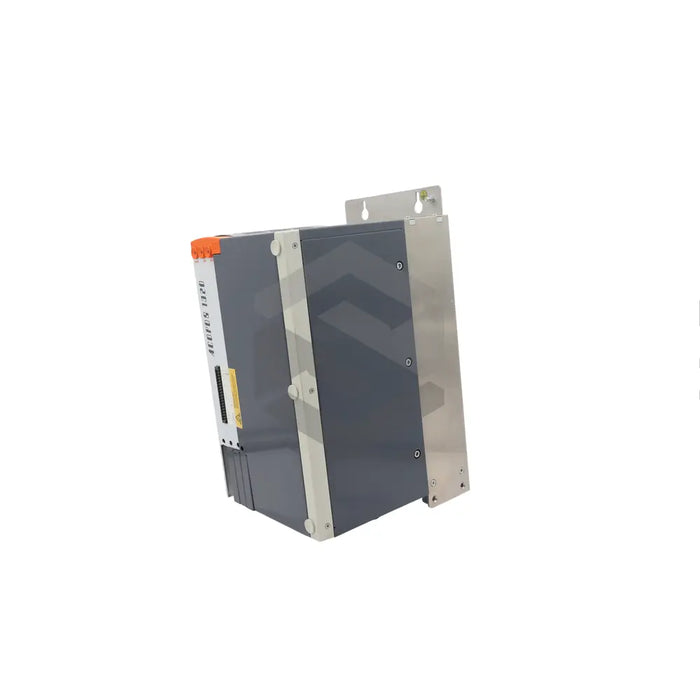

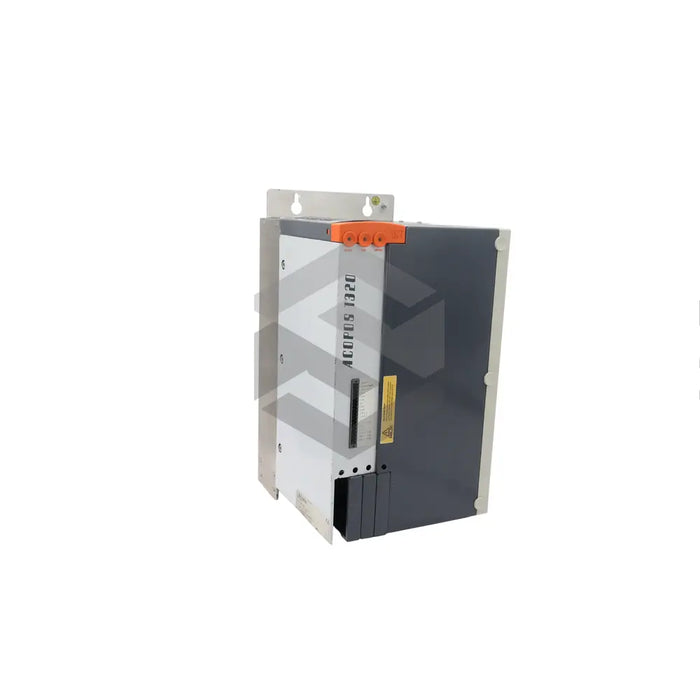

S image of 8V1320.001-2

8V1320.001-2

by B & R Automation
$5,253.89 - $10,770.72
$10,770.72
$5,253.89 - $10,770.72
$10,770.72

In Stock, Ships 1 - 3 Days

The 8V1320.001-2, a product of B & R Automation, is a high-quality Acopos servo drive. Made of premium materials, it can operate up to 55 degrees Celsius and at a height of 2000 meters above sea level. Weighing in at 10.6 kg, it's suitable for compact locations and harsh environments. With an input voltage range of 400 to 480 VAC and a motor connection with a nominal switching frequency of 10 kHz, it provides an efficient and precise operation, outperforming conventional motor control systems. Though it offers limited protection against dust and no protection against liquids due to its IP20 class, it's lightweight, small in size, and designed with an integrated line filter, making it ideal for space-limited applications. The device has a DC bus capacitance of 1645 microfarads, a brake resistor with a minimum braking resistance of 15 ohms, and is protected against overload and short circuits.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B & R Automation

Model

8V1320.001-2

Material

High-Quality Materials

Operating Temperature

Up to 55 degrees Celsius

Maximum Operating Height

2000 meters above sea level

Weight

10.6 kilograms

Input Voltage Range

400 to 480 VAC

Motor Connection Nominal Switching Frequency

10 kHz

Motor Connection Max Output Frequency

600 kHz

Maximum Installed Load

30 kVA

Nominal Input Voltage

24 VDC

Protection Class

IP20

DC Bus Capacitance

1645 microfarads

Brake Resistor Braking Resistance

15 ohms

Width

200 mm

Height

375 mm

Depth

234 mm

Circuit Board Feature

Partially Coated with overload and short circuit protection
