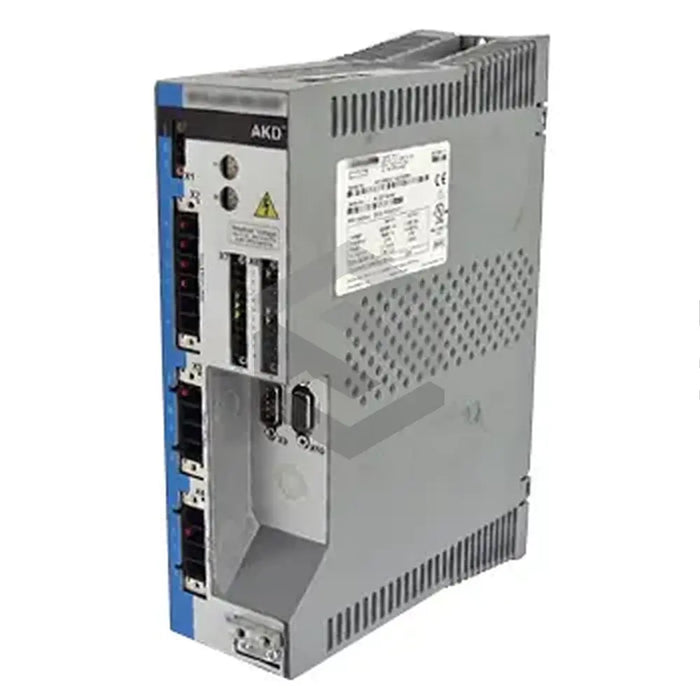

P image of AKD-P00307-NBPN-0000

AKD-P00307-NBPN-0000

by Kollmorgen
$2,500.00 - $2,500.00
$2,500.00
$2,500.00 - $2,500.00
$2,500.00
Condition: Refurbished

In Stock, Ships Fast

Kollmorgen's AKD-P00307-NBPN-0000 is a position indexer servo drive requiring Microsoft .NET Framework 2.0 to operate its WorkBench software. With switches S1 and S2, the drive's IP address can be readily established. This three-phase servo drive runs on a 240/480VAC power supply and 24V control logic. Rated for operating in temperatures from 0°C to +40°C and under an altitude of 1,000 meters above sea level, it boasts a five-second peak time and a 1.5MHz update rate. This product is not suitable for use in explosion-prone environments, offshore applications or on ships. Handling instructions advise against storing or transporting the drive near insulating materials and exceeding the maximum stacking height. Key technical details include a 2.5kHz to 4kHz maximum current loop bandwidth, 9A peak output current, and 340V to 680V DC bus link voltage. Sound emissions range from 34dB(A) at low speed to 43dB(A) at high speed.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Name

AKD-P00307-NBPN-0000

Product Type

Position Indexer Servo Drives

Software Requirement

Microsoft .NET Framework 2.0

Supply Voltage Rating

240VAC/480VAC

Control Logic

24V

Supported Connection

Three-Phase

Peak Time

5 seconds

Update Rate

1.5MHz

Operating Temperature

0°C to +40°C

Maximum Installation Altitude

1000 meters above sea level

Current Loop Bandwidth

2.5kHz to 4kHz

Peak Output Current

9A +/-3%

Analog Input's Common-Mode Rejection Ratio

Over 30dB at 60Hz

DC Bus Link Voltage

340V to 680V

Noise Emission

34dB(A) at low speed and 43dB(A) at high speed
