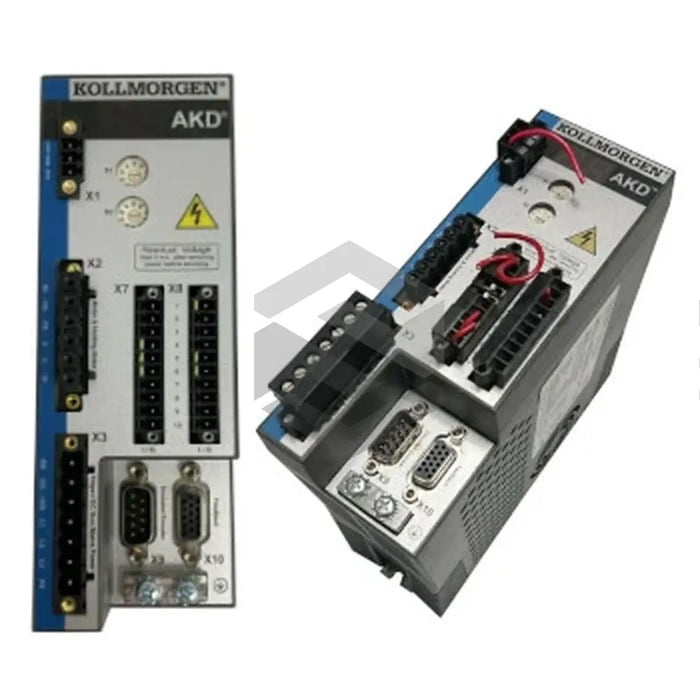

series image of AKD-P02407-NBPN-0000

AKD-P02407-NBPN-0000

by Kollmorgen
Request a quote
Kollmorgen's AKD-P02407-NBPN-0000 is a non-extensible servo drive with a standard casing and a rated RMS output current rating of 24 Arms. It requires external EMC filtering conducted through shielded cables with a star point shield connection. Weidmuller KLBU shield clamps are recommended for use with this device. It allows direct cable shielding connection with shield connection clamps and grounding plates, and requires a separate, non-residential power supply for each unit connected to the same DC bus link voltage. The device uses a minimum 500mm cable length from the KCM module, and utilizes an X4 RS 422 interface for data communication. The hardware enable signal at X8 does not lead to a controlled stop, rather it turns the power stage off immediately. Finally, the device supports most standard feedback devices connected to the X10 connector.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Product Code: AKD-P02407-NBPN-0000
  • Extension Scope: None
  • Housing: Standard
  • Required Cables: Shielded cables with star point shield connection
  • EMC Filter: External
  • Rated RMS output current: 24 Arms with +/-3% tolerance
  • Recommended Shield Clamps: Weidmuller KLBU
  • Connectivity: Direct connection of cable shielding with shield connection clamps and grounding plates
  • Motor Connection: Via X2 Connector
  • Auxiliary Supply: External electrically isolated 24 VDC power supply
  • Residential Connection: Not Permitted
  • Power Connection for DC bus link: Individual for each drive
  • Cable Length: At least 500mm from KCM module
  • Interface: X4 RS 422 controlled by terminal software
  • Hardware Enable Signal: Turns off power stage immediately, does not bring drive to controlled stop
  • Brake Function: Enabled through parameter
  • Feedback Devices: Supports most standard feedback devices connected to X10 connector.
