S image of AKD2G-SPE-7V12S-A100-0000-A

AKD2G-SPE-7V12S-A100-0000-A

by Kollmorgen
$13,715.38 - $13,715.38
$13,715.38
$13,715.38 - $13,715.38
$13,715.38
Condition: Unused Surplus

Available, Shipping Varies

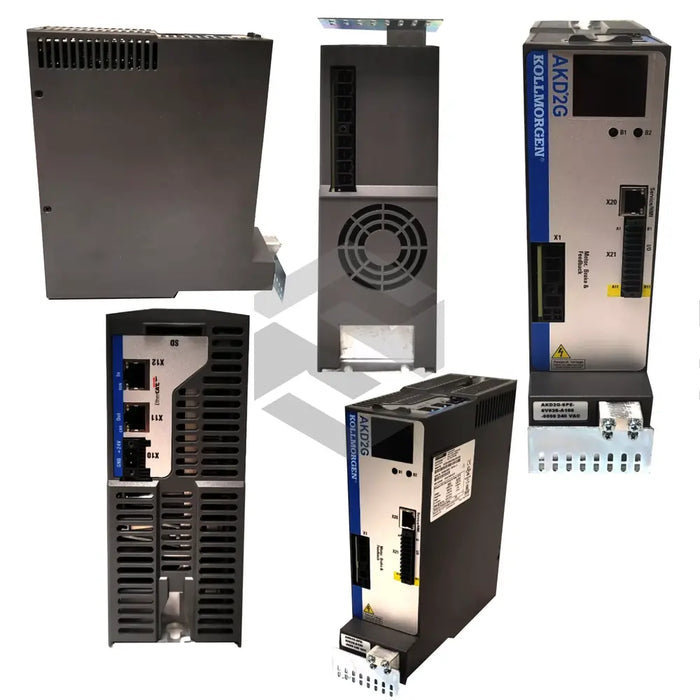

The Kollmorgen AKD2G-SPE-7V12S-A100-0000-A is a servo drive specifically built for industrial applications. It drives synchronous servo motors under closed-loop control for speed, torque, and positioning. The device is equipped with an internal fan and operates with either a three-phase industrial power supply network or a DC supply. It should be installed using copper conductors that comply with IEC 60204 standards, within a control cabinet of minimum size 406 x 406 x 254 mm, boasting a protection rating of IP 54 or above. It supports IEC 60204 defined Stop and Emergency Off functions and can withstand ambient temperatures between 0 to 40°C, or up to 50°C if the internal regen resistor isn't used. It offers a leakage current above 3.5 mA and a max voltage rise speed of 7.0 kV/μs. It also comes with a built-in regenerative circuit for collaboration with other drives of the same series and an LCD display with user instructions.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Name

AKD2G-SPE-7V12S-A100-0000-A

Usage

Driving synchronous servomotors

Inbuilt Fan

Yes

Usage Environment

Electrical plants or industrial machines

Power Supply

Three-phase industrial network or DC supply

Wiring Material

Copper (in accordance with IEC 60204)

Usage Limitations

Non-explosive, non-conductive/corrosive environments

Leakage Current

>3.5 mA

Supported Control Functions

Stop, Emergency Off, Emergency Stop (as per IEC 60204)

Operating Temperature

0 °C to 40 °C (with internal regen resistor), 0 °C to 50 °C (without internal regen resistor)

Control Cabinet Size

406 x 406 x 254 mm (W x H x D)

Protection Rating (Control Cabinet)

IP 54 or higher

Adherence to Standards

3K3 environmental class (IEC 61800-2)

Voltage Rise Speed

7.0 kV/μs

DC Bus Link Voltage

620 VDC

Operability

Can be operated with multiple other drives of the same series using inbuilt regenerative circuit

Display Feature

LCD with help screen on pressing B2 button.
