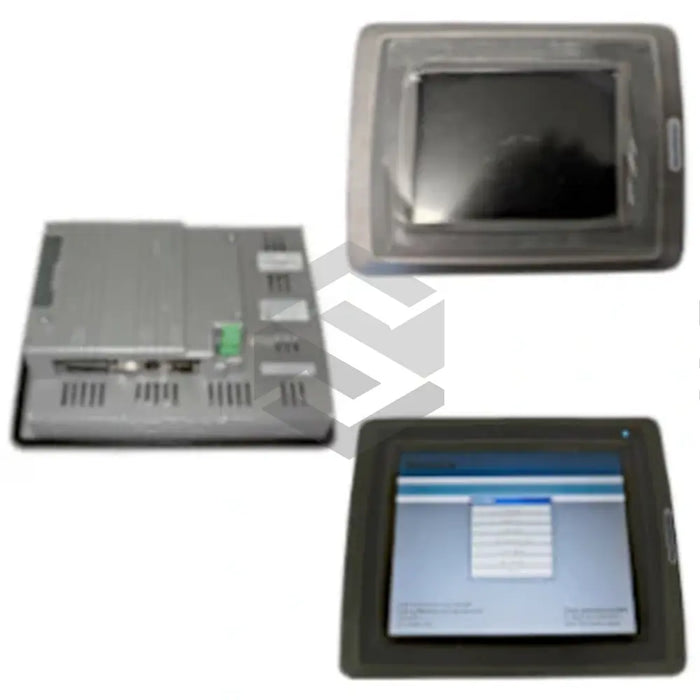

series image of AKI-CDT-MOD-10T-000

AKI-CDT-MOD-10T-000

by Kollmorgen
$3,417.53 - $3,417.53
$3,417.53
$3,417.53 - $3,417.53
$3,417.53
Available, Shipping Varies
The Kollmorgen-manufactured AKI-CDT-MOD-10T-000 is a lightweighing 2.1 kg graphic operator terminal. It employs a polyester-on-glass touchscreen using a TFT-LCD display with 64K colors and resolution of 800x600 pixels. The device is fitted with type I & II compact flash slots, USB 1.1 slot, and a shielded RJ-45 Ethernet interface. It has a mounting depth of 58 mm, with a front panel dimension of 302 mm x 228 mm x 6 mm. Its robust frame and casing, constructed from powder-coated aluminium, can withstand various environmental exposures. The machine is also rigged with an IP 66 protected front panel and IP 20 protected rear. The terminal operates efficiently within a temperature range of 0 - 50o C when mounted vertically, or 0 - 40o C horizontally. A 24V DC power supply in line with IEC 61558-2-4 and IEC 60950 powers it. For safe usage and longevity, qualified personnel should exclusively handle maintenance and servicing.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Product Type: Graphic Operator Terminal
  • Weight: 2.1 kg
  • Display Type: TFT-LCD
  • Display Colours: 64K
  • Display Resolution: 800 x 600 pixels
  • Backlight Lifespan: 50000 hours at 25o C
  • Interface Slots: Type I & II Compact Flash, Type-A USB 1.1, Shielded RJ-45 Ethernet
  • Mounting Depth: 58 mm (158 mm including clearance)
  • Front Panel Dimension: 302 mm x 228 mm x 6 mm
  • Frame and casing Material: Powder-coated aluminium
  • Front Panel Protection: IP 66
  • Back Panel Protection: IP 20
  • Power Supply: 24 Volts DC
  • Operating Temperature: 0 – 50o C (vertical installation), 0 – 40o C (horizontal installation)
  • Storage Temperature: -20o C to 70o C.
