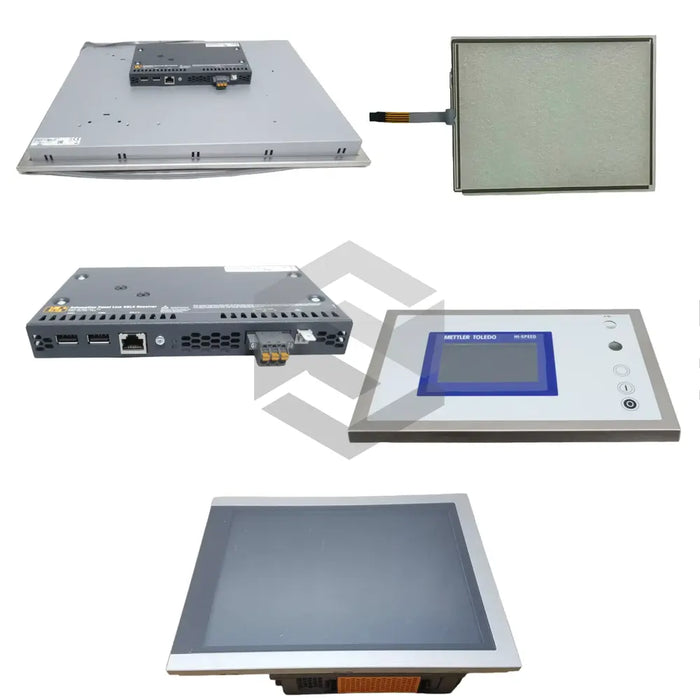

S image of 5AP1120.101E-000

5AP1120.101E-000

by B & R Automation
$6,183.83 - $10,839.30
$10,839.30
$6,183.83 - $10,839.30
$10,839.30

In Stock, Ships Fast

The 5AP1120.101E-000 is a high-caliber AP1000 panel engineered by B & R Automation for integration in control systems, including the Automation panel 1000, Panel PC 900, Panel PC 2100, and Panel PC 3100. Utilizing a 10.1-inch diagonal thin-film-transistor color touchscreen display, the panel offers a resolution of 1280x800 pixels (WXGA) and can showcase up to 16.7 million colors. This lightweight panel, weighing just 1900g, features an aluminum-coated frame and a polyester keypad overlay. With an LED-backlit display adjustable from 25 to 500cd/m², the panel has an impressive display contrast ratio of 1000:1. Certified as a Pollution Degree 2 device, this panel is eco-friendly and is designed to operate efficiently in temperatures from 0°C to 55°C and can be stored from -25°C to +70°C. It carries an IP 65 rating, affirming complete dust-protective front-end and supports hassle-free installation inside a control cabinet.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturing Company

B & R Automation

Product Model

5AP1120.101E-000

Panel Type

AP1000

Weight

1900g

Height

191 mm

Width

279 mm

Screen Type

Thin-film-transistor color display

Screen Size

10.1 inches

Screen Resolution

1280 x 800 pixels (WXGA)

Number of Colors Displayed

16.7 million

Front End Material

Aluminum coated frame

Keypad Overlay Material

Polyester

Backlight Type

LED

Backlight Brightness

25 to 500cd/m²

Assemble Compatibility

Automation panel 1000, PPC 2100, and the PPC 3100

Pollution Degree

2

Contrast Ratio

1000:1

Gasket Thickness

3mm

Storage Temperature

-25°C to +70°C

Optimal Working Temperature

0°C to 55°C

Front side Protection

IP 65 rated

Installation

Control cabinet
