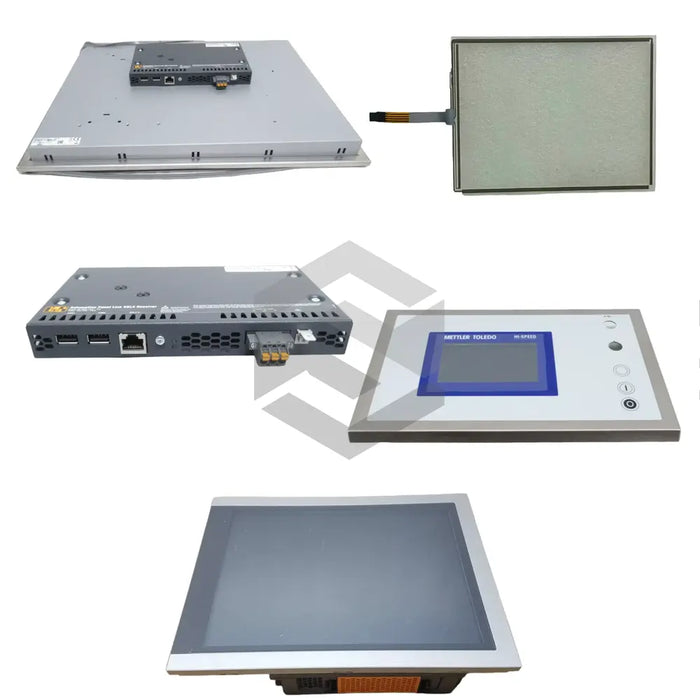

series image of 5AP1120.121E-000

5AP1120.121E-000

by B & R Automation
$4,683.49 - $4,683.49
$4,683.49
$4,683.49 - $4,683.49
$4,683.49
Available, Shipping Varies
The 5AP1120.121E-000 is a versatile automation panel by B&R Automation, designed to boost functionality and efficiency in AP 1000, Panel PC 900, Panel PC 2100, and Panel PC 3100 systems. Displaying data on a 12”1 landscape screen, it utilizes analog resistive touch technology for varied touch inputs and low power consumption. The panel's coated aluminum frame houses enough hardware to deliver a WXGA resolution output of 1280 x 800 pixels. It weighs 2,300g and features thermal sensors to prevent heat damage. It's designed for indoor use, according to UL 50 standards, with a dust-proof, touch-proof front that resists water jets (IP 65 rating according to EN 60529). The panel's LED backlight ranges from 40-400 cd/m² with a half-brightness lifespan of 50,000h. The panel operates on a nominal voltage of 24V DC with a ±25% tolerance.
30 Day Warranty
Technical Specifications
  • Manufacturer: B & R Automation
  • Product Model: 5AP1120.121E-000
  • Product Line: AP 1000 automation panel series
  • Display Format: Landscape
  • Display Size: 12 inch
  • Touch Feature: Single-touch
  • Touch Technology: Analog resistive
  • Resolution: WXGA (1280 x 800 pixels)
  • Weight: 2,300g
  • Frame Material: Coated aluminum
  • Safety Features: Thermal sensors, Control cabinet installation
  • Front Design: 4X indoor use (based on UL 50)
  • Backlight: LED, Dimmable (40 cd/m² - 400 cd/m²)
  • Half-brightness Time: 50,000 h
  • Touchscreen Transmittance: 81% ±3% (AMT-type)
  • Protection Rating (front part): IP 65 (EN 60529)
  • Operating Voltage: 24V DC (±25% tolerance)
