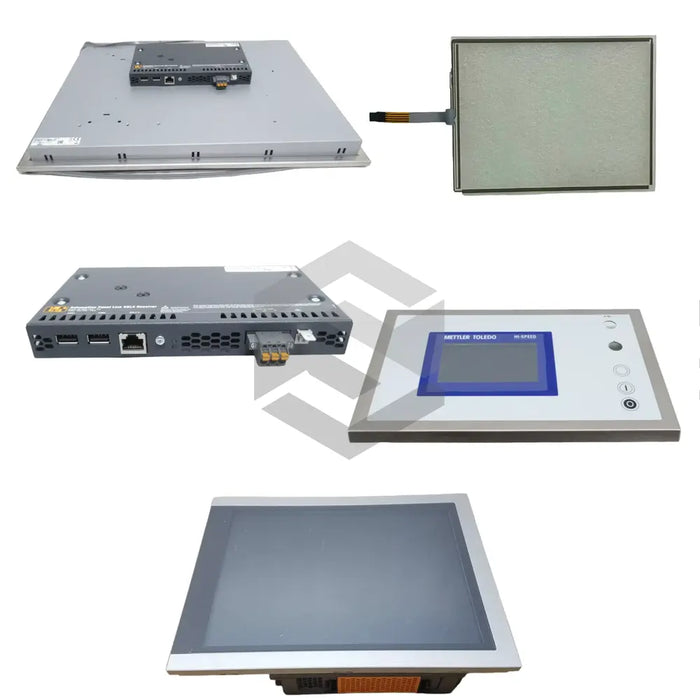

S image of 5AP1120.156B-000

5AP1120.156B-000

by B & R Automation
$8,181.26 - $13,238.26
$13,238.26
$8,181.26 - $13,238.26
$13,238.26

In Stock, Ships Fast

B & R Automation's 5AP1120.156B-000 is a member of the AP1000 automation panel range, aimed at enhancing productivity in diverse operations. Features include a 15.6" single-touch analog resistive touchscreen, possessing an 81% ±3% transmittance equipped with a B&R touch controller supporting hardware calibration. The LED backlight display operates at half-brightness for 70,000 hours with adjustable brightness from 40 cd/m² to 400 cd/m². High-resolution graphics are provided via a 1366 x 768 resolution HD display, housed in a coated aluminum frame with a 3mm built-in gasket. Embedded thermal sensors provide vital protection from overload. Designed for indoor use, the front part is UL 50 Type 4X certified with an IP 65 rating to prevent water jet and dust ingress and it is touchproof. However, the back is only IP 20-rated. The panel operates on a 24V DC nominal voltage, ±25%, with a 3A nominal current.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B & R Automation

Product Code

5AP1120.156B-000

Product Type

Automation Panel

Series

AP1000

Display Size

15.6 inches

Touchscreen Type

Single-touch, analog resistive technology

Transmittance

81% ±3%

Touch Controller

B&R hardware calibration supported

Backlight Type

LED

Half-brightness Time

70,000 h

Brightness Range

40 cd/m² to 400 cd/m²

Display Resolution

1366 x 768 pixels

Frame Material

Coated Aluminum

Built-in Gasket

3mm

Temperature Protection

Thermal sensors

Front Protection Rating

UL 50 Type 4X for indoor use, IP 65

Back Protection Rating

IP 20

Operating Voltage

24V DC ±25%

Nominal Current

3A.
