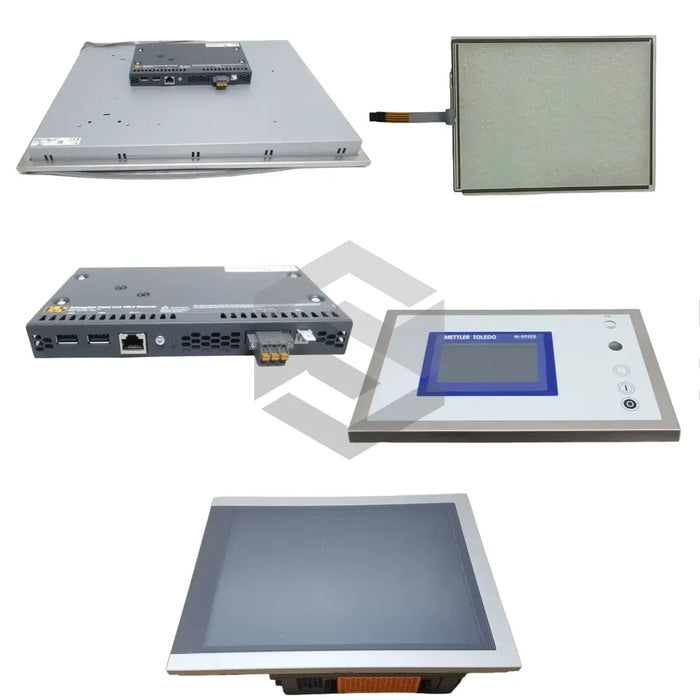

series image of 5AP920.1906-K08

5AP920.1906-K08

by B & R Automation
$0
$1,012.50 - $1,012.50
$1,012.50
$1,012.50 - $1,012.50
$1,012.50
In Stock, Ships 3 - 5 Days
 More payment options
The 5AP920.1906-K08, manufactured by B&R Automation, is a member of the AP920 series of industrial automation panels. It features a 19-inch resistive touch display, three USB 2.0 ports, and operates on a rated voltage of 24 Volts DC with a variation allowance of 10%. The panel claims a maximum current of 3.2 Amps and typically consumes around 27 Watts of power. Its maximum power consumption is between 38 and 48 Watts. The panel's USB ports offer a variety of transfer rates, with a maximum of 480 Mbps and can handle a current of 500 milliamps per connection. It operates fan-free and includes a front panel meeting the IP65 standard while the back meets the IP20 standard. The panel, constructed from metal and coated in a Pantone 432CV-esque material, maintains operation in temperatures ranging from 0 to 40 degrees Celsius. Its overall dimensions are 421mm (height) by 63mm (depth) by 527mm (width), with a total weight of 8100 grams.
30 Day Warranty
Technical Specifications
  • Manufacturer: B & R Automation
  • Product Model: 5AP920.1906-K08
  • Product Type: Industrial Automation Panel
  • Display Size: 19 inches
  • Touch Screen Type: Resistive touch
  • Input Voltage: 24 Volts DC (10% Tolerance)
  • Maximum Current: 3.2 Amps
  • Typical Power Consumption: 27 Watts
  • Maximum Power Consumption: 38 to 48 Watts (with USB)
  • Galvanic Isolation Support: Yes
  • USB Ports: Three USB 2.0
  • USB Transfer Rates: 1.5 Mbps, 12 Mbps, 480 Mbps
  • Maximum USB Current-Carrying Capacity: 500 milliamps per port
  • Operation: Fan-free operation
  • Upgrade Option: Display Link cards of PPC300
  • Front Panel Rating: IP65
  • Back Panel Rating: IP20
  • Working Temperature Range: 0 to 40 degrees Celsius
  • Storage Temperature Range: -25 to 60 degrees Celsius
  • Transport Temperature Range: -25 to 60 degrees Celsius
  • Housing Material: Metal (Coated with Pantone 432CV-like material)
  • Frame Material: Naturally anodized aluminum
  • Panel Overlay Material: Polyester
  • Gasket Feature: Flat gasket around the front display
  • Height: 421 millimeters
  • Depth: 63 millimeters
  • Width: 527 millimeters
  • Weight: 8100 grams
