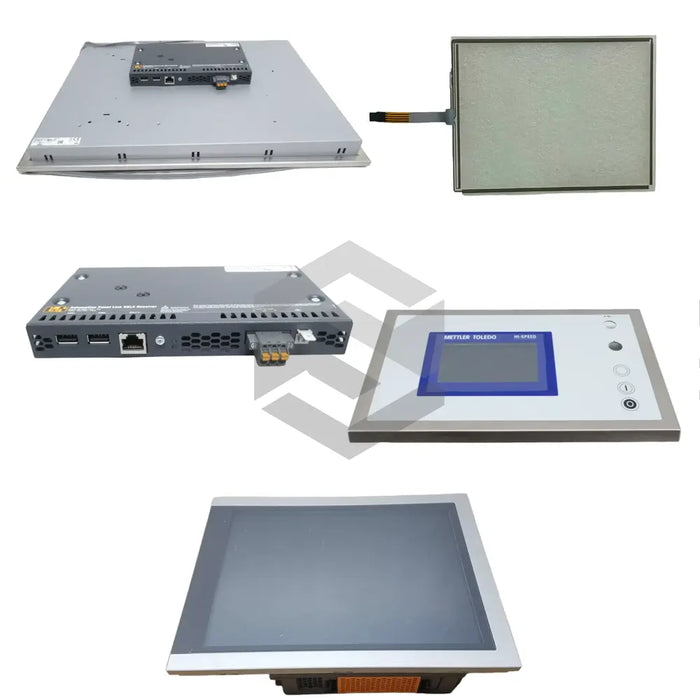

S image of 5AP923.1215-00

5AP923.1215-00

by B & R Automation
$13,906.60 - $15,297.26
$15,297.26
$13,906.60 - $15,297.26
$15,297.26

In Stock, Ships 1 - 3 Days

The B&R 5AP923.1215-00 is an automation panel designed for various PPC and AP9x3 systems, characterized by a 12.1-inch XGA color display with a touchscreen based on analog resistive technology. The display provides a resolution of 1024 x 768 pixels and supports 16.7 million colors, offering a contrast ratio of 700:1. The LED backlight is adjustable, with brightness levels between 25 to 500 cd/m2 and a half-brightness time of 50,000 hours at ambient temperatures of 25 °C. The front of the unit offers IP65 protection against dust and moisture intrusion, while the back has an IP20 rating. Encased in a coated aluminum frame with a polyester panel overlay, the panel measures 315 mm in width and 239 mm in height, and weighs 2200 grams. It is designed for industrial applications and should be installed and maintained by appropriately trained personnel to ensure proper functioning and longevity. Avoidance of dusty conditions and corrosive gases is essential.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B & R Automation

Product Model

5AP923.1215-00

Industrial Application

Yes

Compatible Systems

AP9x3, PPC900, PPC2100, PPC2200, PPC3100

Display

12.1 inch XGA color display

Touchscreen Technology

Analog resistive

Touchscreen Controller

B&S serial with 12-bit resolution

Color Support

16.7 million colors

Display Resolution

1024 x 768 pixels (XGA)

Contrast Ratio

700:1

Backlight Technology

LED

Brightness Range

25 to 500 cd/m2

Half-brightness Time

50,000 hours at 25 degrees Celsius

Front Protection Rating

IP65

Back Protection Rating

IP20

Frame Material

Coated aluminum

Panel Overlay Material

Polyester

Panel Features

3 millimeter fixed gasket

Dimensions

Width 315 mm x Height 239 mm

Weight

2200 grams

Special Conditions

Avoid use in dusty conditions, protect from corrosive gases

Dust and Moisture Protection

Front protected against dust ingress and moisture, back must be protected

Installation Requirements

Only trained personnel allowed to install
