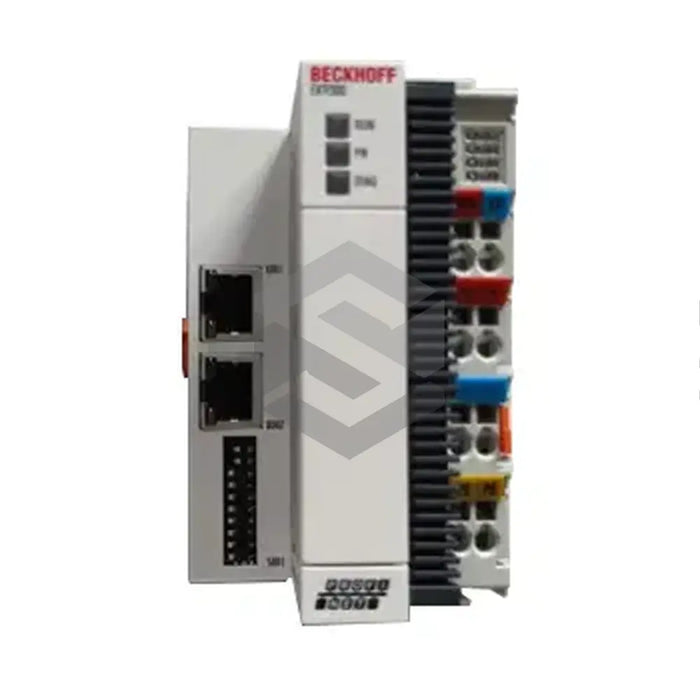

P image of AX5106-0000-0202

AX5106-0000-0202

by Beckhoff
$2,057.35 - $6,858.60
$6,858.60
$2,057.35 - $6,858.60
$6,858.60

Available, Shipping Varies

The AX5106-0000-0202 is a single-channel servo drive from Beckhoff's AX5000 series, designed to regulate position, speed, and torque in both synchronous and asynchronous motors. Created specifically for integration within an electrical system or machine, it should be handled only by professionals well-versed in automation and control technology. The device, weighing 5kg, delivers a rated current of 6A per channel and is operational at supply voltages of 3 x 100 ... 480V AC. CAUTION: Its surface can reach temperatures beyond 50 degrees during operation, so allow a 15-minute cooling period to avoid injury. Adequate air circulation around its IP 20-classified enclosure is crucial for optimal cooling. Its operational ambient temperature range is 0 to 50 degrees, while its storages and transport range is -25 to 70 degrees, all up to a maximum height of 1000 meters above sea level. Purchase the AX5106-0000-0202 at Wake Industrial.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product

AX5106-0000-0202

Manufacturer

Beckhoff

Series

AX5000

Usage

Position, speed, and torque control

Installation Requirements

Automation and control technology knowledge

Max Surface Temperature

50 Degrees Celsius

Channels

Single

Rated Current

6A per phase

Rated Output Current

4.5A

Min Rated Motor Current

1A

Rated Supply Voltage

3 x 100 … 480 V AC

Max DC Link Voltage

890V DC

Peak Output Current

13A

Continuous Braking Power

150W

Max Braking Power

14kW

Power loss

85W

System Bus

EtherCAT

Weight

5kg

Operating Ambient Temperatue

0 to 50 degrees Celsius

Storage and Transport Temperature Range

-25 to 70 degrees Celsius

Max Installation Height

1000m above sea level

Protection Category

IP 20

Installation Position

Vertical
