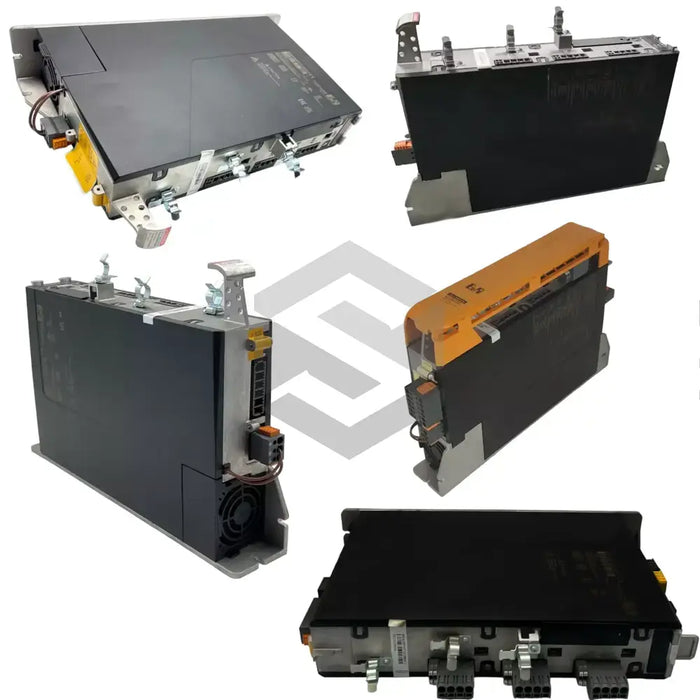

8EI8X8HWD10.0600-1
The 8EI8X8HWD10.0600-1 is a servo drive produced by B&R Automation for the 8EI Servo Drives series within the ACOPOS P3 8EI servo drive product range. This module supplies controlled three-phase power to servo motors. It also monitors feedback so position, speed, and torque can be tightly regulated in automated machinery. The unit is suited for compact multi-axis systems where coordinated motor control is required in a small cabinet footprint. It can be used in handling, packaging, and other motion-control equipment that depends on fast electronic response from servo axes.
It accepts an input range of 3x 200–480 VAC, allowing the same hardware to operate from a broad range of industrial power systems without a separate transformer. The drive is a 2-axis module, so two motor channels share a common DC bus and control electronics in one housing, which helps reduce panel space. Each axis can deliver a continuous phase current of 8.8 Aeff, providing stable torque during steady-state operation and predictable current capacity for sustained motion. The housing is rated IP20, so live parts are guarded when the unit is correctly installed in an enclosure. For energy management during rapid deceleration, an internal braking resistor converts regenerated power into heat and removes the need for an external resistor under normal duty cycles.
The module relies on hardwired STO safety technology with encoder to provide a certified torque-off path that disables both axes when external safety circuitry is triggered. Installation is arranged for wall mounting, and the included Connector Set 1 with a 1-row header supports power and feedback wiring in a straightforward layout. A molded front cover is fitted over the front section, and the drive ships without plug-in option cards. The connector arrangement supports orderly cable routing in cabinets where the front of the drive must remain accessible. This keeps the supplied unit in its standard hardware form during installation and normal operation.
