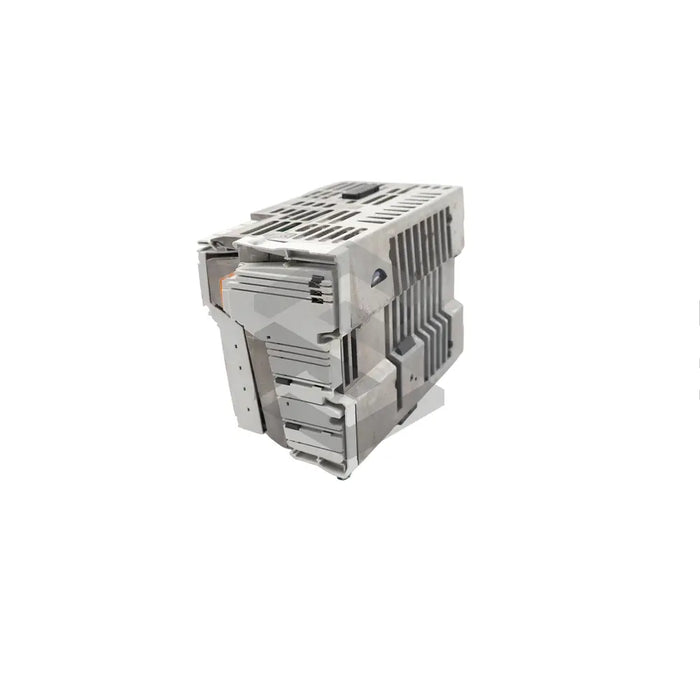

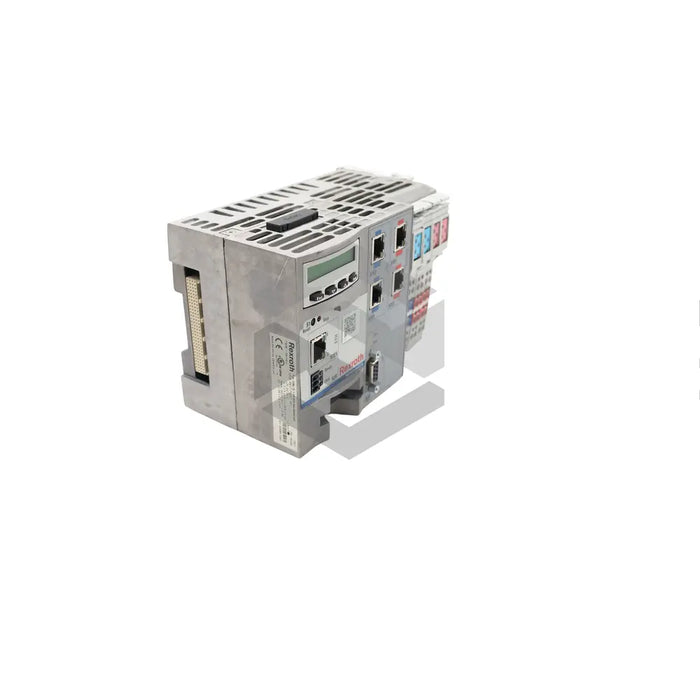

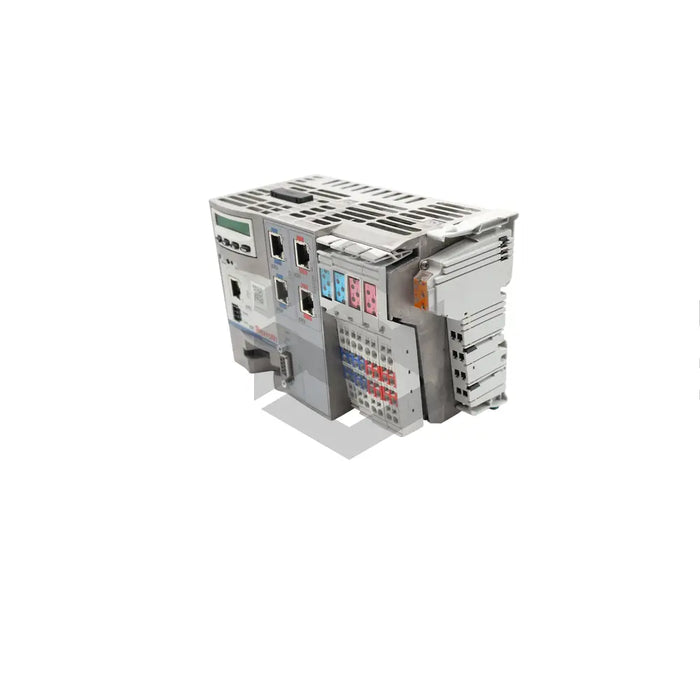

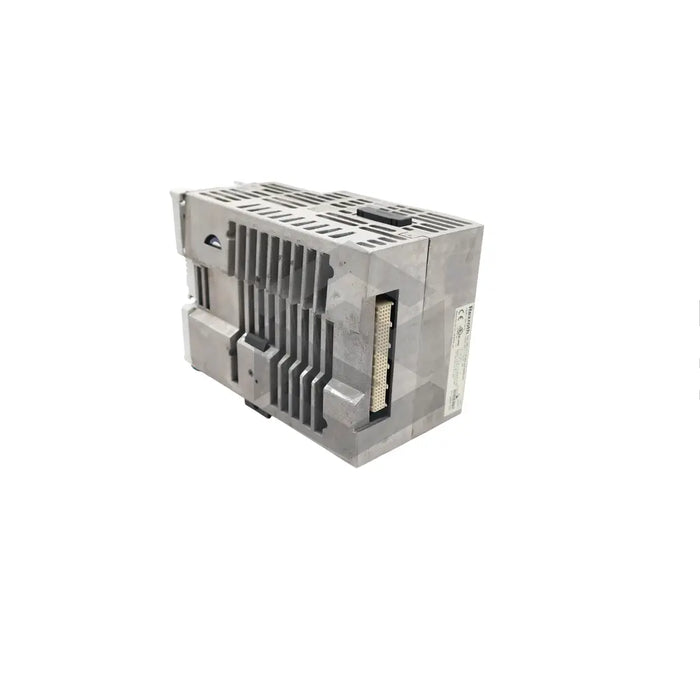

manufacturer image of CML75.1-3P-905-NA-NNNN-NW

CML75.1-3P-905-NA-NNNN-NW

by Bosch Rexroth Indramat
$12,799.53 - $12,799.53
$12,799.53
$12,799.53 - $12,799.53
$12,799.53
Available, Shipping Varies
Bosch Rexroth's CML75.1-3P-905-NA-NNNN-NW is a compact, versatile industrial automation control unit boasting a diverse range of features and interfaces. Weighing approximately 1.5 kg, this robust, IP20-protected against solid particles up to 12.5mm, device is equipped with a 1.75 GHz Intel Atom E3827 DualCore processor. It's capable of resisting 15g shocks (EN 60068-2-27). The controller accepts a DC link voltage of 24 VDC within a range of 19 to 30VDC, with an additional ±5% residual ripple. Communication is through the efficient SERCOS 3 and PROFIBUS interfaces, supplemented by optional Ethernet and serial interfaces. The unit cools via ambient air, and offers 8 digital inputs and outputs. It has a 1-line operating panel display with 4 keys, 4GB of DRAM memory, 16MB buffered memory, and a compact flash card slot. Typically used with CNC machines, food processing, packaging, and assembly systems, it operates at an ambient temperature range of +5 to +55 degrees Celsius.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth
  • Product Type: Industrial Automation Equipment
  • Model Number: CML75.1-3P-905-NA-NNNN-NW
  • Weight: 1.5 kg
  • Shock Resistance: 15 g according to EN 60068-2-27
  • Protection Category: IP20
  • Processor: 1.75 GHz Intel Atom E3827 DualCore
  • Electrical Connection: DC link voltage of 24 VDC
  • Supply Voltage Range: 19 VDC to 30VDC
  • Interface: SERCOS 3, PROFIBUS
  • Additional Interfaces: 1 Ethernet interface, 1 Ready contact interface, Optional serial interface
  • Cooling Method: Ambient air
  • In-built Memory: 4 GB DRAM, 16 MB buffered
  • Additional Memory Slot: Compact flash card slot
  • Display Panel: 1-line display and 4 keys
  • Usage: CNC machines, food processing, packaging, assembly systems
  • Design: Standard, without firmware
  • Battery: 3V Lithium, service life of 5 years
  • Ambient Temperature Range: +5 to +55 degree Celsius.
