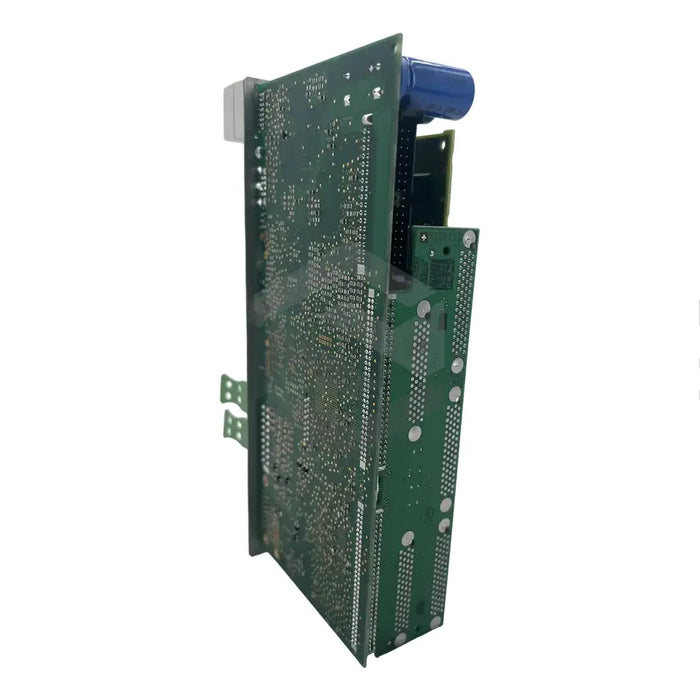

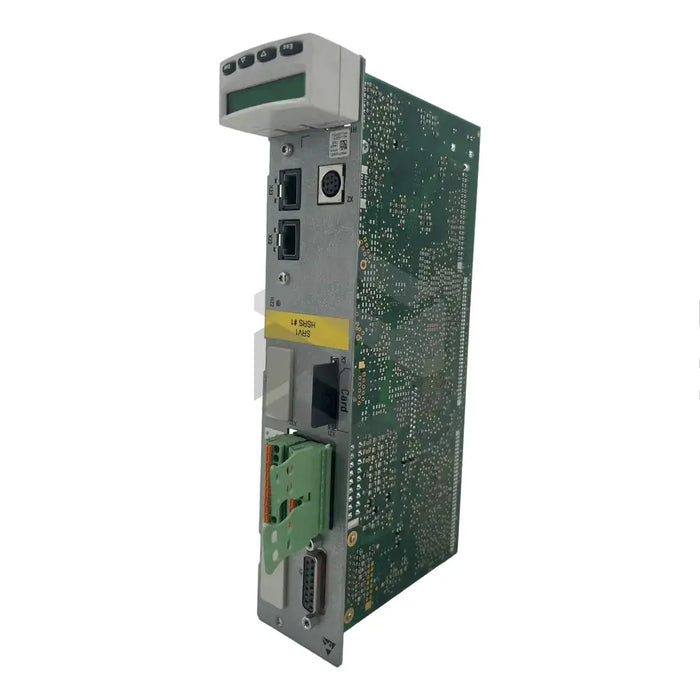

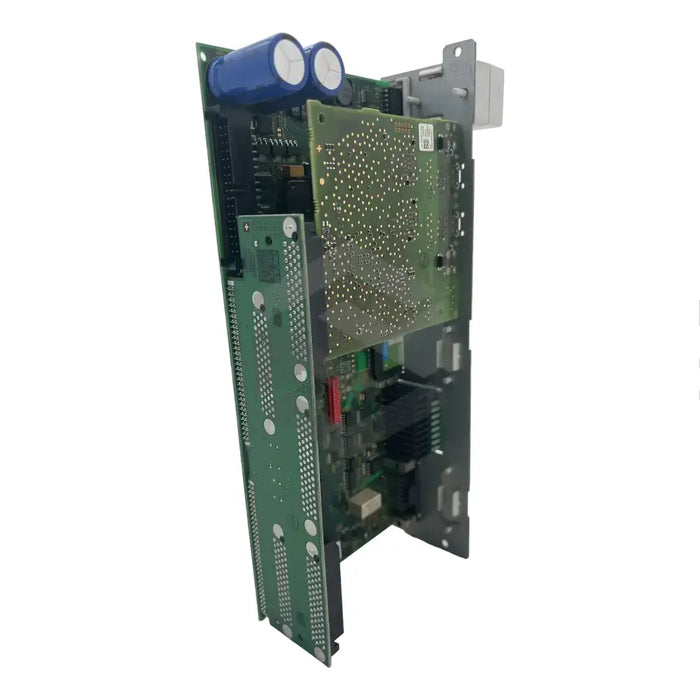

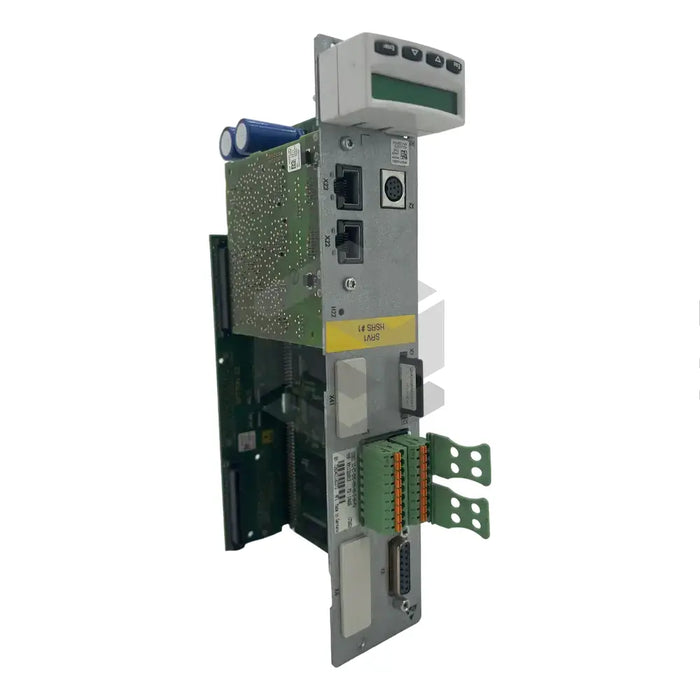

product Main (Front Left) image of CSB01.1C-ET-ENS-NNN-NN-S-NN-FW

CSB01.1C-ET-ENS-NNN-NN-S-NN-FW

by Bosch Rexroth Indramat
$900.00 - $900.00
$900.00
$900.00 - $900.00
$900.00
In Stock, Ships Today
The CSB01.1C-ET-ENS-NNN-NN-S-NN-FW is a drive controller control section made by Rexroth Bosch, designed for electrical motor control and monitoring. Suitable for single and multi-axis drive tasks, it's commonly utilized in machine tools, food, and packaging machines and handling systems. This drive controller, part of the CSB product range, includes a standard control panel and is configurable. Notably, the firmware must be separately purchased. It features a control voltage of 24 V, DC bus connection, mains voltage, and a motor connection section. Its optimal operating environment includes a relative humidity of 5 to 95%, with storage and transportation temperatures ranging from -25 to 55 and -25 to 70 degrees Celsius, respectively. The controller must be used in an hour-long operation annually if storage exceeds one year. With an IP 20 protection category, its installation elevation can go up to 4000 meters, but operating altitude for nominal data is 1000 meters.
30 Day Warranty
Technical Specifications
  • Product: CSB01.1C-ET-ENS-NNN-NN-S-NN-FW
  • Rexroth Bosch Drive Controller: Yes
  • Intended Use: Electrical motor control and monitoring
  • Control Tasks: Suitable for both single- and multi-axis control
  • Applications: Machine tools packaging, food machines, handling, and mounting systems
  • Control Panel: Standard
  • Configurable Option: Present
  • Extra Parts: Firmware to be ordered separately
  • DC Bus Connection: Present
  • 24V Control Voltage: Present
  • Mains Voltage: Present
  • Motor Connection Section: Present
  • Ambient Relative Humidity: 5 to 95%
  • Storage Temperature: -25 to 55 degrees
  • Transport Temperature: -25 to 70 degrees
  • Operational Temperature: 0 to 40 degrees
  • Protection Category: IP 20
  • Installation Height with Nominal Data: Up to 1000 meters
  • Maximum Installation Elevation: 4000 meters
  • Control Panel Features: Single display line
  • Power Consumption: 8W
  • Inrush Current: 4.6A
  • Maximum Pulse Width: 110ms
