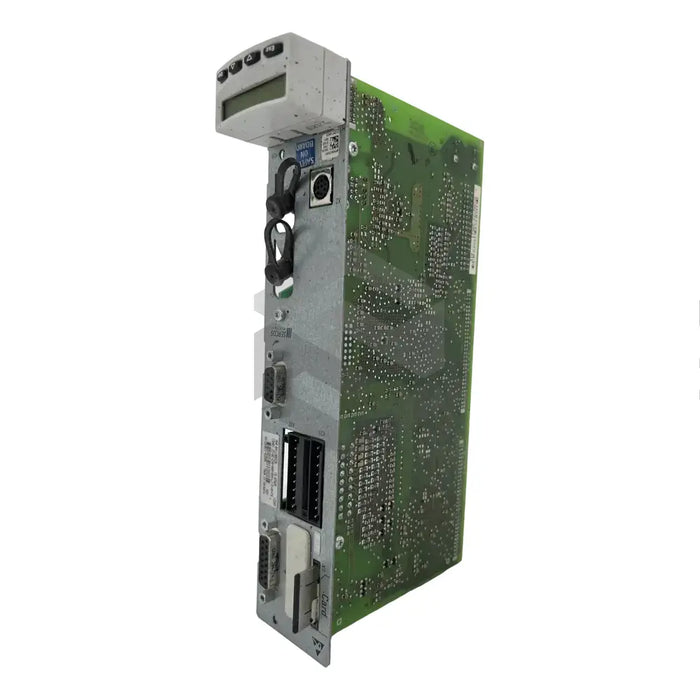

product Main (Front Left) image of CSH01.1C-SE-ENS-NNN-NNN-L1-S-NN-FW

CSH01.1C-SE-ENS-NNN-NNN-L1-S-NN-FW

by Bosch Rexroth Indramat
$2,912.11 - $2,912.11
$2,912.11
$2,912.11 - $2,912.11
$2,912.11
In Stock, Ships Today
The Bosch Rexroth Indramat CSH01.1C-SE-ENS-NNN-NNN-L1-S-NN-FW is an advanced control section specifically designed for use within a drive control system. It utilizes a fiber optic SERCOS interface for data transmission and receives data through distinct pin assignments. Data storage, read and write operations are facilitated by a multimedia card. Among its standard features are a digital overload and short-circuit protection, separate power intakes for modules, and a one-year backup. Compliant with the chemicals ban decree, the unit comprises a Type 2 relay contact at the X31.1 and X31.2 connecting points and an RS 232 serial interface at the X2 connection point with MiniDin female connector. Note, only trained personnel should operate this control section and its applications are not meant for residential areas. Mounting must be vertical and assembly specifications should be strictly adhered to.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: CSH01.1C-SE-ENS-NNN-NNN-L1-S-NN-FW
  • Use: Component of a drive control system
  • Interface: SERCOS interface connected with fiber optic cables
  • Data Storage: Multimedia card
  • Protection Features: Overload protection, Short circuit protection
  • Connections: Wire ends with ferrules for connections with screw terminal blocks
  • Power Consumption: Varies based on optional modules
  • Configuration: Customizable
  • Backup: One-year
  • RS 232 serial interface: At X2 connection point using a circular MiniDin female connector with eight poles
  • Operation: By trained personnel only
  • Residential Use: Not intended
  • Configuration: Only in specified configuration and combination of components
  • Mounting Orientation: Vertical
  • Circuit Breaker Compatibility: Compatible with circuit breakers with residual current, sensitive to universal current
  • Leakage Current and Housing Voltage: High when in use
  • Shipping: Worldwide.
