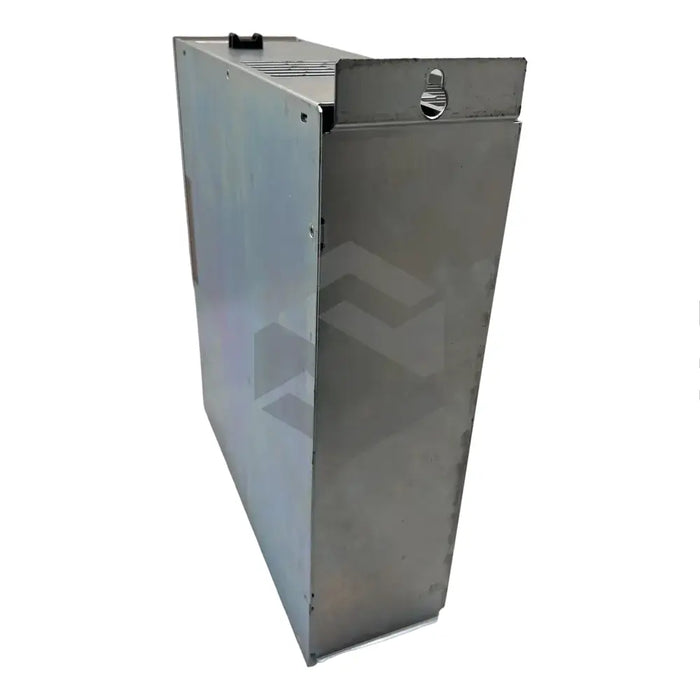

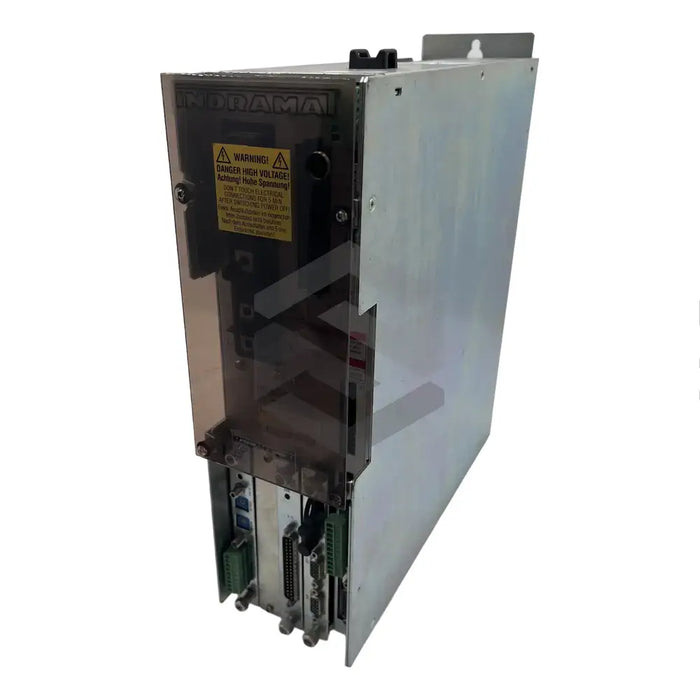

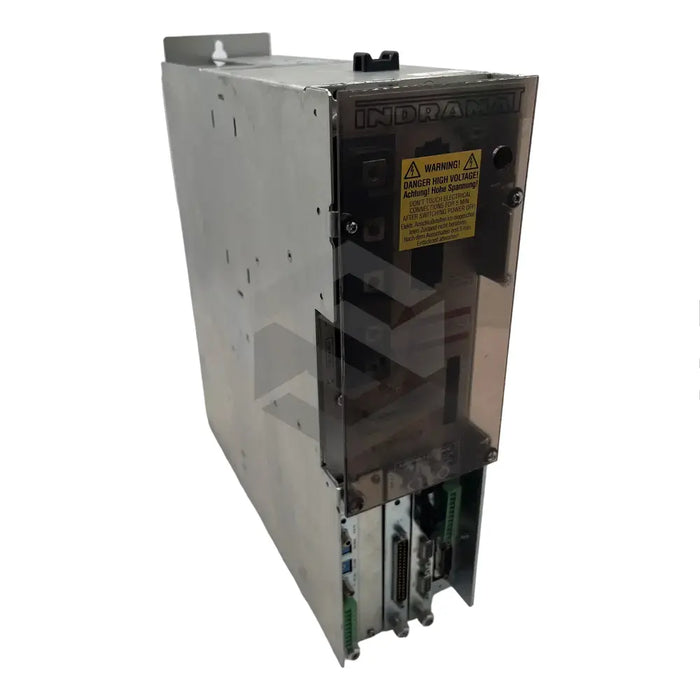

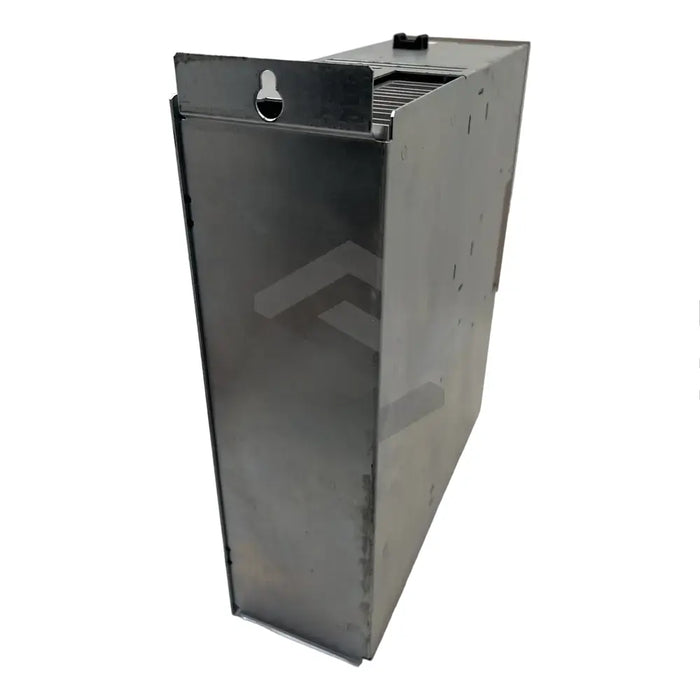

DDS02.2-W100-BE24-02-FW
The DDS02.2-W100-BE24-02-FW is a product of Bosch Rexroth Indramat, a key player in industrial automation equipment provision including drive controllers, power supply modules, and servo motors. This model is designed to regulate and oversee the operation of synchronous and frameless motors across a range of industrial applications. With a 500mA, 24V power consumption, it offers features such as motor temperature monitoring and the handling of input from digital and resolver servo motor feedback. Environmental durability spans temperatures of -30 to 85 degrees Celsius, but recommended operational range is between 0 and 45 degrees Celsius. It utilizes air cooling, hosts a SERCOS interface communication module and integrates EMC compliance. Coupled with customizable software modules, this device boasts versatile driving application capabilities. With both a maximum continuous current of 60A and a peak current of 100A, its DC bus voltage meets a conventional 300 volts. Installation and operation should be by trained personnel only.
30 Day Warranty
Technical Specifications
