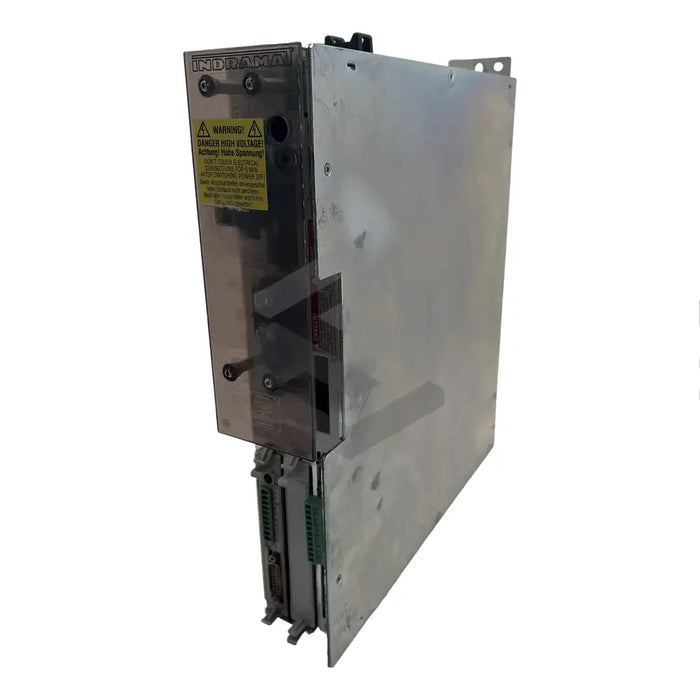

product Main (Front Left) image of DDS03.1-W030-RC01-01

DDS03.1-W030-RC01-01

by Bosch Rexroth Indramat
$2,320.73 - $2,320.73
$2,320.73
$2,320.73 - $2,320.73
$2,320.73
Available, Shipping Varies
The DDS03.1-W030-RC01-01 is a drive controller from Bosch Rexroth's DDS series, with a rated output current of 30 Amps, applicable for conditions up to 45 degrees Celsius and elevations up to 1000 meters. Beyond these parameters, the controller output derates linearly up to 55 degrees Celsius and non-linearly between 1000 and 5000 meters of elevation. It is not recommended for temperatures above 55 degrees Celsius or elevations above 5000 meters. This controller, with an Ingress protection class of IP20, necessitates cabinet mounting for better protection. It weighs 5.5 kilograms, has a vertical orientation, and measures 355 millimeters in height, 70 millimeters in width, and 325 millimeters in depth. It supports Interbus-S communication, and features a resolver-based feedback system. It also comes with a software module for firmware and operating parameters storage, and three slots for optional plug-in modules.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: DDS series
  • Product Model: DDS03.1-W030-RC01-01
  • Rated Output Current: 30 Amps
  • Operating Temperature: 0 to 45 degrees Celsius
  • Operating Altitude: 0 to 1000 meters
  • Deration Temperature: Above 45 degrees Celsius
  • Deration Altitude: Above 1000 meters
  • Storage and Transport Temperature: -30 to 85 degrees Celsius
  • Ingress Protection Class: IP20
  • Weight: 5.5 kilograms
  • Height: 355 millimeters
  • Width: 70 millimeters
  • Depth: 325 millimeters
  • Heat Technology: Inside cabinet
  • Mounting Orientation: Vertical
  • Minimum Spacing Requirement: 80 millimeters (top/bottom), 40 millimeters (front)
  • Communication Module: Interbus-S
  • Feedback Support: Resolver-based (optional digital servo feedback)
  • Software Module: Yes
  • Optional Plug In Modules: 3 slots available.
