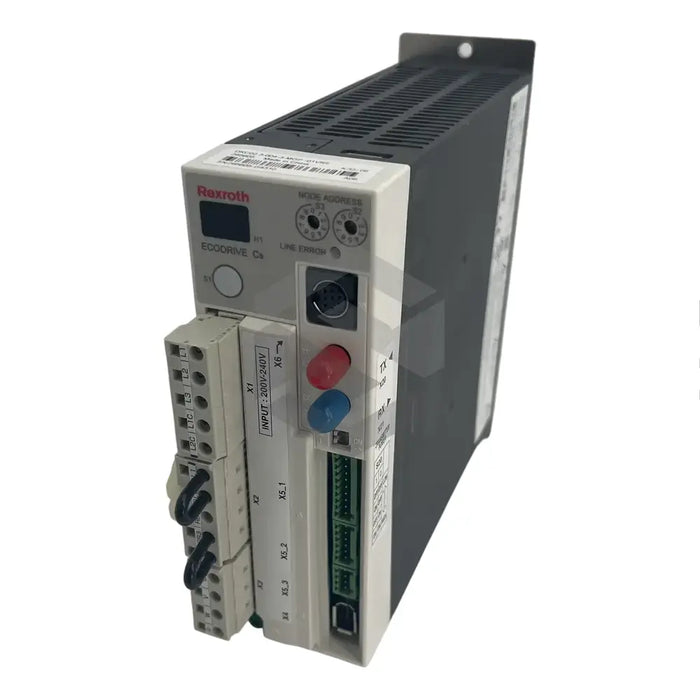

product Main (Front Left) image of DKC02.3-004-3-MGP-01VRS

DKC02.3-004-3-MGP-01VRS

by Bosch Rexroth Indramat
$1,713.00 - $1,713.00
$1,713.00
$1,713.00 - $1,713.00
$1,713.00
In Stock, Ships 1 - 2 Days
Rexroth Bosch, an industry leader in durable, high-performance motion control accessories, produces cutting-edge products including mains, filters, power cables, servo controllers, drive controllers, spindle drives, and supply modules. These cost-effective automation products are specifically designed by expert teams utilizing the latest technology to ensure superior efficiency and ruggedness. Among these, the DKC02.3-004-3-MGP-01VRS EcoDrive is an advanced firmware module. Designed for enclosure installation offering a pollution degree 2, this device has no over-speed protection and can operate optimally within a maximum ambient temperature of 40-55 degrees Celsius. The unit weighs approximately 1.8kgs with dimensions of 182 mm height, 55 mm width, and 170 mm depth with a suggested 50mm clearance for top and bottom mounting. This EcoDrive has a rated input voltage of 24V AC, a short-circuit current rating of 5000 W, and a frequency range of 50-60Hz. It is designed for a maximum permissible output voltage of 84V and a max output current of 1A, with a maximum estimated input current of 1.1A.
30 Day Warranty
Technical Specifications
  • Product Name: DKC02.3-004-3-MGP-01VRS EcoDrive
  • Installation: Enclosure with pollution degree 2
  • Over-speed Protection: Absent
  • Maximum Ambient Temperature (Nominal Data): 400C
  • Maximum Ambient Temperature (Reduced Data): 550C
  • Weight: 1.8kgs
  • Height: 182 mm
  • Width: 55 mm
  • Depth: 170 mm
  • Top Mounting Distance: 50 mm
  • Bottom Mounting Distance: 50 mm
  • Rated Input Voltage: 200 to 230 AC
  • Input Number of Phases: 3
  • Tolerance Input Voltage: N/A
  • Input Frequency: 50 to 60 Hz
  • Max Output Voltage: 84 V
  • Max Output Current: 1 A
  • Max Input Current: 1.1 A
  • Branch Circuit Protection Fuse: 2
  • Power Dissipation (Continuous Current and DC Bus Power): 100
