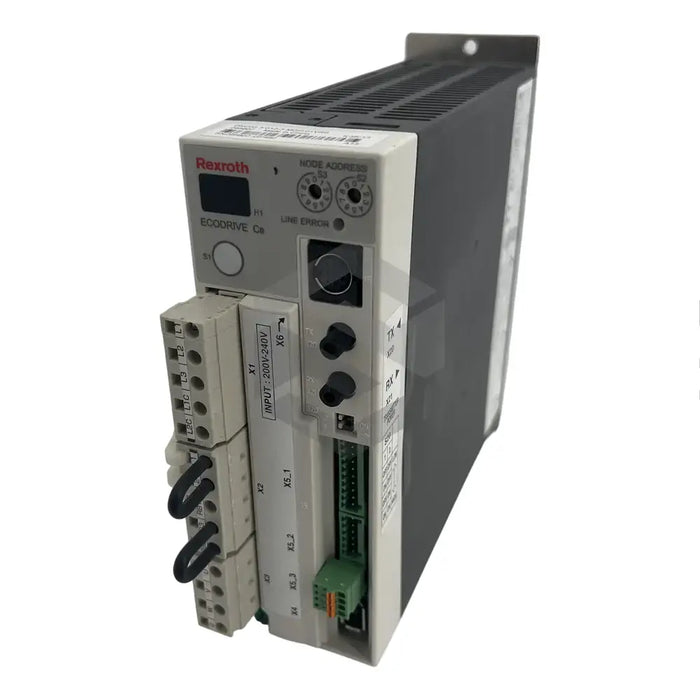

product Main (Front Left) image of DKC02.3-012-3-MGP-01VRS

DKC02.3-012-3-MGP-01VRS

by Bosch Rexroth Indramat
$2,889.00 - $2,889.00
$2,889.00
$2,889.00 - $2,889.00
$2,889.00
In Stock, Ships 1 - 2 Days
The DKC02.3-012-3-MGP-01VRS from Bosch Rexroth is a top-tier automation accessory made from a recognized brand for reliability, quality, and safety. The accessory needs installation in a pollution degree 2 environment. It does not have over-speed protection, and it functions optimally at an environmentally ambient temperature varying between 40-55 degrees Celsius. Dimensions are at 182 mm height, 170 mm depth, and an estimated 55 mm width, weighing 1.8kgs. Installation requirements include a spacing of at least 50 mm at the top and bottom. Its electric parameters are an input rated control voltage of 24 AC, short circuit current rating 5000 W, rated input voltage 200 to 230 AC, and input number of phases is 3. It has an estimated input frequency of 50 to 60 Hz, an output frequency of 333.3 Hz, and an output number of phases is 3. Note, the maximum input current is 2.2 A and the output is 2.5 A. The branch circuit protection fuse is 3, with a maximum output voltage of 106 V.
30 Day Warranty
Technical Specifications
  • Brand: Bosch Rexroth
  • Product Type: Drive Controller
  • Model: DKC02.3-012-3-MGP-01VRS
  • Pollution Degree: 2
  • Ambient Temperature (Nominal): 400C
  • Ambient Temperature (Max): 550C
  • Height: 182mm
  • Depth: 170mm
  • Width: 55mm
  • Weight: 1.8 kgs
  • Installation Space Required: 50mm top and bottom
  • Control Voltage: 24 AC
  • Short Circuit Current Rating: 5000 W
  • Rated Input Voltage: 200 to 230 AC
  • Input Number of Phases: 3
  • Input Frequency: 50 to 60 Hz
  • Max Output Frequency: 333.3 Hz
  • Output Number of Phases: 3
  • Max Input Current: 2.2 A
  • Max Output Current: 2.5 A
  • Branch Circuit Protection Fuse: 3
  • Max Output Voltage: 106 V
