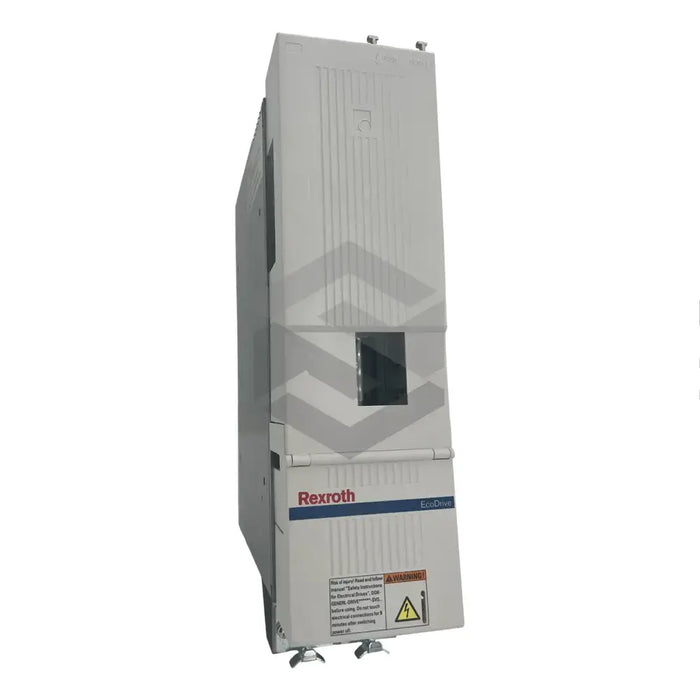

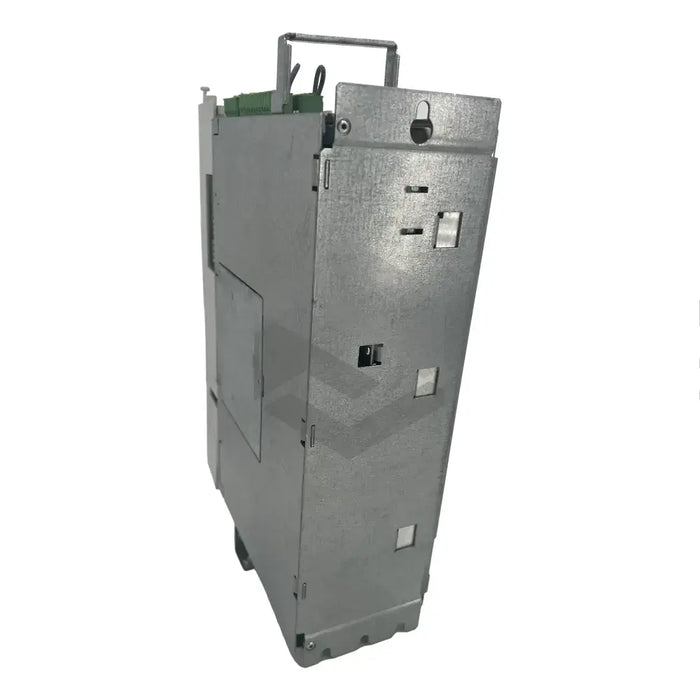

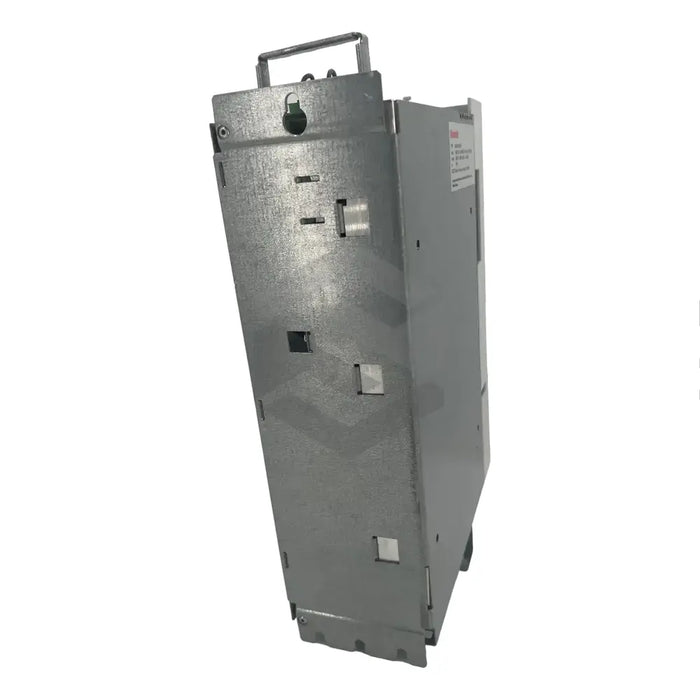

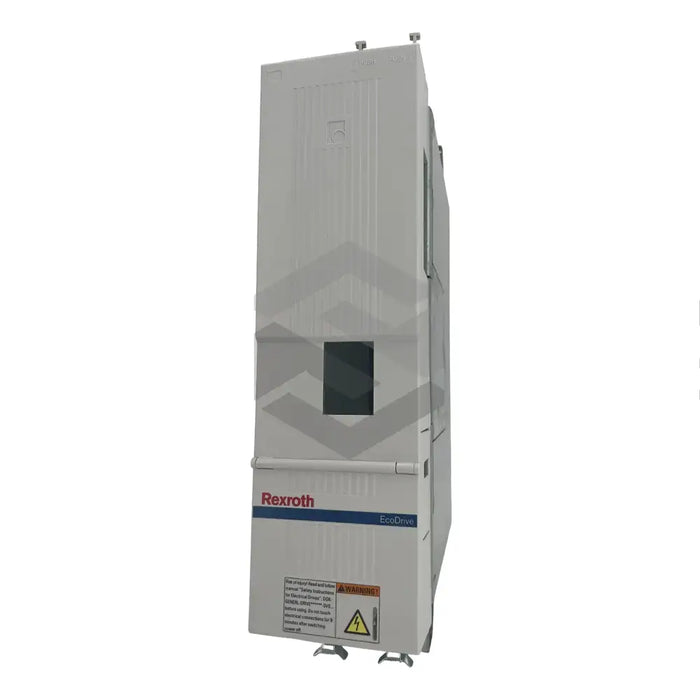

product Main (Front Left) image of DKC22.3-100-7-FW

DKC22.3-100-7-FW

by Bosch Rexroth Indramat
$9,003.00 - $9,003.00
$9,003.00
$9,003.00 - $9,003.00
$9,003.00
In Stock, Ships 1 - 2 Days
The DKC22.3-100-7-FW, a servo drive controller from Rexroth Bosch Indramat, belongs to the latest DKC drive series 22. It is characterized by SERCOS connectivity, facilitating swift real-time operations and rapid data transfer, as well as analog, RS232, and RS485 interfaces. As it falls under the IP20 protection category, it is unsuitable for areas exposed to liquids. This robust servo-drive delivers a peak current of 100A, offering the ability to boost a motor's speed or torque when needed. The current output can be regulated via switchable frequencies of 4kHz or 8kHz, providing a peak current of 40A and 32A respectively. Additionally, it includes overcurrent and over-heating safeguards. The servo-drive is compatible with a single-phase or three-phase AC mains connection and requires an input voltage parameter of 200v to 480v and an input frequency of 50Hz or 60Hz.
30 Day Warranty
Technical Specifications
  • Manufacturer: Rexroth Bosch Indramat
  • Product Type: Servo Drive Controller
  • Model: DKC22.3-100-7-FW
  • Drive Series: 22
  • Connectivity: SERCOS Interface 2, Analog interface, RS232 / RS485 interface
  • Protection Class: IP20
  • Peak Current Rating: 100A
  • Switchable Frequency Options: 4kHz or 8kHz
  • Peak Current at 4kHz: 40A
  • Continuous Current at 4kHz: 32A-40A
  • Peak Current at 8kHz: 32A
  • Continuous Current at 8kHz: 21A-32A
  • Input Voltage Requirement: 200v-480v
  • Input Frequency Requirement: 50Hz or 60Hz
  • AC Mains Connection: Single Phase or Three-Phase
