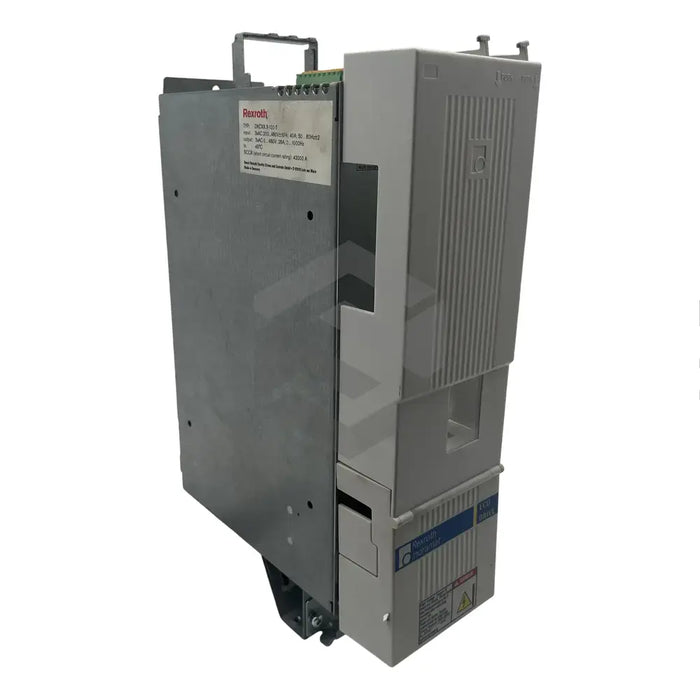

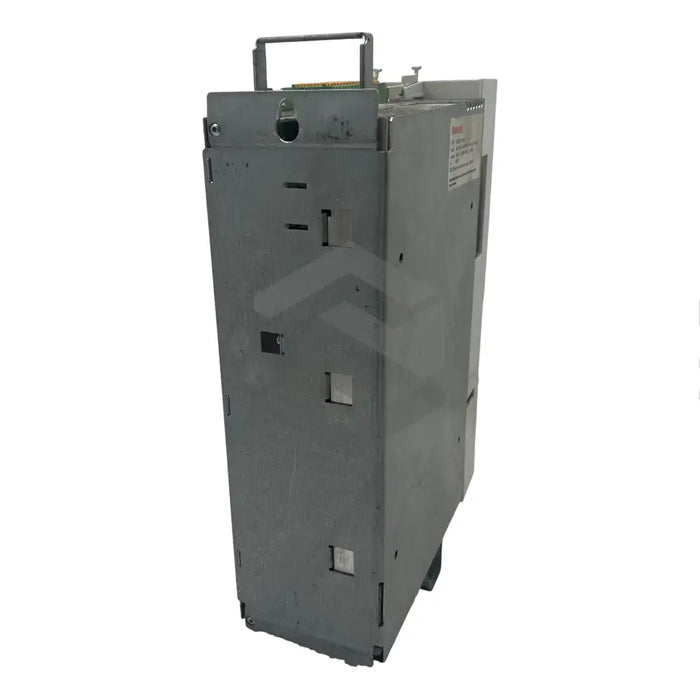

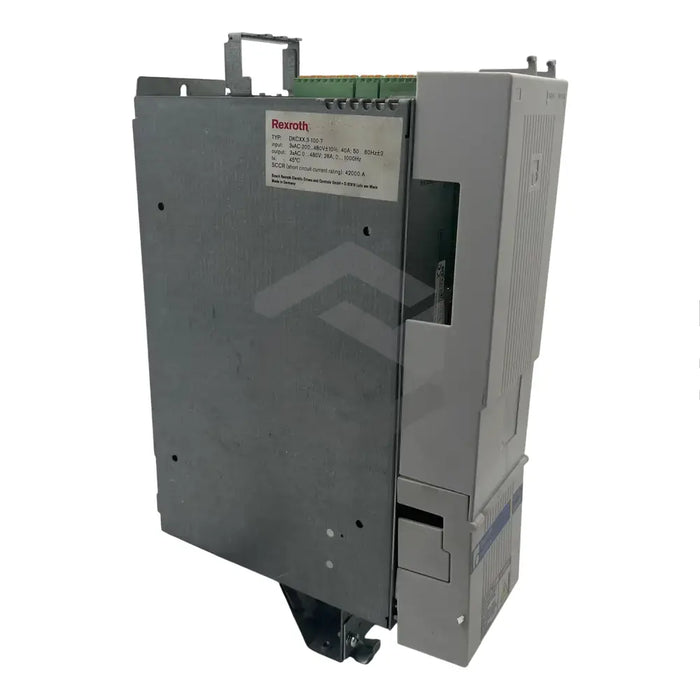

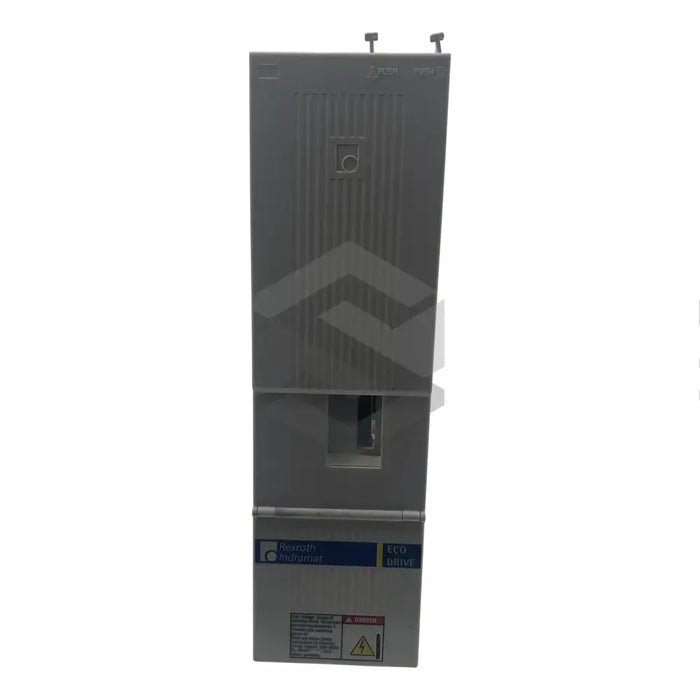

series image of DKCXX.3-100-7-FW

DKCXX.3-100-7-FW

by Bosch Rexroth Indramat
$2,835.00 - $2,835.00
$2,835.00
$2,835.00 - $2,835.00
$2,835.00
In Stock, Ships 1 - 2 Days
The DKCXX.3-100-7-FW is an EcoSeries drive controller from Bosch Rexroth that emits a rated current output of 100 Amps and functions within a DC bus voltage range of 600 to 800 Volts AC, with a nominal level of 700 Volts DC. Its functionality is configured via separately ordered firmware, ensuring consistent updates and quality control for any potential errors. The firmware version is identified in the type code and the same version can be re-ordered when needed. The controller features an RS-485 interface, facilitating programming, parameterizing and diagnosis during initial operations and servicing. This interface supports a serial bus with up to 31 stations, data rates of 9600/19200 baud and a transmission length of up to 500 meters. The unit can directly connect to earthed three-phase systems of 380 to 480 Volts AC, requiring only a mains contactor, fuse protection and a mains filter in the mains input line.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth
  • Product Type: EcoSeries Drive Controller
  • Model Number: DKCXX.3-100-7-FW
  • Current Output: 100 Amps
  • DC Bus Voltage Range: 600-800 Volts AC
  • Nominal DC Bus Voltage: 700 Volts DC
  • Firmware: Order Separately
  • Interface: RS-485
  • Transmission Length: Up to 500 Meters
  • Data Rate: 9600/19200 Baud
  • Input Voltage Range: 380-480 Volts AC
  • Voltage Tolerance: ±10%
  • Mains Input Line Requirements: Fuse Protection, Mains Contactor, Mains Filter
  • Autotransformer Required: If Mains Voltage Exceeds Permited Range
