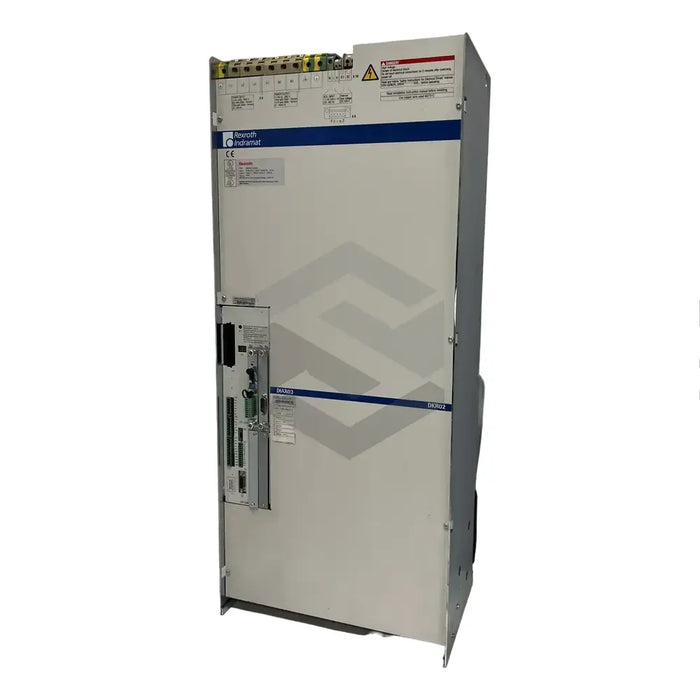

product Main (Front Left) image of DKR02.1-W300B-BE37-01-FW

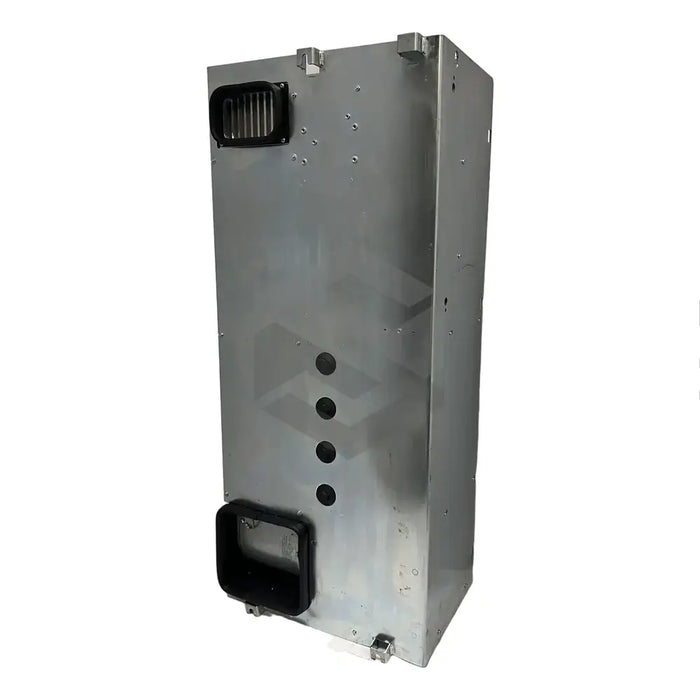

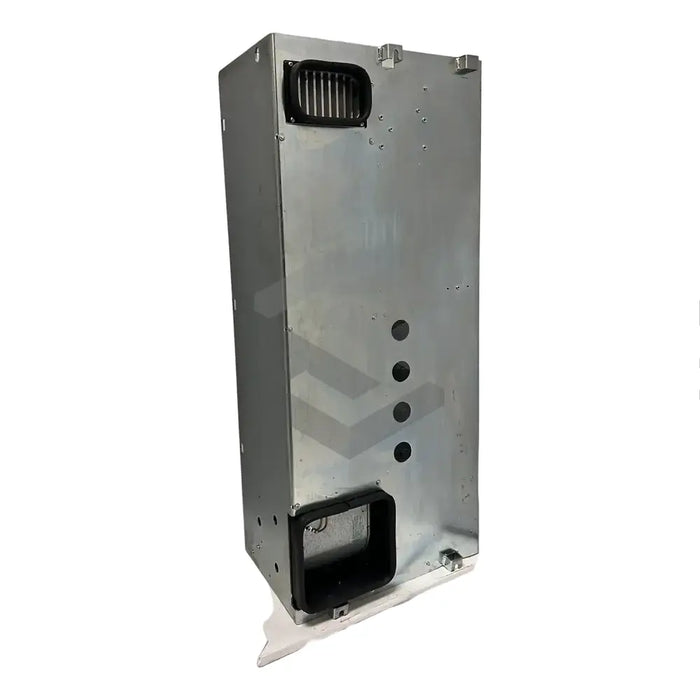

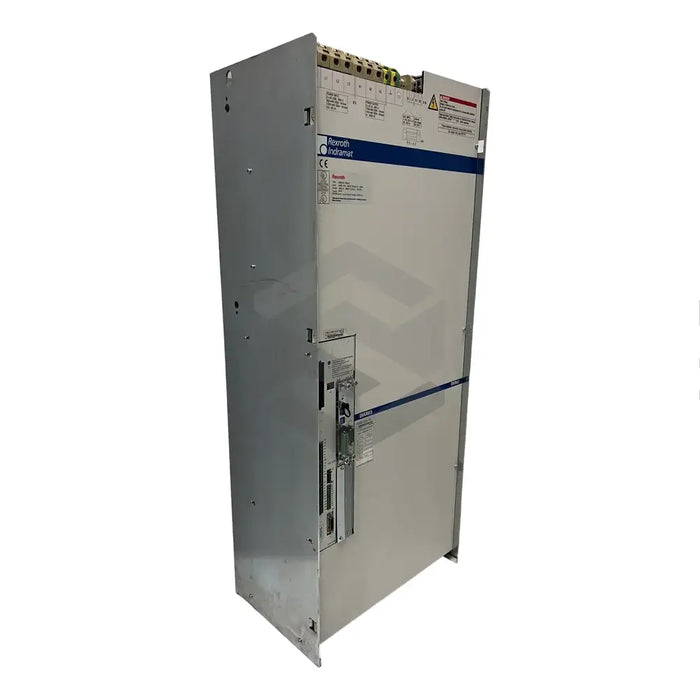

DKR02.1-W300B-BE37-01-FW

by Bosch Rexroth Indramat
$22,999.99 - $22,999.99
$22,999.99
$22,999.99 - $22,999.99
$22,999.99
In Stock, Ships 1 - 2 Days
The Rexroth Indramat DKR02.1-W300B-BE37-01-FW is an advanced drive controller equipped to command and monitor various kinds of motors, including linear, main spindle, and frameless spindle. It also supports a range of speeds for high-level control. The unit comes standard with a mains contactor and an emergency stop-shutdown device, is capable of pairing with up to 5 modules, and can control servo motors with an output power ranging between 10 kW and 93 kW. Ideal applications for this drive controller include NC-controlled machine tools, paper processing mechanisms, and printing units. The controller uses an internal cooling method via built-in blower/heatsink, discharging a maximum heat of 1800 Watts. The controller is equipped with a digital servo feedback with resolver, a SERCOS interface, and operates at a power voltage of 3 x 400 – 480 AC, 50-60 Hz. The continuous current rating ranges from 110-141 Amperes, depending on switching frequency.
30 Day Warranty
Technical Specifications
  • Product Type: DKR02.1-W300B-BE37-01-FW
  • Manufacturer: Rexroth Indramat
  • Product Function: Control and monitoring of linear, main spindle and frameless spindle motors
  • Design Features: Mains contactor, ESSD emergency stop-shutdown device
  • Compatibility: Up to 5 modules
  • Servo Motor Continuous Output Power: 10KW to 93KW
  • Applications: NC-controlled machine tools, paper processing machines, printing equipment
  • Cooling Mode: Built-in blower/heatsink
  • Max. Heat Discharge: 1800 Watts
  • Additional Features: Bleeder resistor, Digital servo motor feedback with resolver, SERCOS interface for error diagnostics and command communications
  • Power Voltage: 3 x 400 – 480 AC, ± 10%
  • Operating Frequency: 50 – 60 Hz
  • Control Voltage: 200 VA
  • Current at 4 kHz Switching Frequency: 141 Amperes
  • Current at 8 kHz Switching Frequency: 110 Amperes
