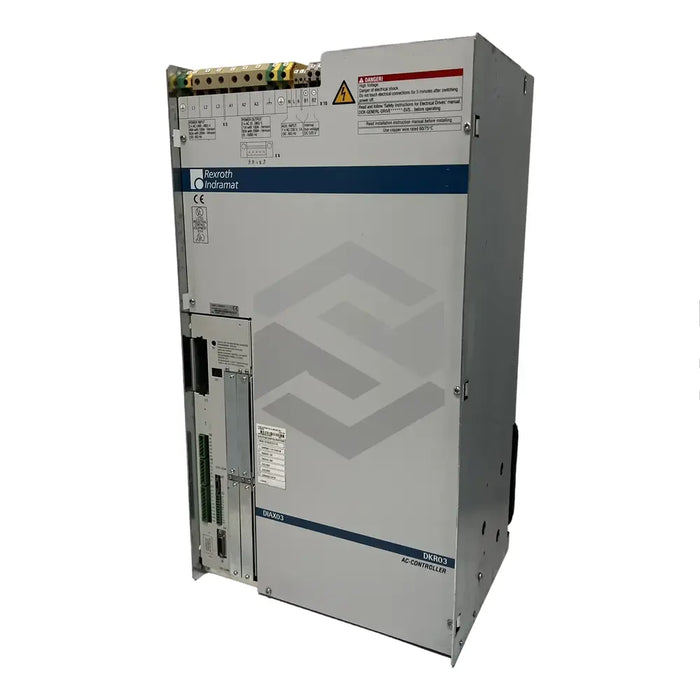

product Main (Front Left) image of DKR03.1-W100N-B

DKR03.1-W100N-B

by Bosch Rexroth Indramat
$9,450.00 - $9,450.00
$9,450.00
$9,450.00 - $9,450.00
$9,450.00
In Stock, Ships Today
The Bosch Rexroth Indramat DKR03.1-W100N-B is a drive controller from the DKR series. Designed for versatility, this controller works with a range of Rexroth Indramat motors including 2AD/ADF series spindle motors, 1MB series frameless spindle motors and LSF/LAF linear motors. The DKR03.1-W100N-B is rated at 100 Amps and can be tailored to specific applications thanks to optional modules that can be added to slots U1 to U5. An inclusive unit, it features a basic unit, software module, interface cards, and plug-in modules. With an onboard blower for cooling, a bleeder, and provision for digital servo and resolver feedback, the module runs on 400 to 480 Volts AC three-phase input with 50 to 60 Hertz frequency and allows for a ±10% variation in input voltage. Taking into account its accessories kit, the controller weighs nearly 50kg and measures 690 x 390 x 310mm. The unit can operate within an ambient temperature range of 5-45 degrees Celsius and up to a maximum altitude of 1000 meters without derating. Lastly, this module holds an IP20 protection rating in line with IEC 529 and EN 60529 standards.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: DKR Series
  • Product Model: DKR03.1-W100N-B
  • Ampere Rating: 100 Amps
  • Motor Compatibility: 2AD / ADF series spindle motors, 1MB series frameless spindle motors and LSF / LAF linear motors
  • Cooling System: Integrated blower
  • Feedback Support: Digital Servo and Resolver Feedback
  • Input Voltage: 400 to 480 Volts AC
  • Line Frequency: 50 to 60 Hertz
  • Power Tolerance: ±10%
  • Maximum Power Rating (4kHz): 26 kilowatts
  • Maximum Power Rating (8kHz): 22 kilowatts
  • Controller Weight: 49 kilograms
  • Dimensions: 690 x 390 x 310 millimeters
  • Allowable Ambient Temperature (with rated data): 5 to 45 degrees Celsius
  • Max Ambient Temp (with 80% derating): 55 degrees Celsius
  • Max Installation elevation: 1000 meters
  • Enclosure Protection Rating: IP20.
