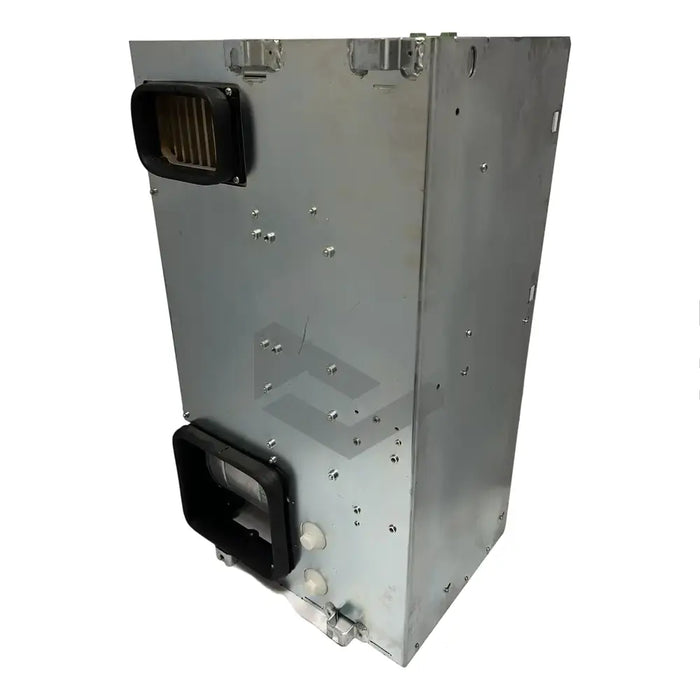

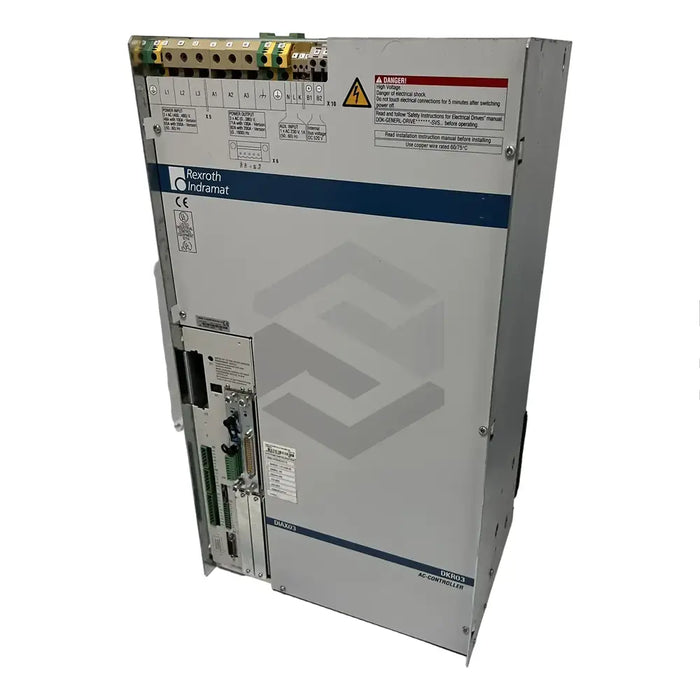

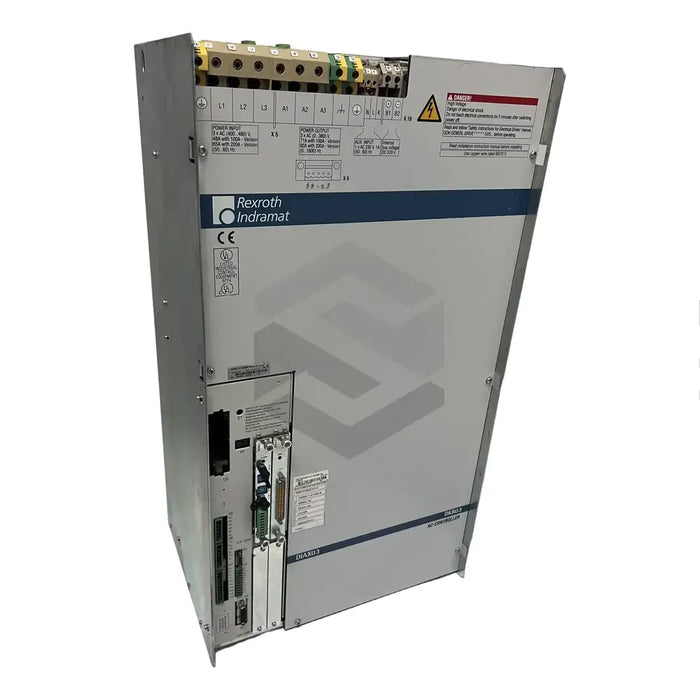

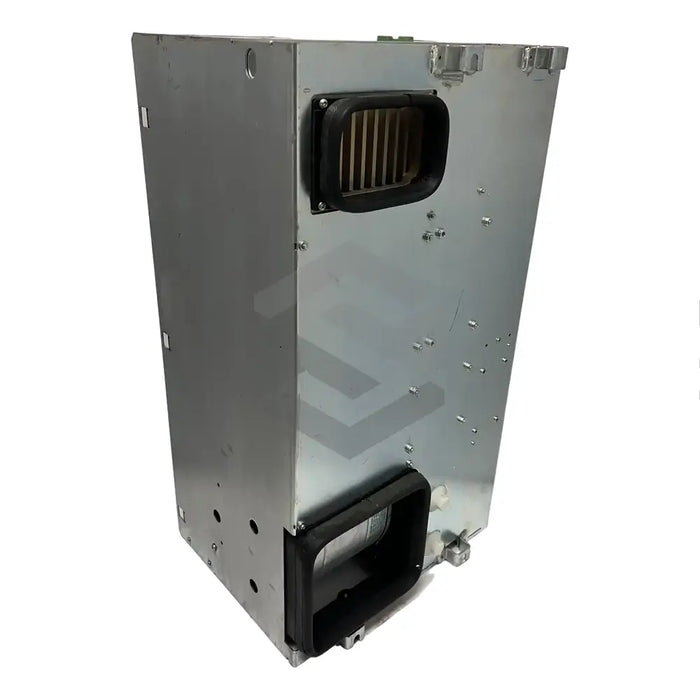

product Main (Front Left) image of DKR03.1-W200B-BE23-01-FW

DKR03.1-W200B-BE23-01-FW

by Bosch Rexroth Indramat
$4,312.00 - $4,312.00
$4,312.00
$4,312.00 - $4,312.00
$4,312.00
In Stock, Ships Today
The DKR03.1-W200B-BE23-01-FW, made by Bosch Rexroth Indramat, is an advanced main drive controller that provides precise digital speed control to specific servo motors in industrial machinery. Additionally, this controller adjusts the position of the servo motor based on command center signals. It's compatible with three types of servo motors: frameless spindle motors 1MB, a.c. main spindle motors 2AD or ADF, and linear motors LSF or LAF. The high stiffness and wide speed range make it ideal for computer numerical controlled machines like mills, drills, routers, and plasma or waterjet cutters. Customization components can be added to slots U1-U5 for additional functionality. The controller is rated for 3xAC 400-480V power voltage, with a continuous current of 92 Amps and a peak current of 141 Amps. It has an AC230V control voltage, weighs about 49kg, and matches the IP20 protection class standard.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: DKR03.1-W200B-BE23-01-FW
  • Product type: Main drive controller
  • Compatible Servo Motors: 1MB, 2AD or ADF, LSF or LAF
  • Customizable Slots: Slots U1 to U5
  • Required Components: Basic unit, auxiliary plugged-in cards, software module, command interface card
  • Rated Power Voltage: 3xAC 400 Volts to 3xAC 480 Volts
  • Continuous Current: 92 Amperes
  • Peak Current: 141 Amperes
  • Control Voltage: AC 230 volts
  • Control Voltage Power: 200 Volts-Ampere
  • Control Voltage Frequency: 50 to 60 Hertz
  • Continuous Regenerated Power: 30 Kilowatts
  • Peak Regenerated Power: 55 kilowatts for 10 seconds
  • Protection Class: IP 20 per EN60529 / IEC529
  • Weight: 49 kilograms
