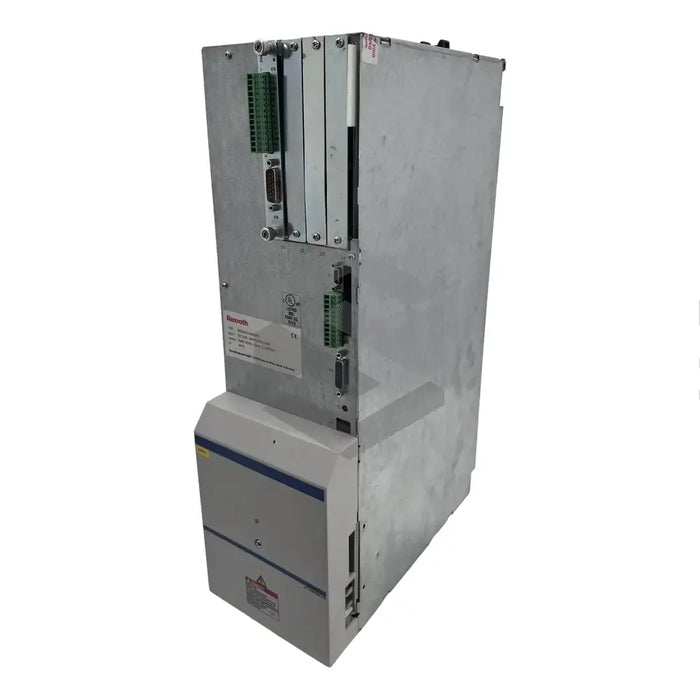

product Main (Front Left) image of HDS04.2-W200N-HA01-01-FW

HDS04.2-W200N-HA01-01-FW

by Bosch Rexroth Indramat
$5,082.97 - $5,082.97
$5,082.97
$5,082.97 - $5,082.97
$5,082.97
In Stock, Ships 3 - 5 Days
The Bosch Rexroth Indramat HDS04.2-W200N-HA01-01-FW, a part of the HDS series, is a drive controller with a line code of 4. It contains two type plates outlining the basic unit and configuration details. The controller possesses a peak and continuous current rating of 200A, and 30W signal-processing power consumption from a +/-26V source. It features a 1.2W power-consuming analog interface for communication and works with an HZF power connection module. Working within an altitude of 1,000m above sea level, it effectively monitors and controls electric motor operations. When installed with others, higher current controllers should be closer to the power supply. Installation must be vertical with grounding clip-provided ground connection. Internal functioning is aided by an inbuilt blower and the optimal functioning temperature must not exceed 45°C. This device is not suitable for elevators, cranes, or refinery plants. Its current tolerance is +/-15%.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: HDS Series
  • Product Code: HDS04.2-W200N-HA01-01-FW
  • Line Code: 4
  • Peak Current Rating: 200A
  • Continuous Current Rating: 200A
  • Power Consumption for Signal Processing: 30W
  • Communication Interface: Analog
  • Power Consumption (Interface): 1.2W
  • Compatible Power Connection Module: HZF
  • Operational Altitude: Up to 1000m
  • Use: Control and Monitoring of Electric Motors
  • Mounting Orientation: Vertical
  • Air Circulation: Internal (Built-in blower)
  • Maximum Ambient Operating Temperature: 45°C
  • Voltage Tolerance: +/-15%
