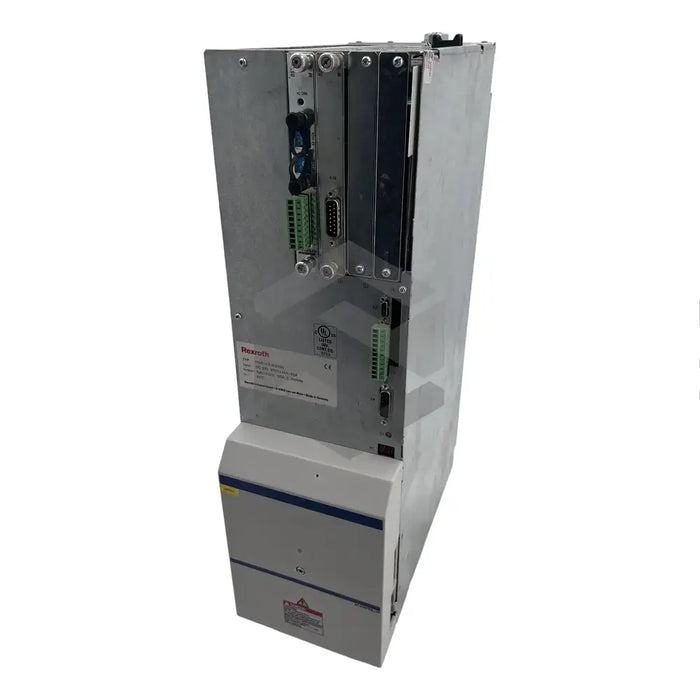

product Main (Front Left) image of HDS04.2-W200N-HS37-01-FW

HDS04.2-W200N-HS37-01-FW

by Bosch Rexroth Indramat
$6,061.13 - $6,061.13
$6,061.13
$6,061.13 - $6,061.13
$6,061.13
Available, Shipping Varies
The Bosch Rexroth HDS04.2-W200N-HS37-01-FW Drive Controller from the DIAX04 series operates widely in handling, packaging, textile and printing applications, using a SERCOS interface for effective command communication. It may partner with an additional HZK capacitor module in situations with high start-stop cycling and requires careful location of signal and control cables away from high-supply lines, magnetic fields, or high-frequency units. The device links to the motor with a cable no longer than 75m and connects at the controller's base. Optimal contact with mounting rails and panel is ensured by keeping the mount area free from finishing or paint. This drive controller features function ID code 37, tolerates storage and transit temperatures from -30°C to +85°C, and sustains relative humidity up to 95% and absolute humidity up to 25g/m3. It weighs 19g, has a power loss of 800W at continuous current with an operational vibration range of 20-500Hz per IEC 68-2-36 guidelines. Proper installation requires a SUP-M01-HD mounting rail, vertical assembly and a clearance above 100mm from control cabinet to controller.
30 Day Warranty
Technical Specifications
  • Product Family: DIAX04
  • Manufacturer: Bosch Rexroth
  • Interface: SERCOS
  • Usability: Handling, packaging, textile and printing machines
  • Additional Module Support: HZK Capacitor Module
  • Cable Routing: Not near high-voltage supply lines, magnetic fields, or high-frequency units
  • Maximum Cable Length: 75m
  • Motor Connection: At the bottom of the controller
  • Mounting Panel Requirements: No finish or paint within the mounting area
  • Location of Type Plate: Top of the controller and near plug-in modules
  • Function ID Code: 37
  • Storage and Transportation Temperature Range: -30°C to +85°C
  • Maximum Permissible Relative Humidity: 95%
  • Maximum Permissible Absolute Humidity: 25g/m3
  • Power Loss: 800W with continuous current
  • Weight: 19g
  • Frequency Range Due to Vibration Distortion: 20 to 500Hz
  • Fastening Requirement: Mounting rail of type designation SUP-M01-HD
  • Mounting Orientation: Vertical
  • Minimum Clearance: 100mm between the control cabinet and the controller
  • Worldwide Delivery: Yes
