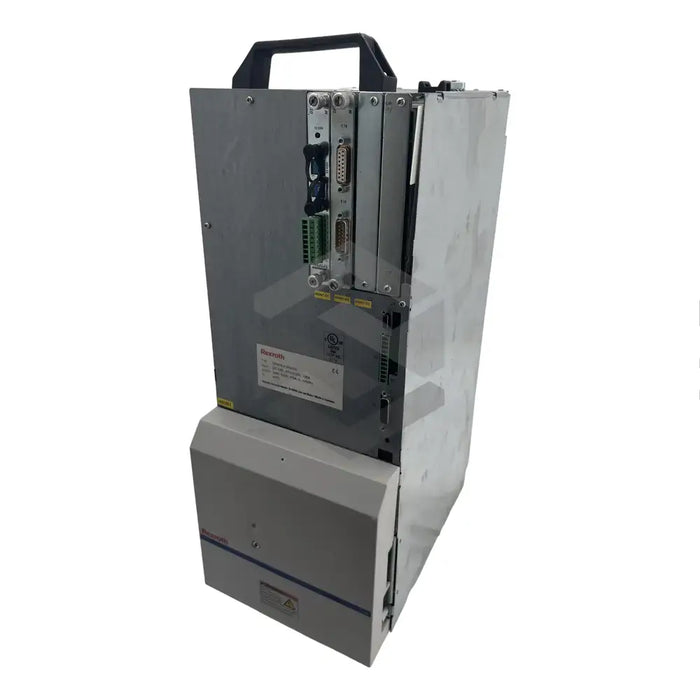

product Main (Front Left) image of HDS05.2-W300N-HS09-01-FW

HDS05.2-W300N-HS09-01-FW

by Bosch Rexroth Indramat
$10,357.68 - $10,357.68
$10,357.68
$10,357.68 - $10,357.68
$10,357.68
Available, Shipping Varies
The HDS05.2-W300N-HS09-01-FW, manufactured by Bosch Rexroth Indramat, is an efficient drive controller in the HDS05.2 series. Designed for robotics, handling machines, textile, packaging machines, and machine tools applications, it can operate as a main or servo drive controller. This model specifically supports activation for two motors and is configured to work seamlessly with 2AD, 1MB, MKD, and MHD motors as well as HVR or HVE supply modules. The advanced design enables the HDS05.2-W300N-HS09-01-FW to intelligently monitor and control electric motor operations. It utilises an air-cooling mechanism facilitated by a built-in blower. The SERCOS interface and a DSS02.1M plug-in module permit seamless command communication. This model's current ratings are 300A peak and rated. Rated for a temperature range of +5C - +45C, it can handle up to +55C with derated data. Designed to be installed in a control cabinet, it measures 25kg in weight and allows single or multiple-axis drive control configurations.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: HDS05.2-W300N-HS09-01-FW
  • Function: Main/Servo Drive Controller
  • Applications: Robotics, Handling Machines, Textile, Packaging Machine, Machine Tools
  • Integration: Synchronizes with HVR or HVE supply modules
  • Configuration: Fixed, suitable for activating two (2) motors
  • Accessories: Suitable for use with the manufacturer specified accessories
  • Cooling: Air-Cooling with built-in blower
  • Communication: SERCOS interface with DSS02.1M plug-in module
  • Rated Current/Peak Current: 300 Amperes
  • Weight: 25 kilograms
  • Switching Frequencies: At 4 kHz: 175 Amperes, At 8 kHz: 100 Amperes
  • Power Loss at Continuous Current Rating: 1.2 kW
  • Environmental Temperature with Rated Data: +5 ≤ oC ≤ +45
  • Max Environmental Temperature with Derated Data: +55 oC
  • Transport and Storage Temperature: -30 ≤ oC ≤ +85
  • Installation Requirement: In a closed housing or control cabinet, as per EN 50175/1988
