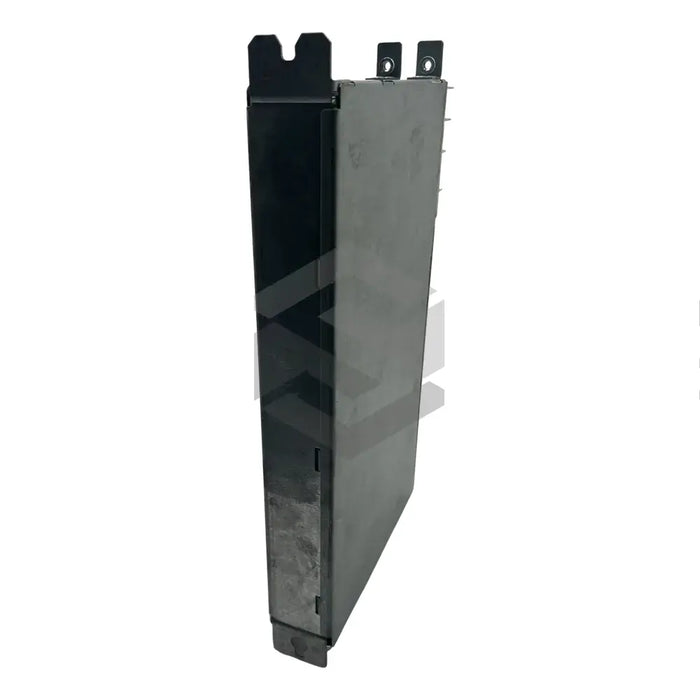

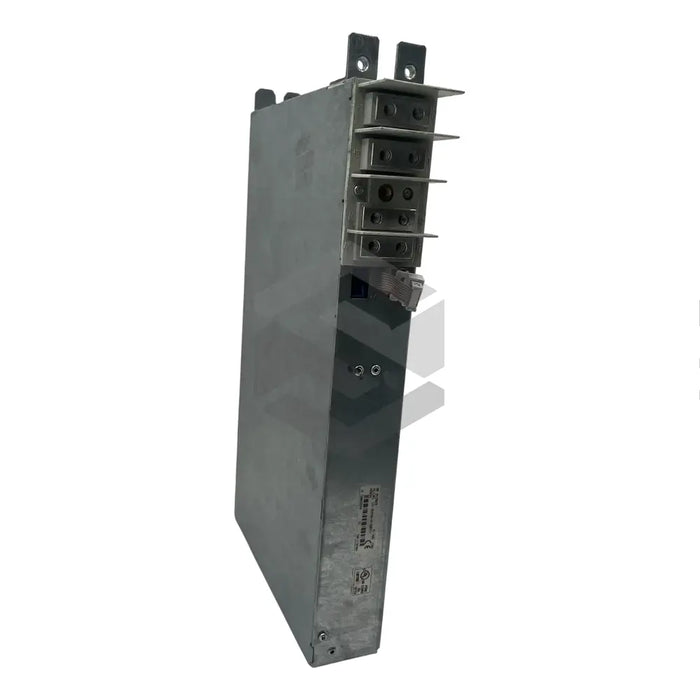

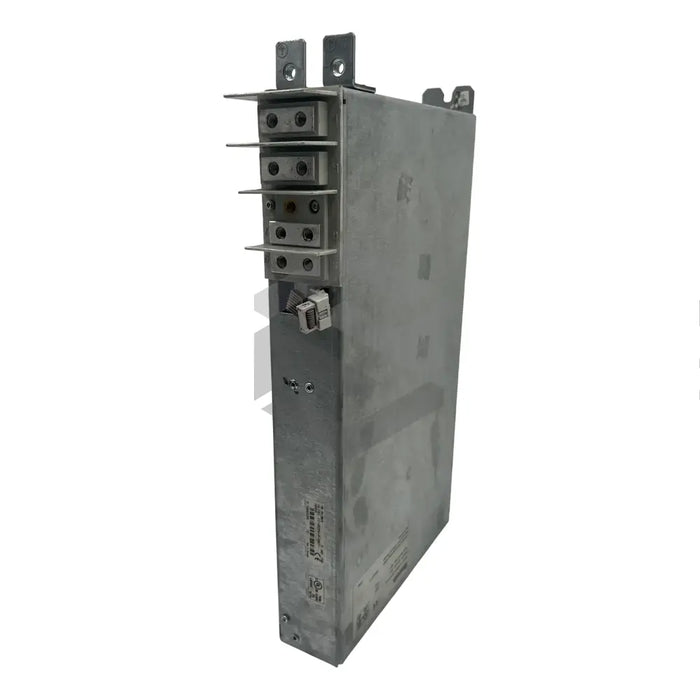

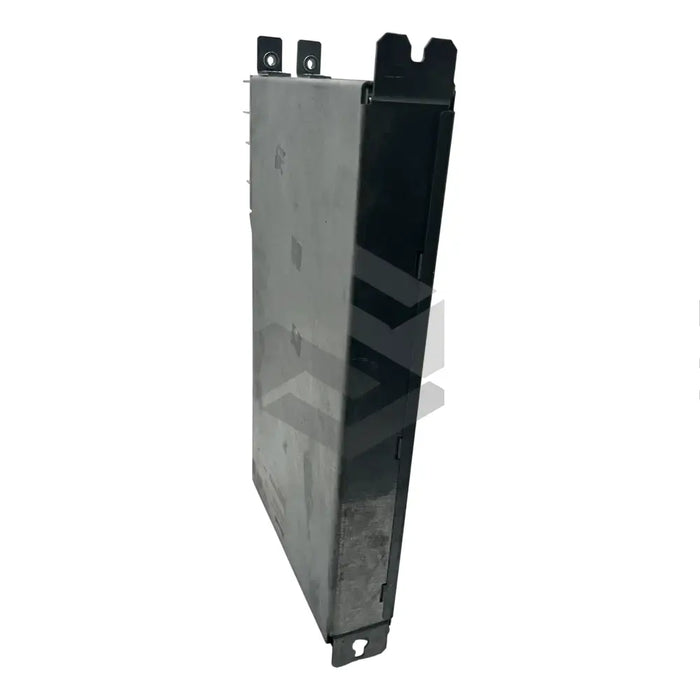

manufacturer image of HLC01.1C-02M4-A-007-NNNN

HLC01.1C-02M4-A-007-NNNN

by Bosch Rexroth Indramat
$2,352.05 - $2,352.05
$2,352.05
$2,352.05 - $2,352.05
$2,352.05
In Stock, Ships 1 - 2 Days
The HLC01.1C-02M4-A-007-NNNN, manufactured by Bosch Rexroth Indramat, is a DC capacitor and part of the IndraDrive drive systems. It has an input voltage of 245 – 750 DC V and a 2.4mF nominal DC bus capacitance, with an insulation resistance exceeding 25MOhm. Cooling is achieved through natural convection while power dissipation stands at 24W. It functions optimally at an ambient temperature of 55 degrees. Incorporated within the design is an X1 Bus module that permits the transfer of data between components as part of a looped configuration. This DC capacitor must be fitted adjacent to the drive controller if it outputs the highest DC continuous power. Its weight is approximately 4.3kg, offering a 700V DC bus nominal voltage within an IP 20 protection category. It is designed primarily for less frequent industrial use, with a recommended rate of under 30 cycles per minute.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: HLC01.1C-02M4-A-007-NNNN
  • Product Type: DC Capacitor
  • Input Voltage: 245 – 750 DC V
  • Nominal DC Bus Capacitance: 2.4mF
  • Discharge Time: 200S from 820V to 50V
  • Insulation Resistance: >25MOhm
  • Cooling Method: Natural Convection
  • Power Dissipation: 24W
  • Operating Temperature: 55 degrees
  • Auxiliary Module: X1 Bus
  • Weight: 4.3kg
  • Mounting Clearance Requirement: 80mm
  • DC Bus Nominal Voltage: 700V
  • Protection Category: IP 20
  • Mounting Depth: 300mm
  • Cycles Per Minute: Less than 30
